170-SU - Cub Cadet Engine 170-SU Carburetor Parts Diagram

Engine

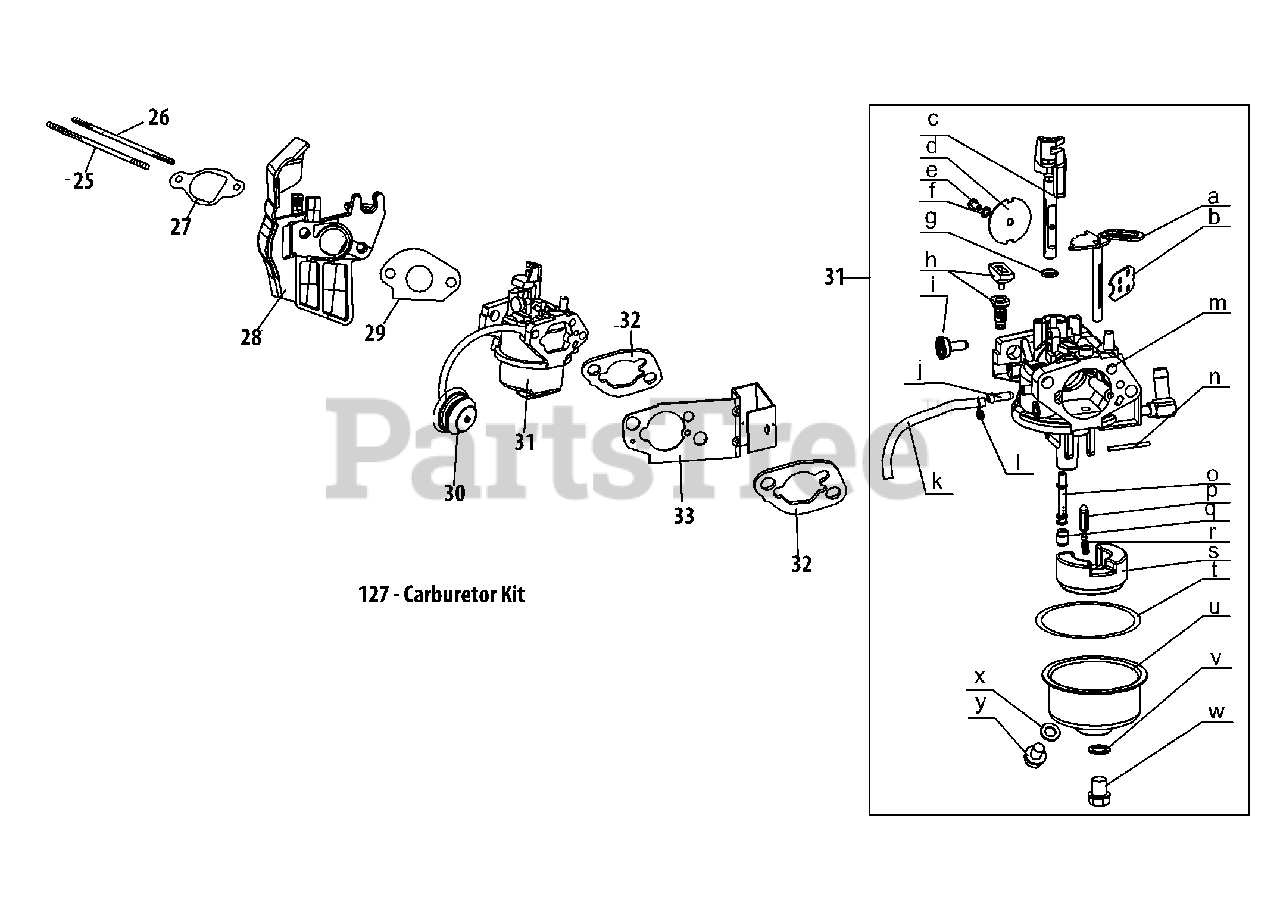

170-SU Carburetor Parts Diagram

  • Title

25

Cub Cadet 710-04939

Stud M6×117

$6.99

$

In Stock, only 2 left!

0

26

Cub Cadet 710-04910

Stud M6×105

$6.49

$

In Stock, Qty 8

0

27

Cub Cadet 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

28

Cub Cadet 951-11896

Carburetor Insulator
(Superseded to 951-11896A)

$11.99

$

In Stock, Qty 6

0

29

Cub Cadet 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

30

Cub Cadet 951-10639A

Primer Assembly

$15.99

$

In Stock, Qty 20+

0

30

Cub Cadet 951-11824

Primer Bulb

$11.99

$

In Stock, only 2 left!

0

31

Cub Cadet 951-14026A

Carburetor Assembly (Hy-170Sa)

$110.99

$

In Stock, Qty 20+

0

31

Cub Cadet 951-14027A

Carburetor Assembly (Dn-170Sa)

$118.99

$

In Stock, Qty 19

0

32

Cub Cadet 951-11897

Carburetor Gasket Plate
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

33

Cub Cadet 951-11112

Choke Control

$25.99

$

In Stock, only 4 left!

0

127

Cub Cadet 951-12788A

Carburetor Kit - Huayi

Note: (Incl. h,n,o,p,q,r,s,t,u,x)

$54.99

$

In Stock, Qty 7

0

127

Cub Cadet 951-14154

Carburetor Kit - Deni

Note: (Incl. h,n,o,p,q,r,s,t,u,x)

$58.99

$

In Stock, only 3 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Throttle Plate

$

$

Not available

e

Cub Cadet 710-05469

Screw M3×6

$4.49

$

Usually ships in 3-6 days

0

f

Cub Cadet 736-04638

Lock Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

Gasket, Throttle Plate

$

$

Not available

h

Idle Jet Assembly

$

$

Not available

i

Idle Speed Adjusting Screw

$

$

Not available

j

Cub Cadet 951-11699

Mixture Screw
(Superseded to 951-11699A)

$6.99

$

In Stock, Qty 10

0

k

Cub Cadet 951-11906

Primer Hose

$3.99

$

In Stock, Qty 5

0

l

Hose Clamp

$

$

Not available

m

Carburetor Body

$

$

Not available

n

Float Pin

$

$

Not available

o

Emulsion Tube

$

$

Not available

p

Needle Valve

$

$

Not available

q

Main Jet

$

$

Not available

r

Needle Valve Spring

$

$

Not available

s

Cub Cadet 951-11589

Float
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

t

Fuel Bowl Gasket

$

$

Not available

u

Cub Cadet 951-11348

Fuel Bowl
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

v

Cub Cadet 710-04938

Fuel Bowl Gasket

$4.49

$

In Stock, Qty 10

0

w

Cub Cadet 951-11349

Fuel Bowl Mounting Bolt
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

Cub Cadet 710-04945

Fuel Drain Plug Gasket

$4.49

$

In Stock, Qty 13

0

y

Fuel Drain Plug

$

$

Not available
