170-PU - Troy-Bilt Engine 170-PU Fuel Tank & Mounting Parts Diagram

Engine

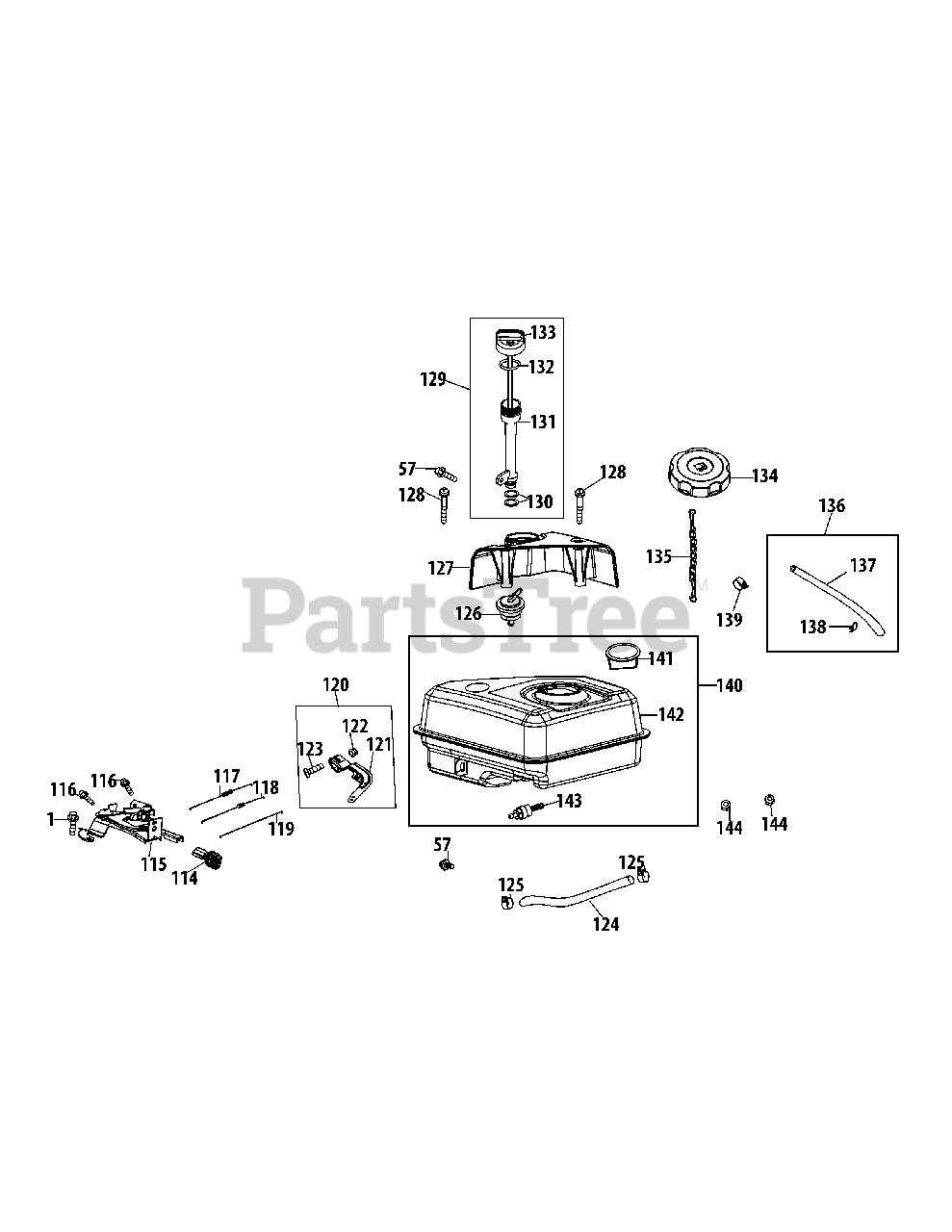

170-PU Fuel Tank & Mounting Parts Diagram

  • Title
1

Troy-Bilt 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

57

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

114

Troy-Bilt 951-11067

Throttle Control Knob

$3.99

$

Usually ships in 3-6 days

0

115

Troy-Bilt 908-05025

Primer Bracket

$15.99

$

Usually ships in 3-6 days

0

116

Troy-Bilt 710-05103

Bolt M6×12

$4.49

$

In Stock, only 2 left!

0

117

Troy-Bilt 951-11585

Governor Spring

$7.49

$

In Stock, Qty 7

0

118

Troy-Bilt 951-10664

Throttle Linkage Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

119

Troy-Bilt 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

120

Troy-Bilt 951-14089

Governor Lever

$7.99

$

Usually ships in 3-6 days

0

121

Troy-Bilt 951-11106

Governor Arm

$7.99

$

Usually ships in 3-6 days

0

122

$6.99

$

In Stock, Qty 6

0

123

Troy-Bilt 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

124

$28.99

$

In Stock, only 2 left!

0

125

Troy-Bilt 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

126

Troy-Bilt 951-14075A

Roll Over Valve

$28.99

$

In Stock, Qty 13

0

127

Troy-Bilt 951-11914

Dipstick Decoration Cover

$14.99

$

In Stock, Qty 7

0

$4.49

$

Usually ships in 3-6 days

0

129

Troy-Bilt 631-05020AP

Dipstick Assembly

$34.99

$

In Stock, only 1 left!

0

130

Troy-Bilt 951-11381

Oil Fill Tube O-Ring

$5.49

$

In Stock, Qty 10

0

131

Troy-Bilt 631-05020AP

Oil Fill Tube

$34.99

$

In Stock, only 1 left!

0

132

Troy-Bilt 921-04663

O-Ring 21×2.77
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

133

$34.99

$

In Stock, only 1 left!

0

134

$23.99

$

In Stock, Qty 12

0

135

Troy-Bilt 951-14076

Fuel Cap Chain

$8.99

$

Usually ships in 3-6 days

0

136

Troy-Bilt 951-14133

Evap Hose Kit

$4.99

$

In Stock, only 3 left!

0

137

Troy-Bilt 951-14133

Evap House

$4.99

$

In Stock, only 3 left!

0

138

Troy-Bilt 951-14133

Evap House Clamp

$4.99

$

In Stock, only 3 left!

0

139

Troy-Bilt 951-14131

Clamp, Fuel Hose

$5.49

$

Usually ships in 3-6 days

0

140

$138.99

$

In Stock, only 2 left!

0

141

Troy-Bilt 951-11933

Fuel Filter

$9.99

$

Usually ships in 3-6 days

0

142

Troy-Bilt 951-14332

Fuel Tank Body

$138.99

$

In Stock, only 2 left!

0

143

Troy-Bilt 951-14965

Drain Pipe

$10.99

$

Usually ships in 3-6 days

0

144

$6.99

$

In Stock, Qty 6

0
