170-PU - Troy-Bilt Engine 170-PU Cylinder Head Parts Diagram

Engine

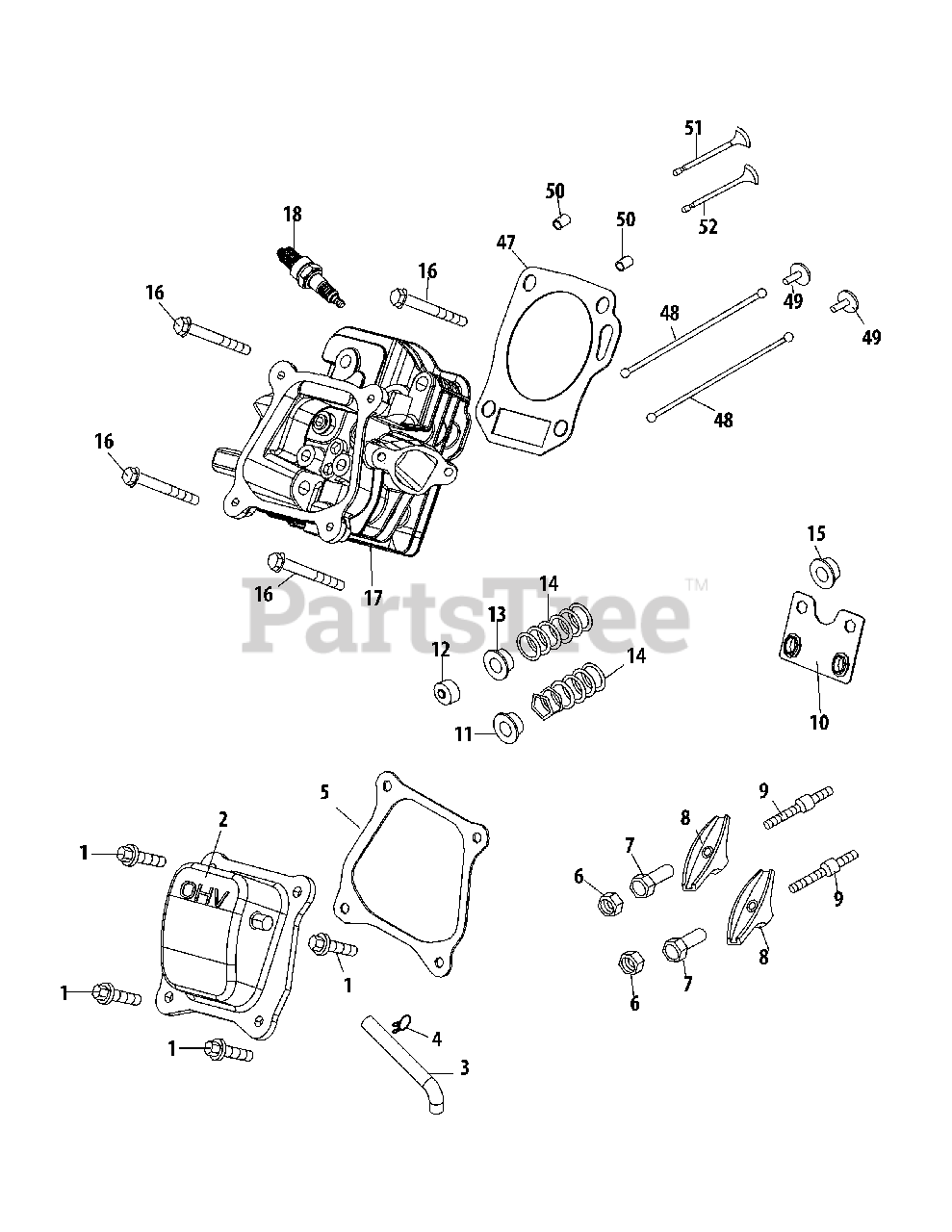

170-PU Cylinder Head Parts Diagram

  • Title
1

Troy-Bilt 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 951-11054B

Valve Cover

$15.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 931-09541

Exhaust Piping

$6.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 12

0

6

Troy-Bilt 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-04902

Bolt, Pivot

$6.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 951-12000

Valve Spring Retainer (Intake)

$4.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 951-12002

Exhaust Lash Cap
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 951-12003

Valve Spring Retainer (Exhaust)

$4.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

15

Troy-Bilt 951-11894

Valve Seal (Intake)

$10.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-06080

Bolt M8×55

$6.49

$

In Stock, only 1 left!

0

17

Cylinder Head

$

$

Not available

18

Troy-Bilt 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 951-14316

Gasket, Cylinder Head

$11.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 951-14105

Push Rod
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

$8.49

$

In Stock, only 4 left!

0

50

Troy-Bilt 951-04090

Dowel Pin 10×16

$3.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 951-14100

Exhaust Valve
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

52

Troy-Bilt 951-14099

Intake Valve
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0
