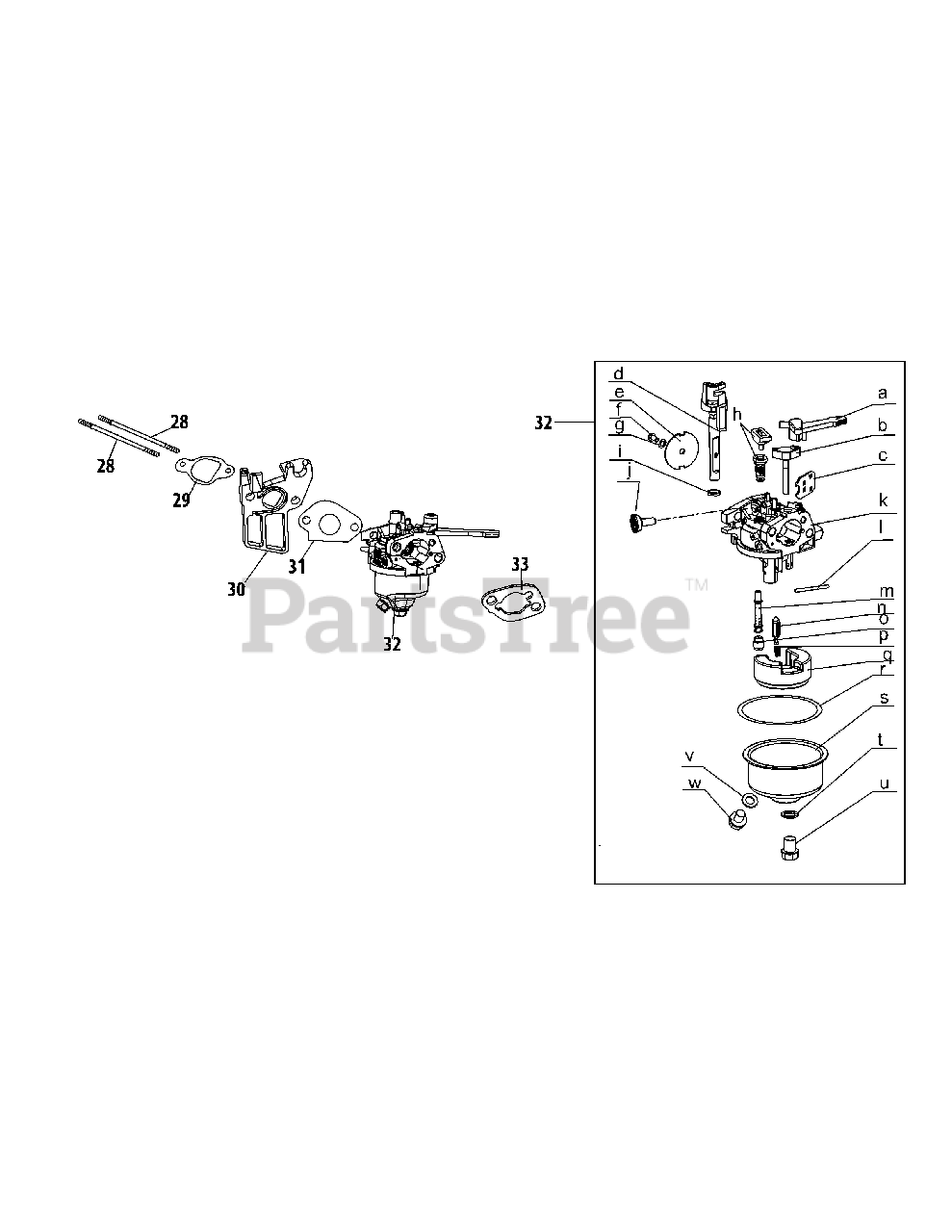

170-PU Carburetor Parts Diagram

  • Title

28

Troy-Bilt 710-05101

Stud M6×110

$4.49

$

In Stock, only 4 left!

0

29

Troy-Bilt 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 951-11568

Carburetor Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 13

0

31

Troy-Bilt 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 651-05279

Carburetor Assembly
(Superseded to 951-05279)

$103.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 951-11571

Carburetor Gasket Plate

$5.99

$

In Stock, Qty 20+

0

a

Troy-Bilt 951-12810

Control Lever,Choke
(Superseded to 951-12811)

$11.99

$

In Stock, only 1 left!

0

b

Choke Shaft

$

$

Not available

c

Choke Plate

$

$

Not available

d

Throttle Shaft

$

$

Not available

e

Throttle Plate

$

$

Not available

f

Screw M3×6

$

$

Not available

g

Washer 3

$

$

Not available

h

Idle Jet Assembly

$

$

Not available

i

Gasket, Throttle Plate

$

$

Not available

j

Idle Speed Adjusting Screw

$

$

Not available

k

Carburetor Body

$

$

Not available

l

Float Pin

$

$

Not available

m

Emulsion Tube

$

$

Not available

n

Needle Valve

$

$

Not available

o

Main Jet

$

$

Not available

p

Needle Valve Spring

$

$

Not available

q

Float

$

$

Not available

r

Fuel Bowl Gasket

$

$

Not available

s

Troy-Bilt 908-05000

Fuel Bowl

$

$

Not available

t

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

u

Fuel Bowl Mounting Bolt

$

$

Not available

v

Fuel Drain Plug Gasket

$

$

Not available

w

Fuel Drain Plug

$

$

Not available
