170-PU - MTD Engine 170-PU Crankcase Parts Diagram

Engine

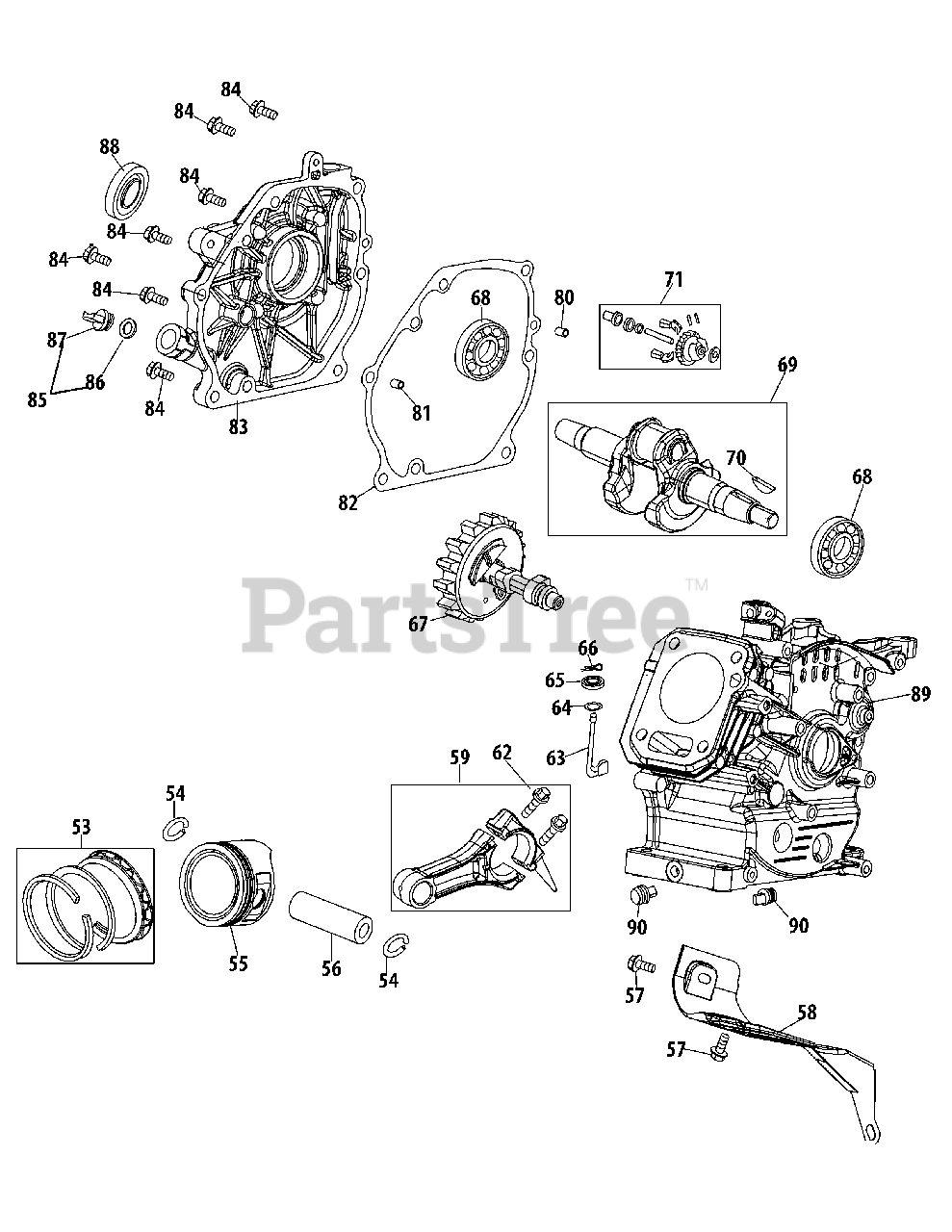

170-PU Crankcase Parts Diagram

  • Title

53

MTD 951-14317

Piston Pin Set
(Superseded to 951-14317A)

$27.99

$

In Stock, only 1 left!

0

54

MTD 951-11632

Piston Pin Snap Ring

$4.49

$

In Stock, only 1 left!

0

55

MTD 951-14318

Piston

$43.99

$

Usually ships in 3-6 days

0

56

MTD 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

57

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0

58

MTD 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

59

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, only 1 left!

0

62

MTD 710-05116

Connecting Rod Bolt

$4.99

$

Usually ships in 3-6 days

0

63

MTD 951-14053

Governor Arm

$15.99

$

Usually ships in 3-6 days

0

64

MTD 736-04461

Washer 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

65

MTD 951-11574

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

66

MTD 714-04074

Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

67

MTD 951-11575A

Camshaft Assembly

$65.99

$

Usually ships in 3-6 days

0

68

MTD 951-11369

Radial Ball Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

69

MTD 751-14960

Crankshaft Assembly
(Superseded to 951-14960)

$132.99

$

Usually ships in 3-6 days

0

70

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

71

MTD 751-15004

Governor Gear Assembly
(Superseded to 951-15004)

$9.49

$

Usually ships in 3-6 days

0

80

MTD 715-04096

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

81

MTD 715-04089

Dowel Pin 9×14

$3.99

$

Usually ships in 3-6 days

0

82

MTD 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

$3.99

$

In Stock, only 4 left!

0

83

MTD 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

84

MTD 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

85

MTD 951-05020A

Dipstick Assembly
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

86

MTD 951-11577

O-Ring 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

87

MTD 951-12394

Oil Plug

$5.49

$

Usually ships in 3-6 days

0

88

MTD 951-11578

Oil Seal, 25×41.25×6

$14.99

$

Usually ships in 3-6 days

0

89

MTD 751-14119

Crankcase
(Superseded to 951-14119)

$176.99

$

Usually ships in 3-6 days

0

90

MTD 951-12514A

Oil Drain Plug

$6.49

$

Usually ships in 3-6 days

0
