170-NU - MTD 280cc Engine 170-NU Crankcase Parts Diagram

280cc Engine

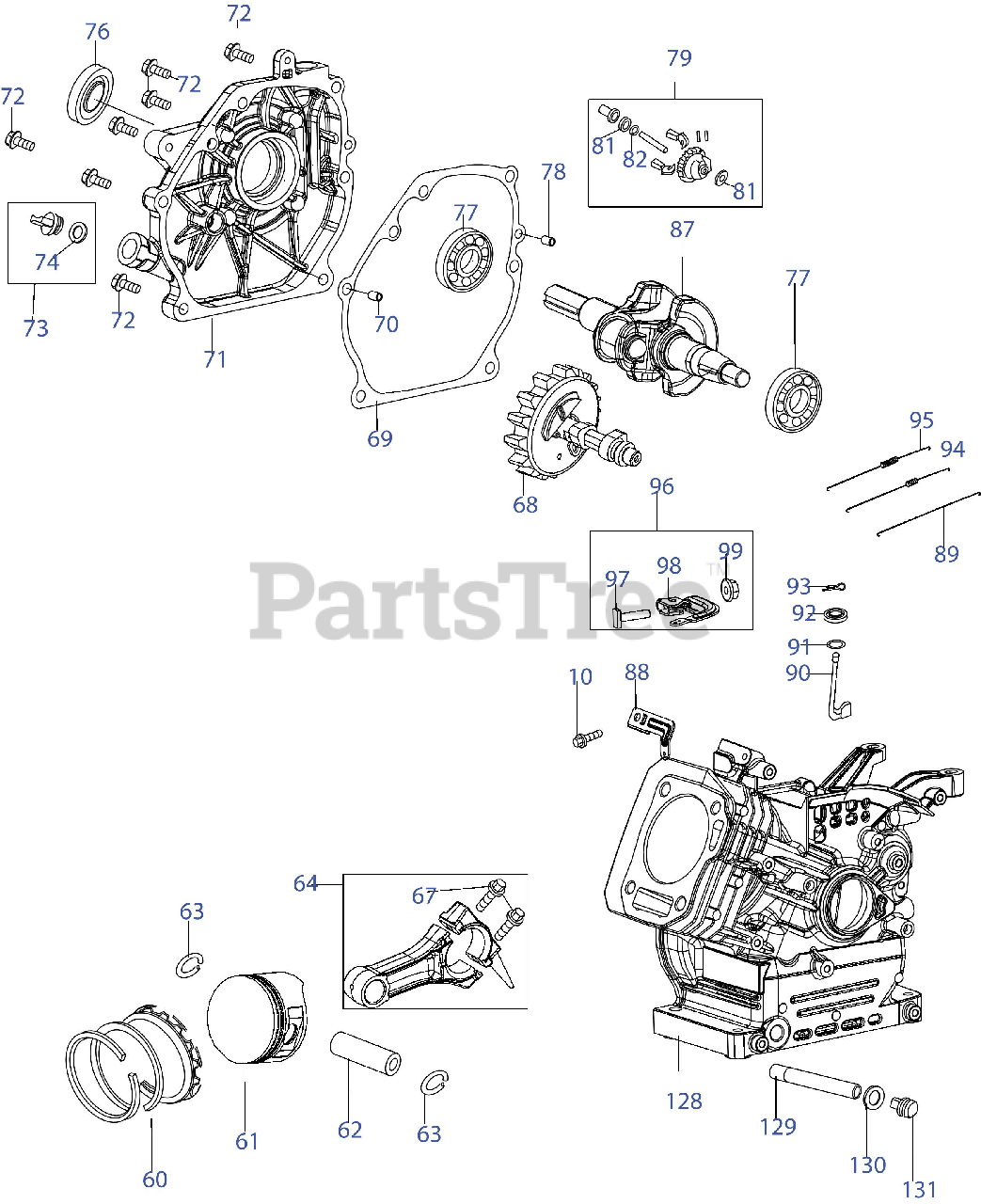

170-NU Crankcase Parts Diagram

  • Title

10

MTD 710-04915

Bolt M6x12

$4.49

$

In Stock, only 3 left!

0

60

MTD 951-14317

Piston Ring Set
(Superseded to 951-14317A)

$27.99

$

In Stock, only 1 left!

0

61

MTD 951-15052

Piston

$41.99

$

Usually ships in 3-6 days

0

62

MTD 951-11633

Wrist Pin

$7.99

$

Usually ships in 3-6 days

0

63

MTD 951-11632

Circlip

$4.49

$

In Stock, only 1 left!

0

64

MTD 951-11573

Connecting Rod
(Superseded to 751P11573A)

$10.99

$

In Stock, only 1 left!

0

67

MTD 710-05116

Connecting Rod Bolt

$4.99

$

Usually ships in 3-6 days

0

68

MTD 951-15054

Camshaft

$58.99

$

Usually ships in 3-6 days

0

69

MTD 951-11371

Gasket, Crankcase Cover
(Superseded to 951-11371A)

$3.99

$

In Stock, only 4 left!

0

70

MTD 715-04089

Dowel Pin 9x14

$3.99

$

Usually ships in 3-6 days

0

71

MTD 951-15057

Crankcase Cover

$89.99

$

Usually ships in 3-6 days

0

72

MTD 710-04932

Bolt M8x32

$4.49

$

Usually ships in 3-6 days

0

73

MTD 951-05020A

Oil Plug
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

74

MTD 951-11577

O-Ring 15.8x2.5

$4.49

$

Usually ships in 3-6 days

0

76

MTD 951-11368

Oil Seal 25x41.25x6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 13

0

77

MTD 951-15055

Bearing Tm6205/P63

$17.99

$

Usually ships in 3-6 days

0

78

MTD 715-04096

Dowel Pin 7x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

79

MTD 951-05292

Gear Governor

$15.99

$

In Stock, only 1 left!

0

81

MTD 936-05038

Washer 6.2x0.6x15

$4.99

$

In Stock, only 2 left!

0

82

MTD 916-05003

Retaining Rings, Governor Shaft

$5.99

$

In Stock, only 1 left!

0

87

MTD 951-15056

Crankshaft

$143.99

$

Usually ships in 3-6 days

0

88

MTD 951-11104

Spring Bracket

$3.99

$

Usually ships in 3-6 days

0

89

MTD 951-10665

Rod Governor
(Superseded to 751P10665A)

$1.99

$

In Stock, only 1 left!

0

90

MTD 951-15053

Shaft,Governor Arm

$9.49

$

Usually ships in 3-6 days

0

91

MTD 736-04461

O-Ring 5.2x1.9

$3.99

$

Usually ships in 3-6 days

0

92

MTD 951-11902

Oil Seal 6x11x4
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

93

MTD 714-04074

Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

94

MTD 951-10954

Idle Spring

$6.49

$

In Stock, only 2 left!

0

95

MTD 951-15035

Governor Spring

$11.99

$

Usually ships in 3-6 days

0

96

MTD 951-14089

Governor Lever

$7.99

$

Usually ships in 3-6 days

0

97

MTD 710-04908

Bolt M6x21

$6.49

$

Usually ships in 3-6 days

0

98

MTD 951-11106

Governor Lever

$7.99

$

Usually ships in 3-6 days

0

99

MTD 712-05015

Flange Nut M6

$6.99

$

In Stock, Qty 6

0

128

MTD 951-15058

Crankcase

$164.99

$

Usually ships in 3-6 days

0

129

MTD 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

130

MTD 736-04440

Washer 10x1.5x16
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

131

MTD 951-11499

Washer,Drain Bolt(M10x1.25x15)
(Superseded to 951-11499A)

$13.99

$

In Stock, only 2 left!

0

MTD 952Z170-NU

Complete Engine

$707.99

$

Usually ships in 3-6 days
