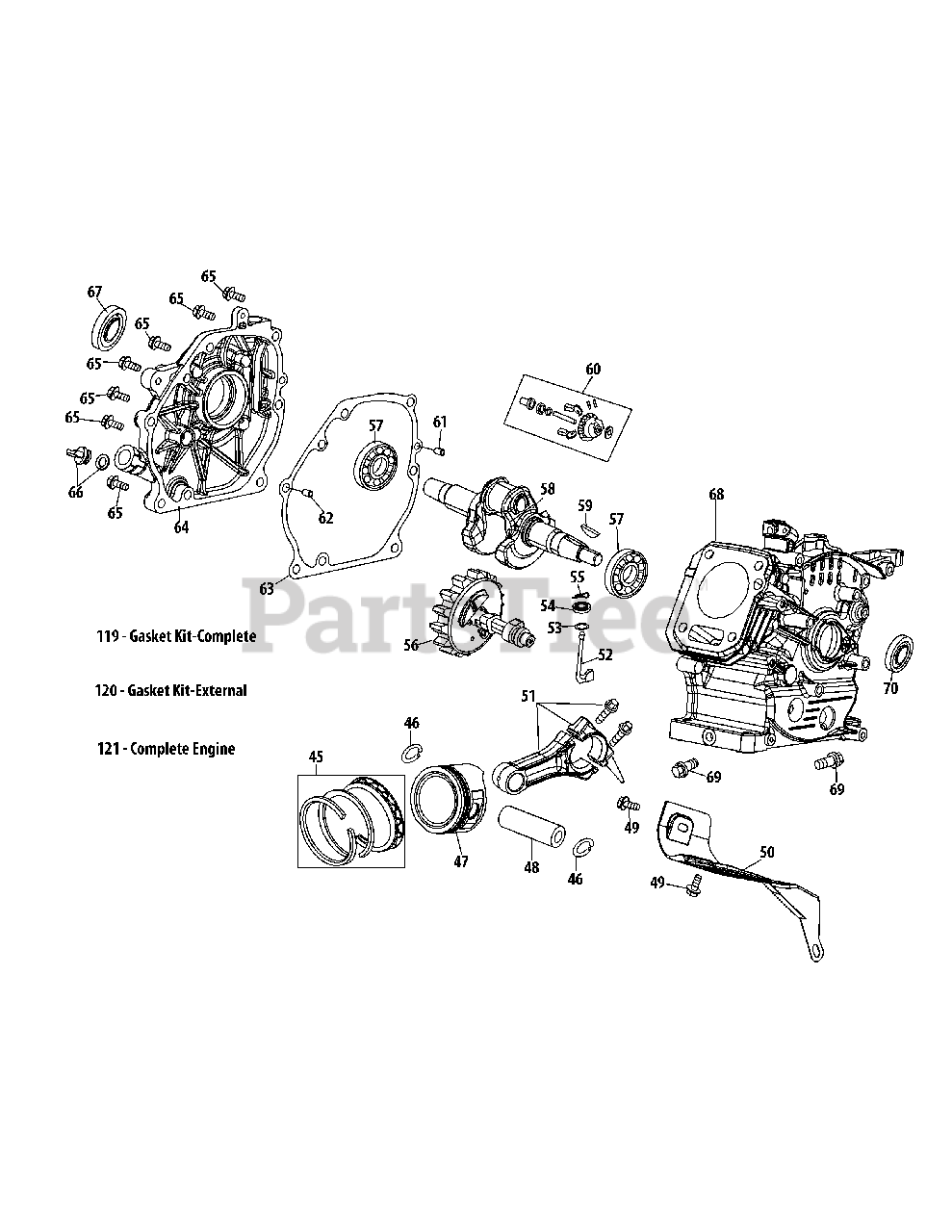

170-LU Crankcase Parts Diagram

  • Title

45

MTD 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.99

$

In Stock, only 2 left!

0

46

MTD 951-11632

Piston Pin Snap Ring

$4.49

$

In Stock, only 1 left!

0

47

MTD 951-12007

Piston

$35.99

$

Usually ships in 3-6 days

0

48

MTD 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

49

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0

50

MTD 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

51

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, only 1 left!

0

52

MTD 951-14053

Governor Arm

$15.99

$

Usually ships in 3-6 days

0

53

MTD 736-04461

Washer - 5.2 X 1.9

$3.99

$

Usually ships in 3-6 days

0

54

MTD 951-11902

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

55

MTD 714-04078

Cotter Pin

$4.49

$

In Stock, only 1 left!

0

56

MTD 951-11575

Camshaft Assembly

$65.99

$

Usually ships in 3-6 days

0

57

MTD 951-11369

Radial Ball Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

58

MTD 951-14143

Crankshaft Kit

Note: (Incl.57-59,67 & 70)

$153.99

$

Usually ships in 3-6 days

0

59

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

60

MTD 951-11576

Governor Gear/Shaft Assembly
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

61

MTD 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

62

MTD 715-04096

Dowel Pin 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

63

MTD 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

$3.99

$

In Stock, only 4 left!

0

64

MTD 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

64

MTD 951-14142

Crankcase Cover Kit
(Superseded to 951-14142A)

Note: (Incl.57,63-66, & 70)

$80.99

$

Usually ships in 3-6 days

0

65

MTD 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

66

MTD 951-11283

Oil Fill Plug Assembly

$6.99

$

In Stock, only 1 left!

0

66

MTD 951-11577

O-Ring

$4.49

$

Usually ships in 3-6 days

0

67

MTD 951-12126

Oil Seal

$14.99

$

Usually ships in 3-6 days

0

68

MTD 951-14144

Crankcase Service Kit

Note: (Incl.54,57,67-70)

$198.99

$

Usually ships in 3-6 days

0

68

MTD 951-12551

Short Block Assembly
(Superseded to 951-05031)

Note: (Incl.4,20,25-27,39,42,45-48,51-70)

$436.99

$

Usually ships in 3-6 days

0

69

MTD 951-12514

Oil Drain Plug
(Superseded to 951-12514A)

$6.49

$

Usually ships in 3-6 days

0

70

MTD 951-11578

Oil Seal

$14.99

$

Usually ships in 3-6 days

0

119

MTD 951-12572

Gasket Kit-Complete

Note: (Incl.4,20,25-27,29,39,53,56,63,67,70)

$66.99

$

Usually ships in 3-6 days

0

120

MTD 951-12026A

Gasket Kit-External

Note: (Incl.4,20,52-27,29)

$31.99

$

Usually ships in 3-6 days

0

121

MTD 952Z170-LU

Complete Engine
(Superseded to 952Z170-DU)

$675.99

$

Usually ships in 3-6 days
