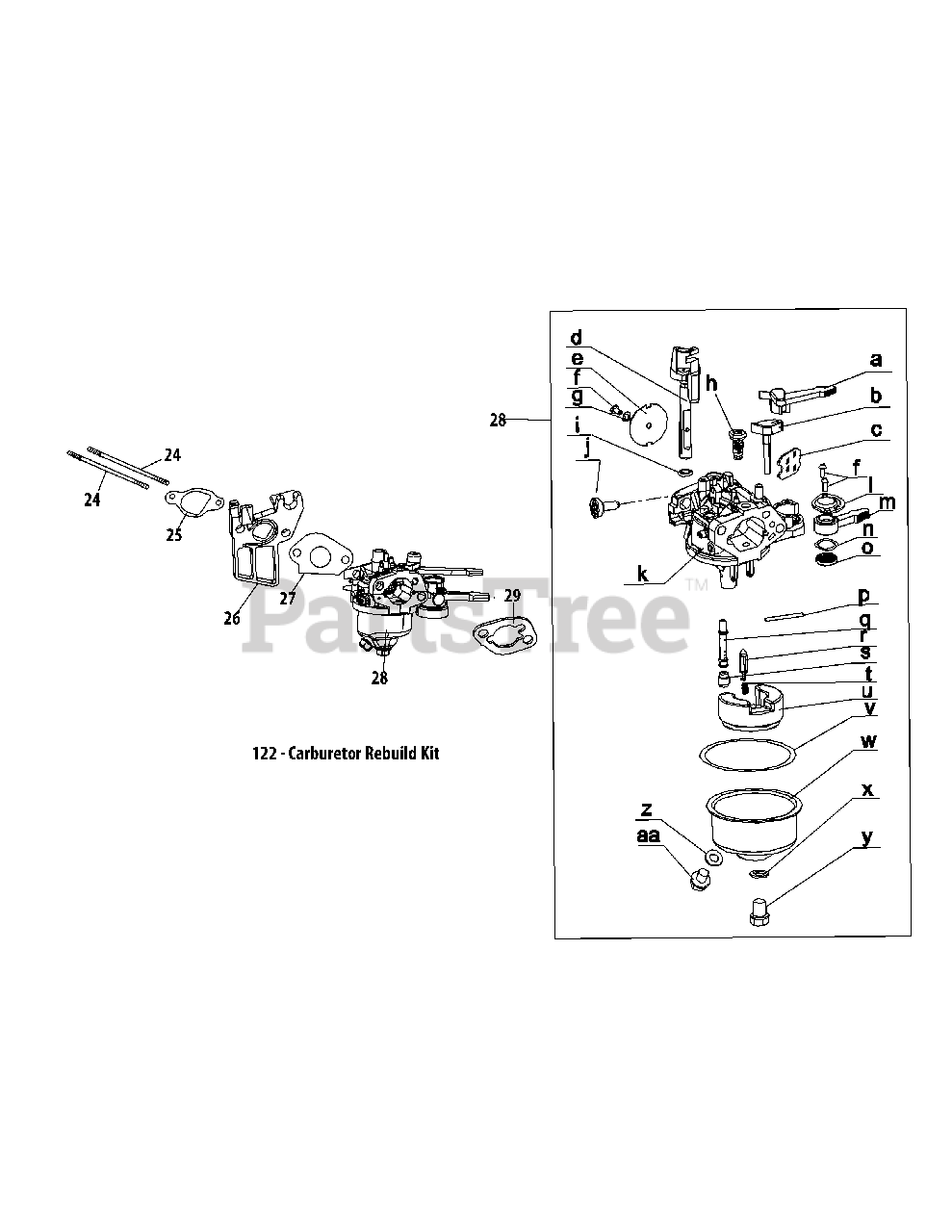

170-LU Carburetor Parts Diagram

  • Title
24

Cub Cadet 710-05101

Carburetor Stud Bolt

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

26

Cub Cadet 951-11568

Carburetor Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 19

0

27

Cub Cadet 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

28

Cub Cadet 951-12552

Carburetor Assembly

$110.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 951-11571

Carburetor Gasket Plate

$5.99

$

In Stock, Qty 20+

0

122

Cub Cadet 951-12787

Carburetor Rebuild Kit

Note: (Incl.h,p,q,r,s,t,u,v,x,z)

$58.99

$

Usually ships in 3-6 days

0

a

Cub Cadet 951-11177

Control Lever,Choke
(Superseded to 951-12515)

$11.99

$

In Stock, only 1 left!

0

b

Choke Shaft

$

$

Not available

c

Choke Plate

$

$

Not available

d

Throttle Shaft

$

$

Not available

e

Throttle Plate

$

$

Not available

f

Cub Cadet 710-05469

Fuel Shutoff Lever Screw

$4.49

$

Usually ships in 3-6 days

0

g

Cub Cadet 736-04638

Choke Control Lever Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

h

Idle Jet Assembly

$

$

Not available

i

Gasket, Throttle Plate

$

$

Not available

j

Idle Speed Adjusting Screw

$

$

Not available

k

Carburetor Body

$

$

Not available

l

Fuel Shutoff Cover

$

$

Not available

m

Cub Cadet 951-12812

Fuel Shutoff Lever

$12.99

$

Usually ships in 3-6 days

0

n

Cub Cadet 736-04635

Fuel Shutoff Washer

$3.99

$

Usually ships in 3-6 days

0

o

Cub Cadet 951-12793

Fuel Shutoff Valve

$

$

Not available

p

Float Pin

$

$

Not available

q

Emulsion Tube

$

$

Not available

r

Cub Cadet 951-12875

Float Needle Valve

$

$

Not available

s

Main Jet

$

$

Not available

t

Needle Valve Spring

$

$

Not available

u

Float

$

$

Not available

v

Cub Cadet 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

w

Fuel Bowl

$

$

Not available

x

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 11

0

y

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 12

0

z

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

aa

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 8

0
