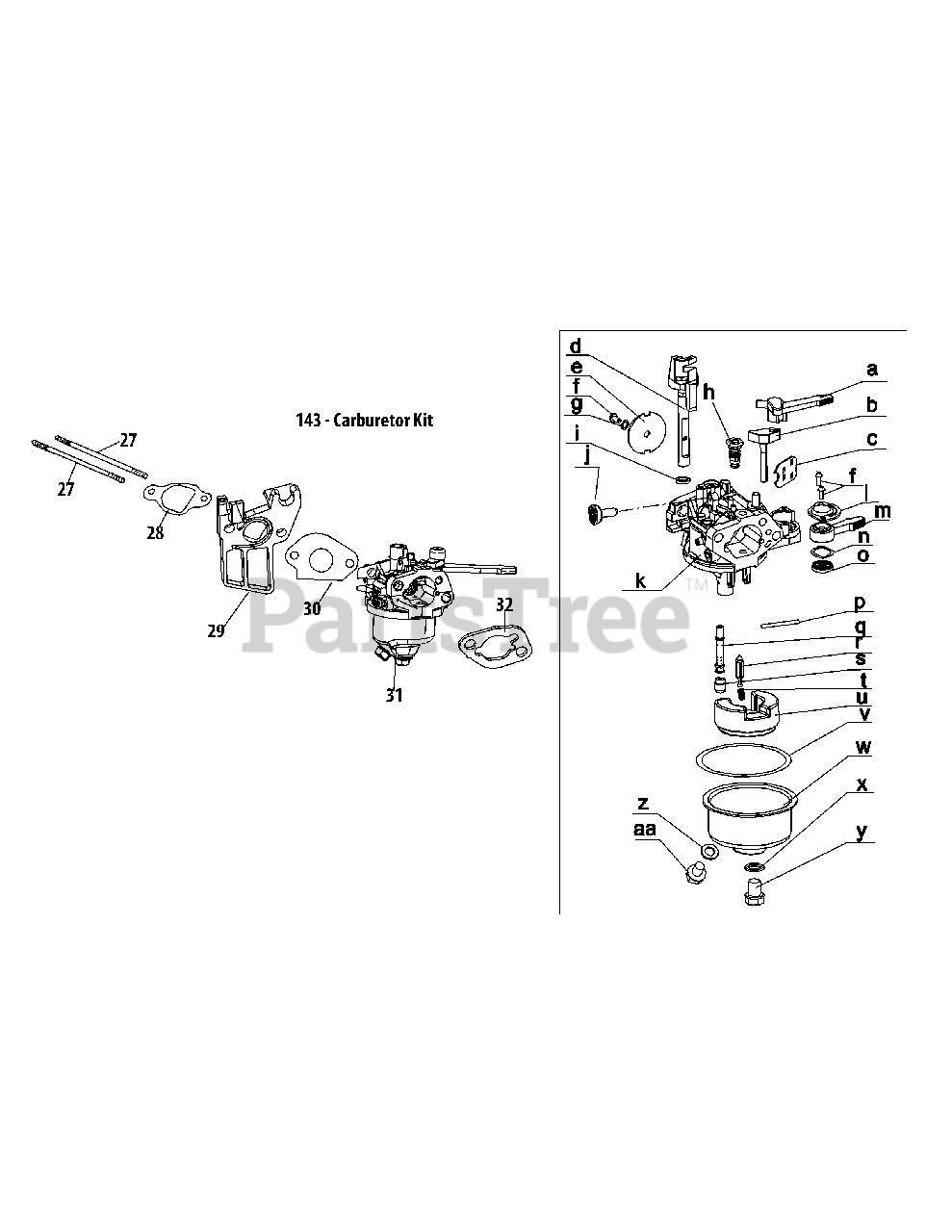

170-DU Carburetor Parts Diagram

  • Title
27

Cub Cadet 710-05101

Stud M6×110

$4.49

$

In Stock, Qty 6

0

28

Cub Cadet 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

29

Cub Cadet 951-11568

Carburetor Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, only 3 left!

0

30

Cub Cadet 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

31

Cub Cadet 651-05106

Carburetor Assembly
(Superseded to 951-05106)

$97.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 951-11571

Carburetor Gasket Plate

$5.99

$

In Stock, Qty 7

0

143

Cub Cadet 651-05107

Carburetor Kit Dn-170
(Superseded to 951-05107)

Note: (Incl.h,p,q,r,s,t,u,v,x,z)

$57.99

$

Usually ships in 3-6 days

0

a

Control Lever, Choke

$

$

Not available

b

Choke Shaft

$

$

Not available

c

Choke Plate

$

$

Not available

d

Throttle Shaft

$

$

Not available

e

Throttle Plate

$

$

Not available

f

Cub Cadet 710-05469

Screw M3×6

$4.49

$

Usually ships in 3-6 days

0

g

Cub Cadet 736-04638

Lock Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

h

Cub Cadet 793-00118

Idle Jet Assembly
(Superseded to 993-00118)

$7.99

$

Usually ships in 3-6 days

0

i

Gasket, Throttle Plate

$

$

Not available

j

Idle Speed Adjusting Screw

$

$

Not available

k

Carburetor Body

$

$

Not available

l

Fuel Shutoff Cover

$

$

Not available

m

Fuel Shutoff Lever

$

$

Not available

n

Fuel Shutoff Washer

$

$

Not available

o

Fuel Shutoff Valve

$

$

Not available

p

Float Pin

$

$

Not available

q

Emulsion Tube

$

$

Not available

r

Needle Valve

$

$

Not available

s

Main Jet

$

$

Not available

t

Needle Valve Spring

$

$

Not available

u

Float

$

$

Not available

v

Cub Cadet 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

w

Fuel Bowl

$

$

Not available

x

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, only 1 left!

0

y

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

z

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

aa

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 1 left!

0
