170 (170112) - Cub Cadet Walk-Behind Mower (1982) Chute Deflector and Mulching Baffle Assemblies Parts Diagram

Walk-Behind Mower

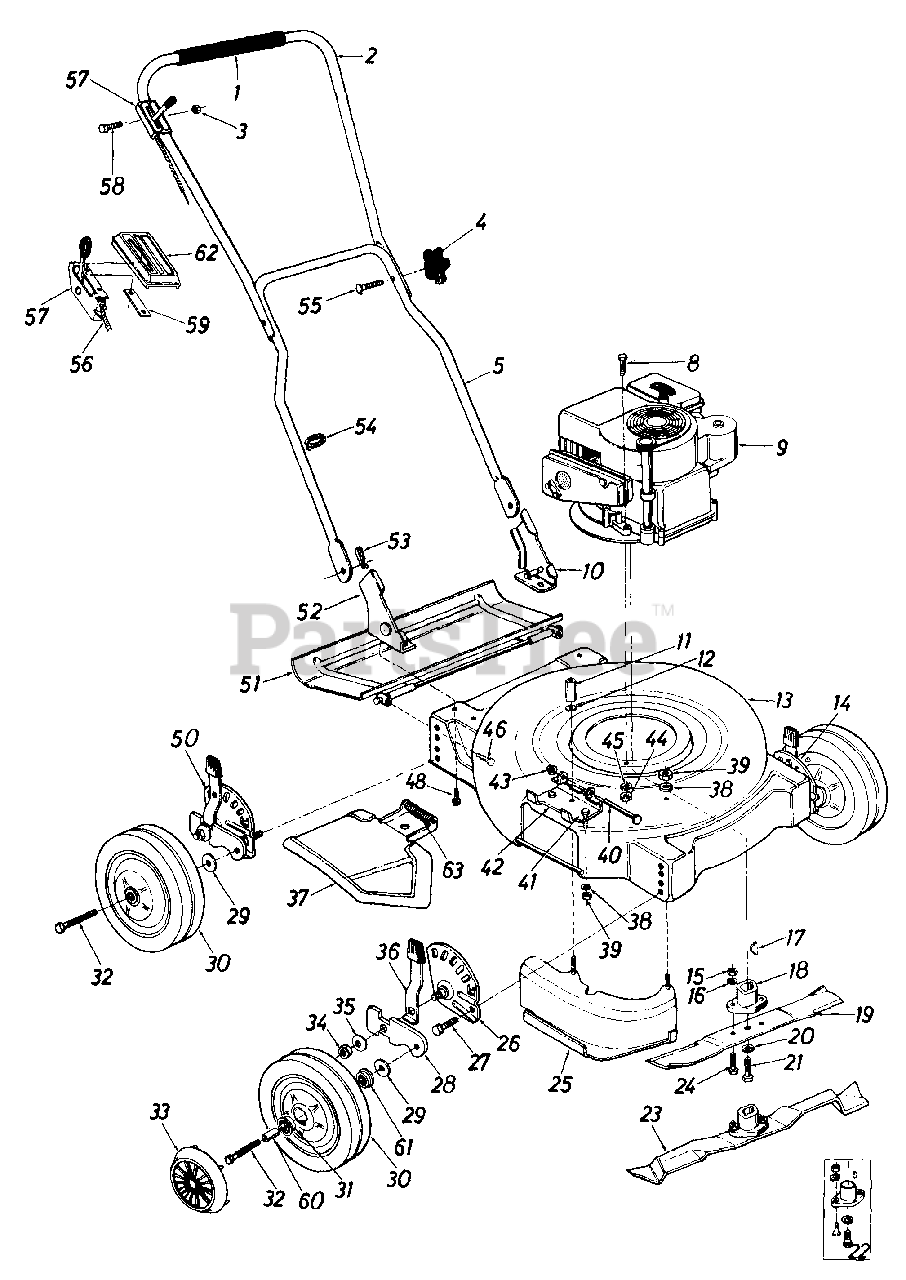

Chute Deflector and Mulching Baffle Assemblies Parts Diagram

  • Title

1

Cub Cadet 731-3026

Grip

$

$

Currently unavailable

2

Cub Cadet 749-0384

Upper Handle

$

$

Not available

3

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 720-3012

Hand Knob

$

$

Not available

5

Cub Cadet 749-0449

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0158

Hex Bolt 5/16-24 x 1.50" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

9

Engine

$

$

Not available

10

Cub Cadet 12945

Handle Mounting Brkt. - L.H.

$

$

Not available

11

Cub Cadet 711-0685

Hex Spacer Stop

$

$

Currently unavailable

12

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

Cub Cadet 13679

20" Deck Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

14

Cub Cadet 10941

Height Adj. Ass'y. w/Black Knob - L.H.

$

$

Not available

15

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

16

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32" x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

19

Cub Cadet 742-0123

20" Standard Blade

$

$

Not available

20

Cub Cadet 736-0217

H Spring L-Wash. for 3/8" Scr.

$4.49

$

In Stock, Qty 8

0

21

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

22

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

23

Cub Cadet 742-0213

20" Mulching Blade

$

$

Currently unavailable

24

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 13854

Mulching Baffle Ass'y.

$

$

Currently unavailable

26

Cub Cadet 10934

Index Plate Ass'y. - R.H.

$

$

Not available

27

Cub Cadet 710-0209

Hex Sems Scr. 3/8-16 x .62" Lg.

$

$

Not available

28

Cub Cadet 10937

Pivot Bar

$

$

Not available

29

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 734-0844

Wheel Ass'y. Comp. (Steel)

$

$

Not available

31

Cub Cadet 741-0484

Ball Bearing - 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

32

Cub Cadet 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

33

UNKNOWN

$

$

Not available

34

Cub Cadet 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

35

Cub Cadet 736-0219

Bell-Wash. .40 I.D. x 1.12 O.D. x .03
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 14082

Spring Lever Ass'y. w/Knob

$

$

Not available

37

Cub Cadet 11679

Chute Deflector Ass'y. Comp.

Note: Color Code - 499

$

$

Not available

38

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

39

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

40

Cub Cadet 711-0555

Pivot Pin

$

$

Not available

41

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

42

Cub Cadet 11130

Deflector Hinge Plate

Note: Color Code - 499

$

$

Not available

43

Cub Cadet 726-0106

Push Nut for 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

45

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 710-0567

Hex Sems Scr. 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

48

Cub Cadet 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50

$4.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 10938

Height Adj. Ass'y. w/Knob - R.H.

$

$

Not available

51

Cub Cadet 11193

Rear Shield Ass'y. Comp.

Note: Color Code - 499

$

$

Currently unavailable

52

Cub Cadet 12946

Handle Mtg. Brkt. Ass'y. - R.H.

$

$

Not available

53

Cub Cadet 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 726-0188

Cable Tie

$

$

Not available

55

Cub Cadet 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

56

Cub Cadet 746-0381

Conduit and Wire

$

$

Not available

57

Cub Cadet 746-0380

Throttle Control Ass'y. Comp.
(Superseded to 746-0800A)

$61.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0606

Hex Bolt 1/4-20 x 1.50" Lg.

$5.49

$

In Stock, Qty 10

0

59

Cub Cadet 726-0134

Speed Nut #8-32 Twin Type

$

$

Not available

60

Cub Cadet 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 741-0267

Ball Bearing - 3/8" I.D.

$

$

Not available

62

Cub Cadet 731-0344

Plastic Cover

$

$

Not available

63

Cub Cadet 732-0253

Torsion Spring

$

$

Not available

Cub Cadet 753-0213

Mulcher kit

$

$

Not available
