16Z (3071088) - Giant-Vac Z-Mounted Leaf Buster Blower, 16hp Housing & Mount Group Parts Diagram

Z-Mounted Leaf Buster Blower, 16hp

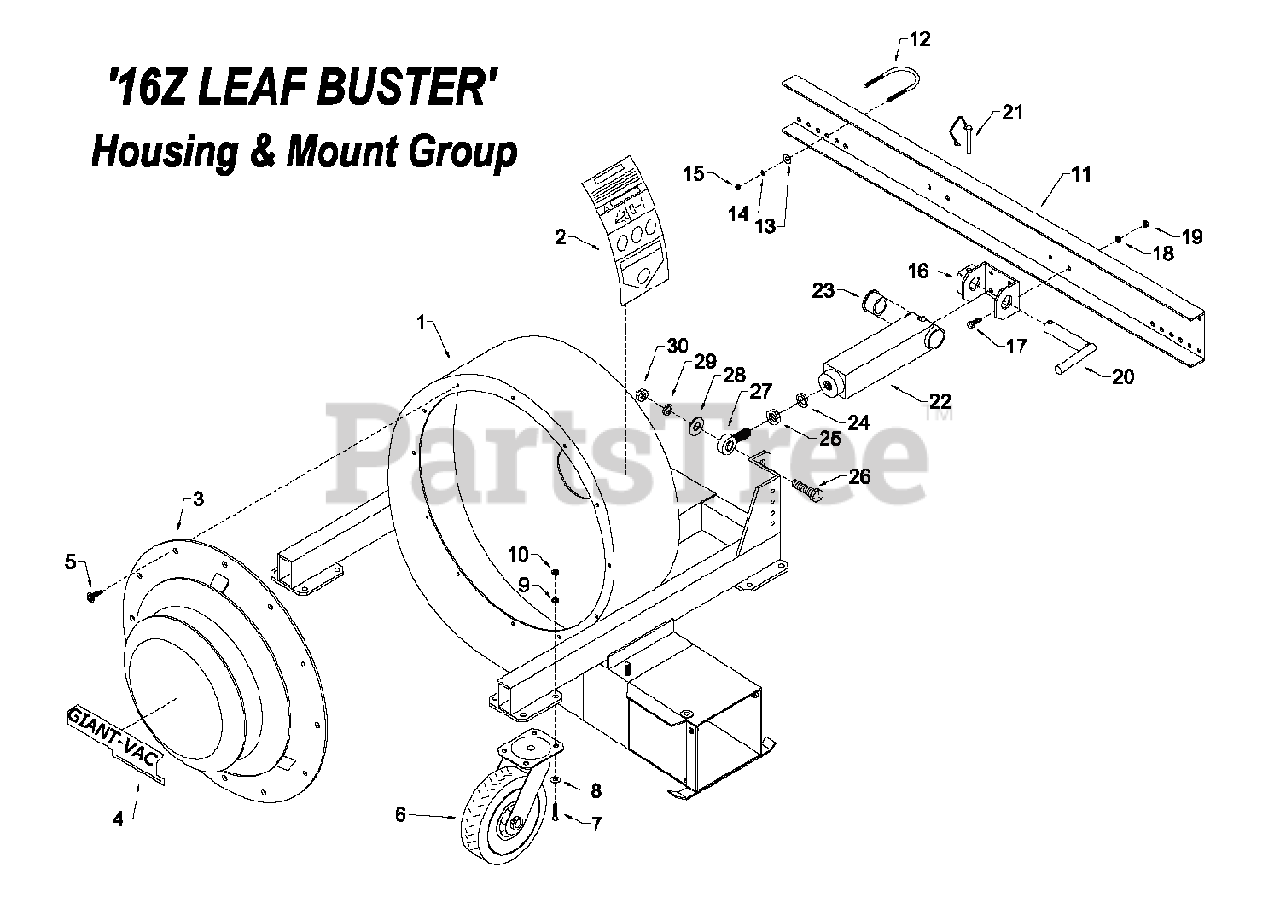

Housing & Mount Group Parts Diagram

  • Title

1

Giant-Vac 3010255

Base, housing & frame

$

$

Currently unavailable

2

Giant-Vac 3079099

Decal - Caution/Danger combo

$

$

Currently unavailable

3

Giant-Vac 3020229

Baffle, intake

$

$

Not available

4

Giant-Vac 3079174

Decal - 'Giant-Vac' - 9" White-on-black

$

$

Currently unavailable

5

Giant-Vac 3031660

Bolt, 'F' thread - 5/16-18 x 3/4"

$

$

Currently unavailable

6

Giant-Vac 3033278

Assy, caster wheel & tire

$

$

Currently unavailable

7

Giant-Vac 3031033

Bolt, hex head - 3/8-18 x 1"
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

8

Giant-Vac 3031034

Washer, flat - 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Giant-Vac 3031008

Washer, split lock - 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

10

Giant-Vac 3031009

Nut, hex finish - 3/8-16
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

11

Giant-Vac 3038047

Bumper, adjustable 2 pt hitch

$

$

Not available

12

Giant-Vac 3031909

Bolt, 'U' - 3/8" x 2-1/4" dia

$

$

Currently unavailable

13

Giant-Vac 3031034

Washer, flat - 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Giant-Vac 3031008

Washer, split lock - 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

15

Giant-Vac 3031009

Nut, hex finish - 3/8-16
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

16

Giant-Vac 3027438

Bracket, 2 pt hitch

$

$

Not available

17

Giant-Vac 3031492

Bolt, hex head - 3/8-16 x 3/4"

$

$

Not available

18

Giant-Vac 3031008

Washer, split lock - 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

19

Giant-Vac 3031009

Nut, hex finish - 3/8-16
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

20

Giant-Vac 3032030

Pin, hitch - 1" dia x 5"

$

$

Currently unavailable

21

Giant-Vac 3032031

Pin, snapper - 1/4" x 2"

$

$

Currently unavailable

22

Giant-Vac 3027439

Strut, 2 pt hitch

$

$

Not available

23

Giant-Vac 3031306

Bushing, flange - 1" id
(Superseded to 3031306YP)

$21.99

$

Usually ships in 2-12 days

0

24

Giant-Vac 3032041

Washer, split lock - 3/4"

$

$

Currently unavailable

25

Giant-Vac 3032033

Nut, hex jam - 3/4-16

$

$

Currently unavailable

26

Giant-Vac 3032034

Bolt, hex head - 3/4-10 x 2-1/4" gr5

$

$

Not available

27

Giant-Vac 3032028

Linkage, spherical rod end - 3/4 x 3/4-16 UNF

$

$

Not available

28

Giant-Vac 3031331

Washer, flat - 3/4"

$

$

Currently unavailable

29

Giant-Vac 3032041

Washer, split lock - 3/4"

$

$

Currently unavailable

30

3031110

Nut, hex finish - 3/4-10

$

$

Not available
