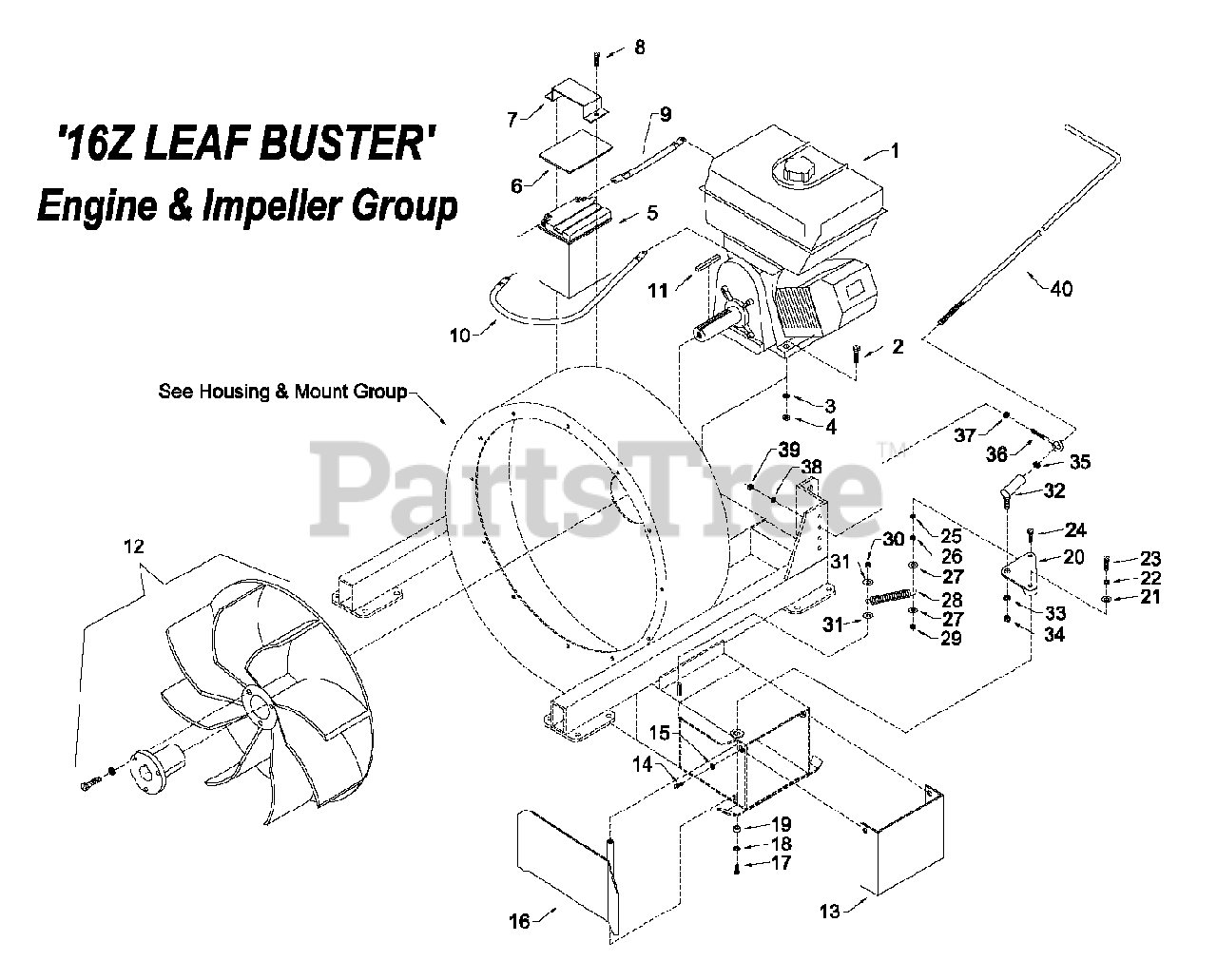

16Z (3071088) - Giant-Vac Z-Mounted Leaf Buster Blower, 16hp Engine & Impeller Group Parts Diagram

Z-Mounted Leaf Buster Blower, 16hp

Engine & Impeller Group Parts Diagram

  • Title

1

3039097

* Engine, 16hp Briggs & Stratton Vanguard

$

$

Not available

Giant-Vac 3035004

Control, throttle cable - 72 (not shown)

$

$

Currently unavailable

Giant-Vac 3027465

Bracket, throttle control mounting - with velcro (not shown)

$

$

Currently unavailable

Giant-Vac 3031943

Screw, round head combo machine - #8-32 x 1/2 (not shown)
(Superseded to 1960600SM)

$4.99

$

Usually ships in 2-12 days

0

Giant-Vac 3031983

Washer, split lock - #8 nom. (not shown)

$

$

Not available

Giant-Vac 3031949

Nut, hex finish - #8-32 (not shown)

$

$

Not available

2

Giant-Vac 3031002

Bolt, hex head - 5/16-18 x 1-3/4" gr5

$

$

Not available

3

Giant-Vac 3031003

Washer, split lock - 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Giant-Vac 3031003

Nut, hex finish - 5/16-18
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Giant-Vac 3039058

Battery 12N14-3A

$

$

Currently unavailable

6

3031681

Pad, rubber battery cover

$

$

Not available

7

Giant-Vac 3040151

Strap, battery top

$

$

Currently unavailable

8

Giant-Vac 3031032

Bolt, hex head - 5/16-18 x 1" gr5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

Giant-Vac 3031002

Washer, split lock - 5/16" (not shown)

$

$

Not available

Giant-Vac 3031003

Nut, hex head - 5/16-18 (not shown)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Giant-Vac 3031725

Cable, battery - 8" red - battery positive

$

$

Not available

10

Giant-Vac 3031726

Cable, battery - 10" black - battery ground

$

$

Currently unavailable

11

Giant-Vac 3031795

Key, engine shaft - 1/4" sq x 2-1/8"
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

12

Giant-Vac 3021588

Impeller (complete with taper-lok hub)

$

$

Currently unavailable

Giant-Vac 3021589

Hub, taper-lok - P3 x 1-1/8" (Part of #12)

$

$

Currently unavailable

Giant-Vac 3031646

Bolt, hex head - 5/16-18 x 1-1/4" gr5 (Part of #12)
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

Giant-Vac 3031002

Washer, split lock - 5/16" (Part of #12)

$

$

Not available

13

Giant-Vac 3024645

Deflector, side discharge

$

$

Not available

14

Giant-Vac 3031035

Bolt, hex head - 3/8-16 x 5/8" gr5

$

$

Currently unavailable

15

Giant-Vac 3031008

Washer, split lock - 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

16

Giant-Vac 3024646

Door, forward discharge

$

$

Not available

17

Giant-Vac 3031031

Bolt, hex head - 5/16-18 x 3/4"

$

$

Not available

18

Giant-Vac 3031003

Washer, split lock - 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Giant-Vac 3032045

Spacer, 5/16" id x 1/2" od x 1/4"

$

$

Currently unavailable

20

Giant-Vac 3027437

Bell crank, fwd door

$

$

Currently unavailable

21

Giant-Vac 3031027

Washer, flat - 5/16"
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

22

Giant-Vac 3031003

Washer, split lock - 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Giant-Vac 3031032

Bolt, hex head - 5/16-18 x 1"
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

24

Giant-Vac 3031032

Bolt, hex head - 5/16-18 x 1"
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

25

Giant-Vac 3031003

Washer, split lock - 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Giant-Vac 3031003

Nut, hex finish - 5/16-18
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Giant-Vac 3031027

Washer, flat - 5/16"
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

28

Giant-Vac 3031422

Spring, forward discharge door

$

$

Currently unavailable

29

Giant-Vac 3031436

Nut, reverse lock - 5/16-18

$

$

Currently unavailable

30

Giant-Vac 3031355

Nut, reverse lock - 3/8-16
(Superseded to 1922694SM)

$

$

Not available

31

Giant-Vac 3031034

Washer, flat - 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

32

Giant-Vac 3031784

Linkage, ball joint - 1/2-20

$

$

Currently unavailable

33

Giant-Vac 3031078

Washer, split lock - 1/2"

$

$

Currently unavailable

34

3032036

Nut, hex jam - 1/2-20

$

$

Not available

35

3032036

Nut, hex jam - 1/2-20

$

$

Not available

36

Giant-Vac 3031618

Bolt, turned eye - 5/16-18 x 3-1/4"

$

$

Not available

37

Giant-Vac 3031004

Nut, hex finish - 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

38

Giant-Vac 3031003

Washer, split lock - 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

39

Giant-Vac 3031004

Nut, hex finish - 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

40

Giant-Vac 3023269

Rod, control - fwd discharge door

$

$

Currently unavailable
