16BVGHMXL (3071071) - Giant-Vac Hitch Mount Truck Loader Vacuum, 16hp 16BVG SKID, HM, & XL Parts Parts Diagram

Hitch Mount Truck Loader Vacuum, 16hp

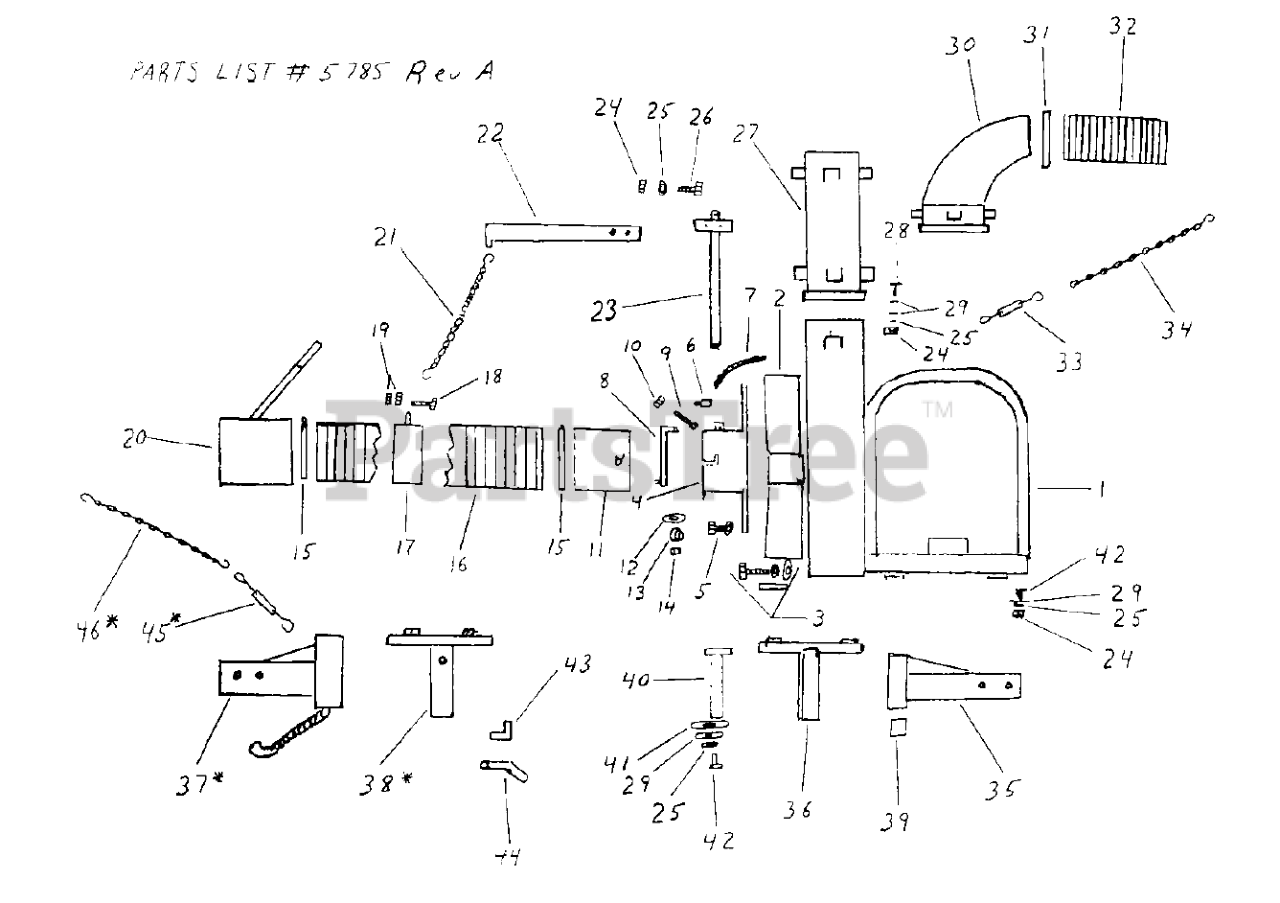

16BVG SKID, HM, & XL Parts Parts Diagram

  • Title
1

Giant-Vac 3010150

Motor base & housing

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Giant-Vac 3031020

7/16-20 x 2 impeller bolt, washers & key

$

$

Currently unavailable

4

Giant-Vac 3020201

Intake flange - 10

$

$

Not available

5

Giant-Vac 3031487

5/16 x 3/4 hex bolt & lock washer

$

$

Not available

6

Giant-Vac 3031480

Safety cutoff switch

$

$

Currently unavailable

6A

Giant-Vac 3031100

3/16 pop rivet (Not shown)

$

$

Not available

7

Giant-Vac 3031817

Safety switch wiring harness

$

$

Not available

8

Giant-Vac 3020203

Intake flange safety cover - 10

$

$

Not available

9

Giant-Vac 3031461

1/2 x 2-1/2 hex bolt
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

10

Giant-Vac 3031406

1/2 lock nut
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

11

Giant-Vac 3020205

Quick-release hose adaptor - 10

$

$

Currently unavailable

12

Giant-Vac 3031578

5/16 fender washer

$

$

Currently unavailable

13

Giant-Vac 3031626

5/16 plastic knob nut

$

$

Currently unavailable

14

Giant-Vac 3031436

5/16 lock nut

$

$

Currently unavailable

15

Giant-Vac 3034015

8 hose clamp

$

$

Currently unavailable

15

Giant-Vac 3034016

10 hose clamp

$

$

Not available

16

3034007

10 x 10’ intake hose

$

$

Not available

17

Giant-Vac 3040109

10 support band

$

$

Not available

18

Giant-Vac 3031141

5/16 x 3-1/2 hex bolt

$

$

Not available

19

Giant-Vac 3031004

5/16 nut
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Giant-Vac 3020150

Intake nozzle - 10

$

$

Not available

21

Giant-Vac 3031140

Boom chain

$

$

Currently unavailable

22

Giant-Vac 3040122

Upper boom support

$

$

Not available

23

Giant-Vac 3040130

Lower boom support

$

$

Not available

24

$

$

Currently unavailable

25

Giant-Vac 3031078

1/2 lockwasher

$

$

Currently unavailable

26

3031093

1/2 x 1 hex bolt

$

$

Not available

27

Giant-Vac 3024612

Discharge stack

$

$

Currently unavailable

28

Giant-Vac 3031021

1/2 x 4-1/2 hex bolt

$

$

Not available

29

Giant-Vac 3031043

1/2 flatwasher
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

30

Giant-Vac 3024613

Discharge elbow

$

$

Currently unavailable

31

Giant-Vac 3034047

7 squeeze ring

$

$

Currently unavailable

32

Giant-Vac 3034089

7 x 30 metal discharge hose

$

$

Not available

33

Giant-Vac 3031624

3/8 x 7-1/2 turnbuckle

$

$

Not available

34

Giant-Vac 3031627

Upper body support chain

$

$

Currently unavailable

35

Giant-Vac 3027261

Standard swing arm - vehicle side

$

$

Not available

36

Giant-Vac 3027262

Standard swing arm - unit side

$

$

Not available

37

Giant-Vac 3027436

* X-long swing arm - vehicle side

Note: Fits XL Model

$

$

Not available

38

Giant-Vac 3027264

* X-long swing arm - unit side

Note: Fits XL Model

$

$

Not available

39

Giant-Vac 3031454

Swing arm bushing

$

$

Currently unavailable

40

Giant-Vac 3031630

Swing arm pivot pin

$

$

Currently unavailable

41

3031489

5/8 flatwasher

$

$

Not available

42

Giant-Vac 3031122

1/2 x 1-1/4 hex bolt
(Superseded to 7090330YP)

$3.49

$

Usually ships in 2-12 days

0

43

Giant-Vac 3023195

Swing arm locking bracket

$

$

Currently unavailable

44

Giant-Vac 3031625

5/8 - 11 handle nut

$

$

Currently unavailable

45

Giant-Vac 3031624

* 3/8 x 7-1/2 turnbuckle

$

$

Not available

46

Giant-Vac 3031140

* Boom chain (secondary safety Chain for x-long swing arm)

$

$

Currently unavailable

Giant-Vac 3070863

Housing liner (w/hardware – 16hp only) (Not shown)

$

$

Currently unavailable

Giant-Vac 3071027

Discharge elbow liner (w/hardware) (Not shown)

$

$

Not available

Giant-Vac 3039080

** 16HP B&S Vanguard engine (Not shown)

$

$

Currently unavailable

Giant-Vac 3031002

5/16-18 x 1-3/4 hex bolt (Not shown)

$

$

Not available

Giant-Vac 3031003

5/16 lock washer (Not shown)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

Giant-Vac 3031004

5/16-18 hex nut (Not shown)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

Giant-Vac 3027265

Standard swing arm ass’y - complete (Not shown)

$

$

Currently unavailable

Giant-Vac 3027311

X-Long swing arm ass’y - complete (Not shown)

Note: Fits XL Model

$

$

Not available
