1697543-00 - Ferris Twin Grass Catcher Kit for eHOZ Mower Catcher Group Parts Diagram

Twin Grass Catcher Kit for eHOZ Mower

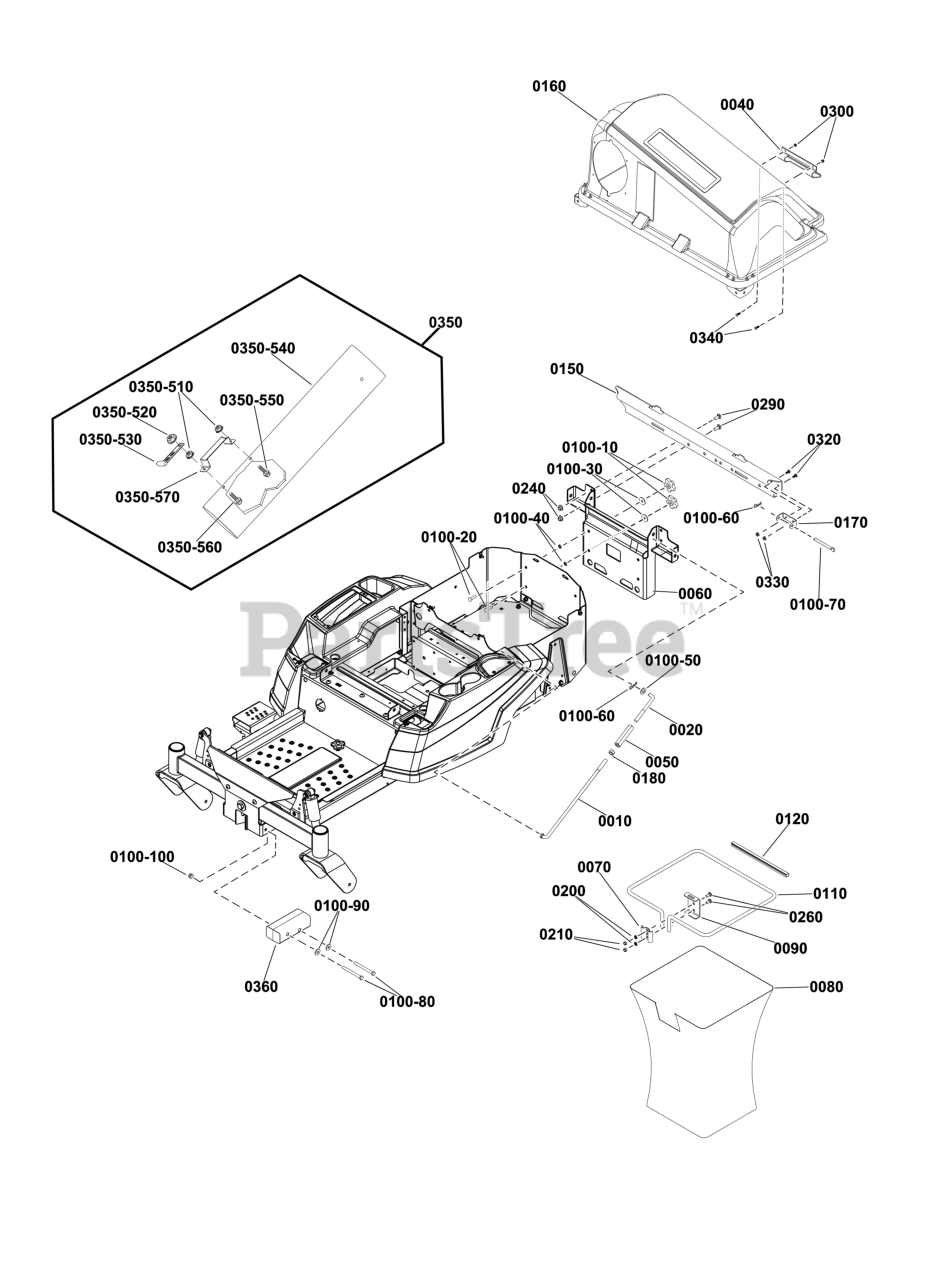

Catcher Group Parts Diagram

  • Title

0010

Ferris 1759374YP

ROD, Bag Support

$

$

Currently unavailable

0020

Ferris 1759375YP

ROD, Bag Support Upper

$

$

Currently unavailable

0040

Ferris 054537MA

HANDLE, Plastic

$18.99

$

Usually ships in 2-12 days

0

0050

Ferris 708163

NUT, Coupling

$

$

Currently unavailable

0060

Ferris 84010824

MOUNT, Grass Catcher

$

$

Currently unavailable

0070

Ferris 1672023ASM

CLAMP, GRASS BAG - BL

$11.99

$

Usually ships in 2-12 days

0

0080

Ferris 1703764SM

BAG-GRASS 15.9 X 16.5

$96.99

$

In Stock, Qty 14

0

0090

Ferris 1703807ASM

HANGER, Grass Bag Hoop, 10 Gauge Twin

$21.99

$

In Stock, only 2 left!

0

0100-10

Ferris 1733098SM

KNOB, Threaded, 5 Lobe, 5/16-18 x 3/4 Lg

$9.99

$

Usually ships in 2-12 days

0

0100-20

Ferris 703446

BOLT, 5/16-18X1.25 G5

$4.49

$

In Stock, Qty 5

0

0100-30

Ferris 1960044SM

WASHER-0.312(0.33IDX1

$4.49

$

In Stock, only 3 left!

0

0100-40

Ferris 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0100-50

Ferris 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 12

0

0100-60

Ferris 703300

PIN, 3/32 X 1.6

$3.99

$

In Stock, Qty 20+

0

0100-70

Ferris 054407ZMA

PIN, Cover Hinge, 3/8 Dia.x 3-3/4

$14.99

$

In Stock, only 1 left!

0

0100-80

Ferris 5025013X32SM

BOLT, 3/8-16 X 4" GD5

$3.99

$

In Stock, Qty 11

0

0100-90

Ferris 704128

WASHER

$4.99

$

In Stock, Qty 11

0

0100-100

Ferris 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 1733491SM

HOOP, Twin, 1/2 Dia.

$146.99

$

In Stock, only 2 left!

0

0120

Ferris 1733709SM

EDGING, Tube Grass Bag

$16.99

$

In Stock, only 2 left!

0

0150

Ferris 1759713AYP

SUPPORT, Cross

$

$

Currently unavailable

0160

Ferris 84002550

COVER ASSEMBLY

$

$

Currently unavailable

0170

Ferris 1736886BMYP

PIVOT, HINGE

$34.99

$

Usually ships in 2-12 days

0

0180

Ferris 703340

NUT,1/2-13,GR5,HEX,ZC

$7.99

$

In Stock, only 1 left!

0

0200

Ferris 5025170SM

WASHER, 5/16" LOCK

$3.99

$

Usually ships in 2-12 days

0

0210

Ferris 5025032SM

NUT, 5/16-18 HEX

$3.49

$

Usually ships in 2-12 days

0

0240

Ferris 5025128SM

NUT, 3/8-16 HEX SERRA

$3.49

$

In Stock, only 2 left!

0

0260

Ferris 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 16

0

0290

Ferris 703815

BOLT, RD SQ 3/8-16X1

$4.49

$

In Stock, only 4 left!

0

0300

Ferris 703412

NUT, NYLOCK, 10-24

$4.49

$

In Stock, only 2 left!

0

0320

Ferris 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0

0330

Ferris 703233

NUT, 1/4-20, GR5

$4.49

$

In Stock, Qty 6

0

0340

Ferris 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

In Stock, only 4 left!

0

0350

ASSEMBLY, Tube

$

$

Not available

0350-510

Ferris 703914

NUT, HEX, KEPS,1/4-20

$

$

Currently unavailable

0350-520

Ferris 703916

NUT, HEX FLNG, 1/4-20

$

$

Currently unavailable

0350-530

Ferris 2171600SM

STRAP, Hood Rubber

$

$

Currently unavailable

0350-540

Ferris 7104383YP

TUBE, Clear, 34"

$158.99

$

Usually ships in 2-12 days

0

0350-550

Ferris 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$

$

Currently unavailable

0350-560

Ferris 004X71MA

SCREW, Machine, 1/4-20 X 1

$

$

Currently unavailable

0350-570

Ferris 054416ZMA

HANDLE, Connect Tube

$

$

Currently unavailable

0360

Ferris 1759653YP

WEIGHT, Front

$

$

Currently unavailable
