1697442-01 - Snapper 42"/107cm Fab Mower Deck 42" (107cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

42"/107cm Fab Mower Deck

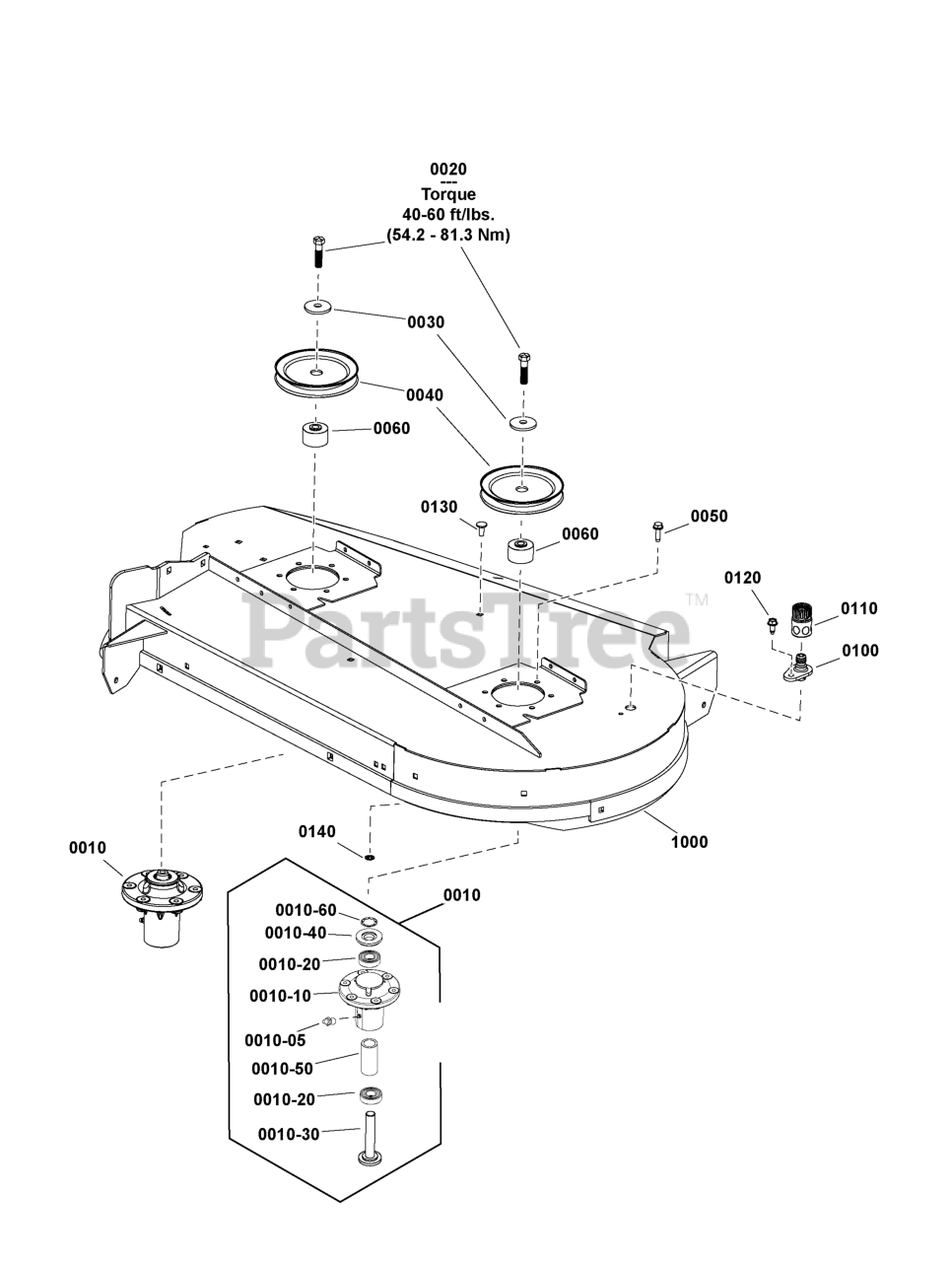

42" (107cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Snapper 84003173

ARBOR ASSEMBLY 42, 48 FAB

Note: ( Incl. Ref. Nos. 0010-05. 0010-10, 0010-20, 0010-30, 0010-40, 0010-50 & 0010-60 )

$96.99

$

In Stock, Qty 20+

0

0010-05

Snapper 1704314SM

FITTING-LUBE .250 DRIVE .25SH BL CHK
(Superseded to 703907)

Note: ( Included with Ref. No. 0010 )

$4.99

$

In Stock, Qty 20+

0

0010-10

Snapper 84003653

HOUSING, SPINDLE - CAST ALUM W/ ZERK

Note: ( Included with Ref. No. 0010 )

$81.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 1735399YP

BEARING, Ball, 20mm

Note: ( Included with Ref. No. 0010 )

$9.99

$

In Stock, Qty 20+

0

0010-30

Snapper 84003170

SHAFT, MOWER SPINDLE-.787 BLADE PILOT

Note: ( Included with Ref. No. 0010 )

$29.99

$

In Stock, only 2 left!

0

0010-40

Snapper 84003166

SHIELD-ARBOR 2.050 OD

Note: ( Included with Ref. No. 0010 )

$6.99

$

In Stock, Qty 8

0

0010-50

Snapper 84003167

SPACER - BEARING MIDDLE

Note: ( Included with Ref. No. 0010 )

$6.99

$

In Stock, Qty 7

0

0010-60

Snapper 1960766YP

RING-SELF LOCKING 46" MWR

Note: ( Included with Ref. No. 0010 )

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 703171

HHCS,7/16-14UNC X1.75

$3.99

$

In Stock, Qty 6

0

0030

Snapper 1656916SM

WASHER, SPRING 0.475IDX1.75ODX.156TH BLK

$7.49

$

In Stock, Qty 20+

0

0040

Snapper 1737835YP

PULLEY, 4.50

$20.99

$

In Stock, only 1 left!

0

0050

Snapper 704146

SCREW,5/16-18X1.000,HEX WSHR HD,TT,ZC/CL

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 1736445YP

SPACER, Pulley

$13.99

$

In Stock, only 1 left!

0

0100

Snapper 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0120

Snapper 703228

SCREW, 5/16-18X0.750

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 703185

BOLT

$3.49

$

In Stock, Qty 16

0

0140

Snapper 703297

RETAINER,5/16X0.625,PUSHNUT,ZINC/CLEAR

$3.99

$

In Stock, Qty 20+

0

1000

Snapper 84007556

KIT, Mower Deck w/Decals, 42"

$

$

Currently unavailable
