1697428-00 - Simplicity 36" Mulch Kit 36" Mulch Kit Parts Diagram

36" Mulch Kit

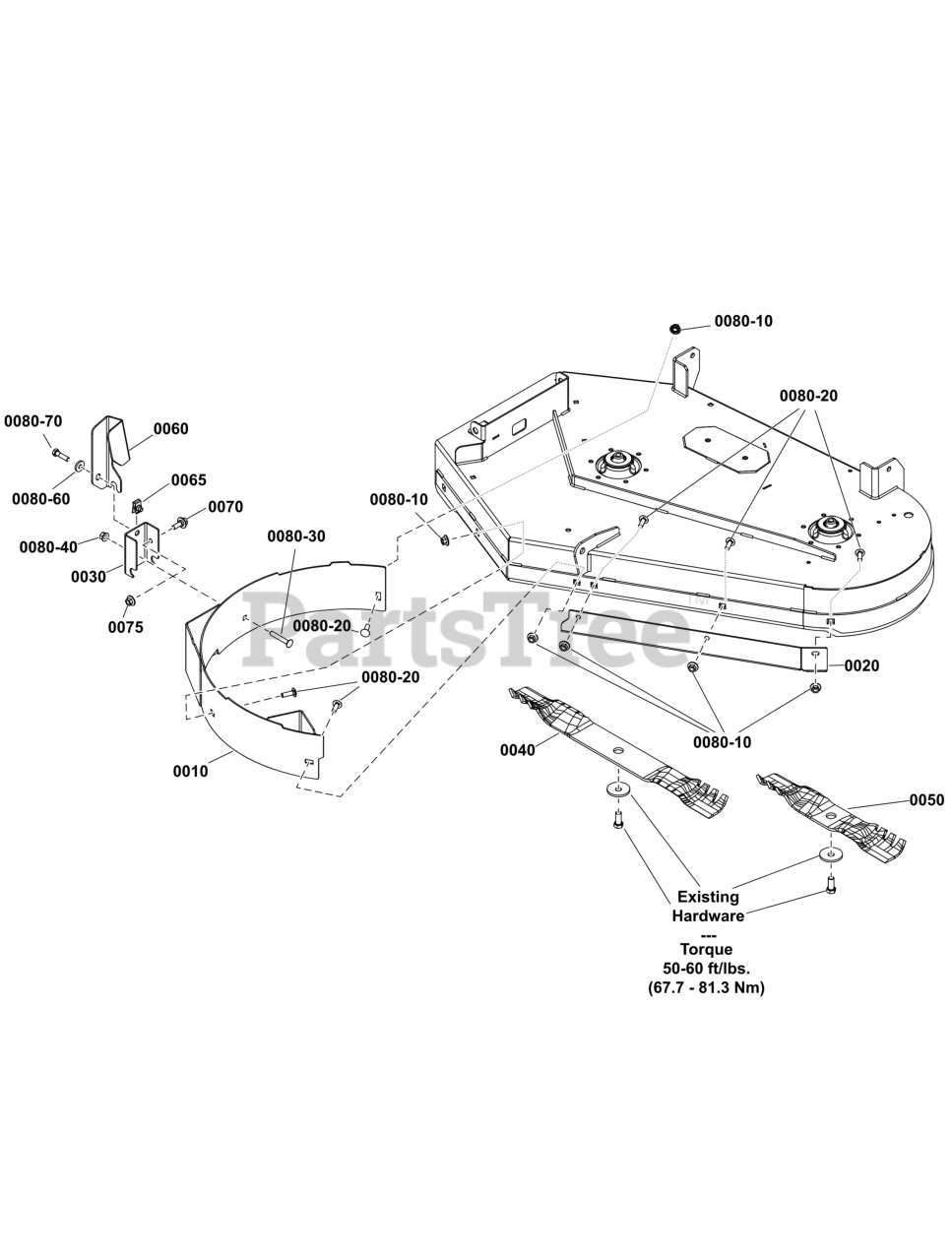

36" Mulch Kit Parts Diagram

  • Title

0010

Simplicity 84002753

BAFFLE, Mulching

$219.99

$

Usually ships in 2-12 days

0

0020

Simplicity 84002754

BAFFLE, Front, Trimside

$40.99

$

Usually ships in 2-12 days

0

0030

Simplicity 84002755

BRACKET, Mulching

$9.99

$

Usually ships in 2-12 days

0

0040

Simplicity 84002756

BLADE, Mulching, 22.24 LG

$52.99

$

Usually ships in 2-12 days

0

0050

Simplicity 84002757

BLADE, Mulching, 14.42 LG

$45.99

$

Usually ships in 2-12 days

0

0060

DEFLECTOR, Prop

$

$

Not available

0065

Simplicity 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, Qty 5

0

0070

Simplicity 1716654SM

BOLT, 5/16-18 X .75, .50 Shoulder G5 YEL

$5.49

$

In Stock, only 1 left!

0

0075

Simplicity 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

Usually ships in 2-12 days

0

0080-10

Simplicity 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

Usually ships in 2-12 days

0

0080-20

Simplicity 703800

BOLT, CRRG, 5/16-18X1

$3.99

$

In Stock, Qty 16

0

0080-30

Simplicity 704035

BOLT, CRRG, 5/16-18X2

$4.49

$

In Stock, only 2 left!

0

0080-40

Simplicity 703115

NUT

$3.49

$

In Stock, Qty 9

0

0080-60

Simplicity 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0080-70

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 11

0
