1697408A-00 - Snapper Twin Grass Catcher for ZT Mower Catcher Group Parts Diagram

Twin Grass Catcher for ZT Mower

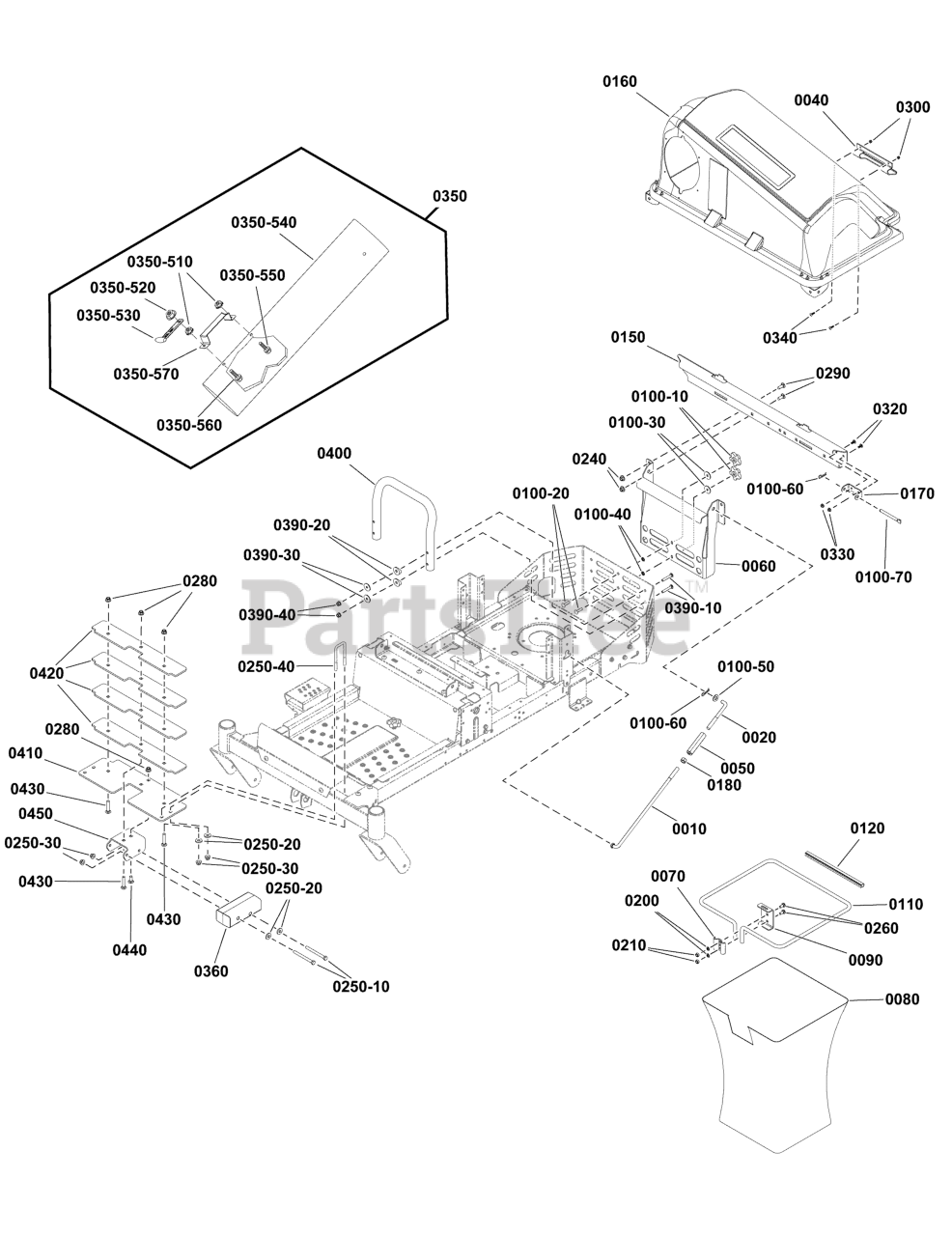

Catcher Group Parts Diagram

  • Title

0010

Snapper 1759374YP

ROD, Bag Support

$114.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759375YP

ROD, Bag Support Upper

$103.99

$

Usually ships in 2-12 days

0

0040

Snapper 054537MA

HANDLE, Plastic

$18.99

$

Usually ships in 2-12 days

0

0050

Snapper 708163

NUT, Coupling

$39.99

$

Usually ships in 2-12 days

0

0060

Snapper 84002548

MOUNT, Grass Catcher

$182.99

$

Usually ships in 2-12 days

0

0070

Snapper 1672023ASM

CLAMP, GRASS BAG - BL

$11.99

$

Usually ships in 2-12 days

0

0080

Snapper 1703764SM

BAG-GRASS 15.9 X 16.5

$96.99

$

In Stock, only 3 left!

0

0090

Snapper 1703807ASM

HANGER, Grass Bag Hoop, 10 Gauge Twin

$21.99

$

In Stock, only 2 left!

0

0100-10

Snapper 1733098SM

KNOB, Threaded, 5 Lobe, 5/16-18 x 3/4 Lg

$9.99

$

In Stock, only 1 left!

0

0100-20

Snapper 703446

BOLT, 5/16-18X1.25 G5

$4.49

$

In Stock, Qty 9

0

0100-30

Snapper 1960044SM

WASHER-0.312(0.33IDX1

$4.49

$

In Stock, only 3 left!

0

0100-40

Snapper 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 14

0

0100-50

Snapper 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 20+

0

0100-60

Snapper 703300

PIN, 3/32 X 1.6

$3.99

$

In Stock, Qty 20+

0

0100-70

Snapper 054407ZMA

PIN, Cover Hinge, 3/8 Dia.x 3-3/4

$14.99

$

Usually ships in 2-12 days

0

0110

Snapper 1733491SM

HOOP, Twin, 1/2 Dia.

$146.99

$

In Stock, only 2 left!

0

0120

Snapper 1733709SM

EDGING, Tube Grass Bag

$16.99

$

In Stock, only 2 left!

0

0150

Snapper 1759713YP

CROSS SUPPORT, Twin

$159.99

$

Usually ships in 2-12 days

0

0160

Snapper 84002550

COVER ASSEMBLY

$

$

Currently unavailable

0170

Snapper 1736886BMYP

PIVOT, HINGE

$34.99

$

Usually ships in 2-12 days

0

0180

Snapper 703340

NUT,1/2-13,GR5,HEX,ZC

$7.99

$

In Stock, only 1 left!

0

0200

Snapper 5025170SM

WASHER, 5/16" LOCK

$3.99

$

In Stock, only 1 left!

0

0210

Snapper 5025032SM

NUT, 5/16-18 HEX

$3.49

$

Usually ships in 2-12 days

0

0240

Snapper 5025128SM

NUT, 3/8-16 HEX SERRA

$3.49

$

In Stock, only 4 left!

0

0250-10

Snapper 5025013X32SM

BOLT, 3/8-16 X 4" GD5

$3.99

$

In Stock, only 1 left!

0

0250-20

Snapper 704128

WASHER

$4.99

$

In Stock, Qty 13

0

0250-30

Snapper 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0250-40

Snapper 1759656YP

BOLT, U, 3/8-16 X 4 1/4

$24.99

$

Usually ships in 2-12 days

0

0260

Snapper 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0280

Snapper 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0290

Snapper 703815

BOLT, RD SQ 3/8-16X1

$4.49

$

In Stock, Qty 11

0

0300

Snapper 703412

NUT, NYLOCK, 10-24

$4.49

$

In Stock, Qty 7

0

0320

Snapper 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0

0330

Snapper 703233

NUT, 1/4-20, GR5

$4.49

$

In Stock, Qty 10

0

0340

Snapper 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

In Stock, only 4 left!

0

0350

ASSEMBLY, Tube

$

$

Not available

0350-510

Snapper 703914

NUT, HEX, KEPS,1/4-20

$3.49

$

In Stock, Qty 16

0

0350-520

Snapper 703916

NUT, HEX FLNG, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0350-530

Snapper 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0350-540

Snapper 7104383YP

TUBE, Clear, 34"

$158.99

$

Usually ships in 2-12 days

0

0350-550

Snapper 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0350-560

Snapper 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0350-570

Snapper 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

0360

Snapper 1759653YP

WEIGHT, Front

$176.99

$

Usually ships in 2-12 days

0

0390-10

Snapper 704035

BOLT, CRRG, 5/16-18X2

$4.49

$

In Stock, only 2 left!

0

0390-20

Snapper 1759361YP

SADDLE, Tube, 1.25 O.D.

$5.99

$

Usually ships in 2-12 days

0

0390-30

Snapper 1960044SM

WASHER-0.312(0.33IDX1

$4.49

$

In Stock, only 3 left!

0

0390-40

Snapper 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 10

0

0400

Snapper 1759315AYP

TUBE, Support

$68.99

$

Usually ships in 2-12 days

0

0410

Snapper 84002401

WEIGHT, Lower

$78.99

$

Usually ships in 2-12 days

0

0420

Snapper 84002402

WEIGHT, Upper

$41.99

$

Usually ships in 2-12 days

0

0430

Snapper 5025146X16SM

BOLT, 3/8-16 X 2", CA

$4.49

$

In Stock, only 1 left!

0

0440

Snapper 703814

BOLT, RD HD, 3/8-16X1

$4.49

$

In Stock, only 4 left!

0

0450

Snapper 84002552

BRACKET, Weight Mount

$

$

Currently unavailable
