1697404-00 - Snapper Turbo Collection System for 52" Mower Deck Turbo Mounting Group Parts Diagram

Turbo Collection System for 52" Mower Deck

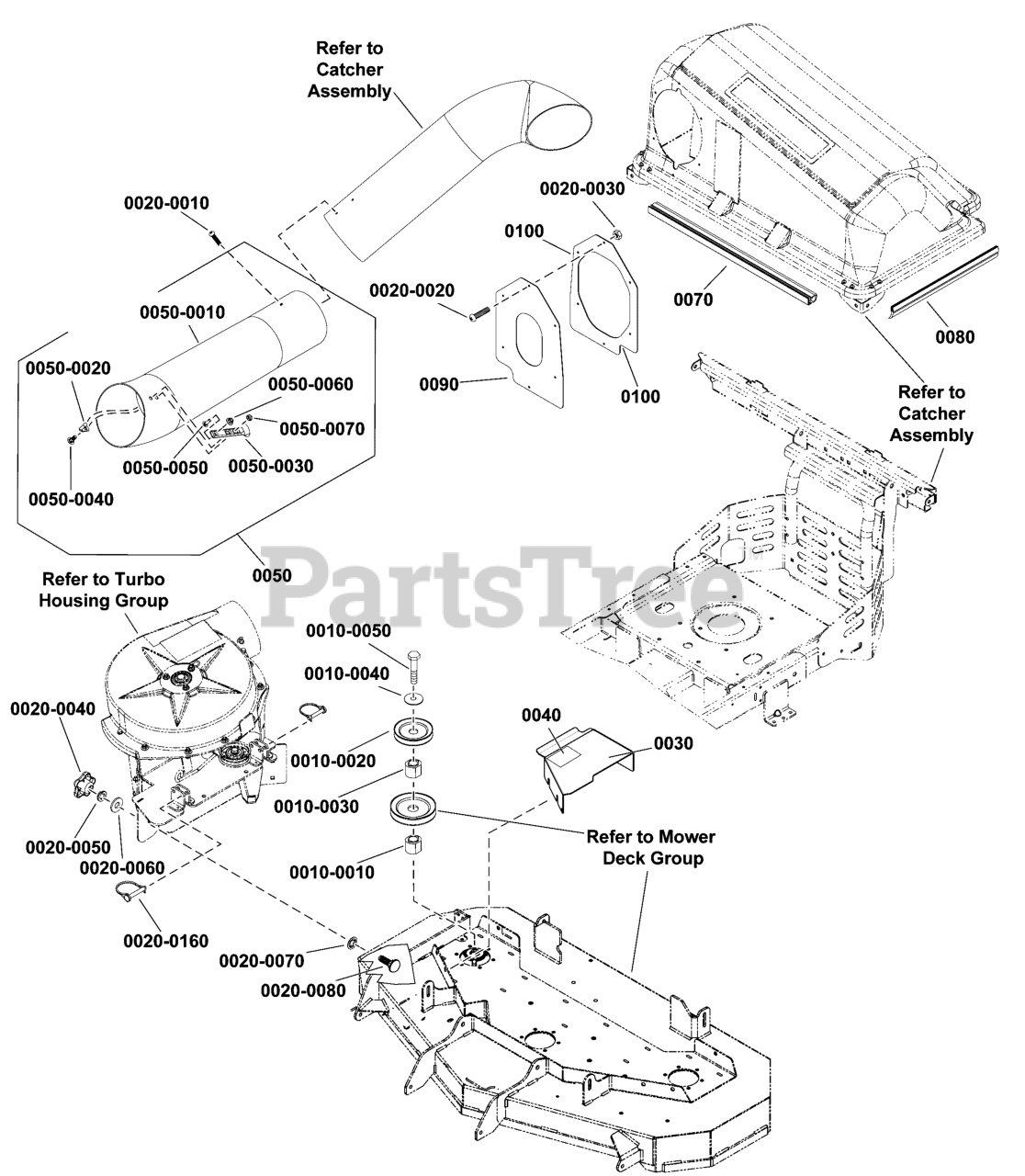

Turbo Mounting Group Parts Diagram

  • Title

0010-0010

Snapper 706363

SPACER, HUB

$16.99

$

Usually ships in 2-12 days

0

0010-0020

Snapper 1713090SM

PULLEY, 3 3/4

$24.99

$

Usually ships in 2-12 days

0

0010-0030

Snapper 706362

SPACER, HUB

$9.99

$

Usually ships in 2-12 days

0

0010-0040

Snapper 1656916SM

WASHER, SPRING 0.475I

$7.49

$

In Stock, Qty 20+

0

0010-0050

Snapper 1926110SM

CAPSCREW-HEX HD 7/16-

$6.49

$

Usually ships in 2-12 days

0

0020-0010

Snapper 26X239MA

SCREW, 1/4 Phillips

$4.49

$

In Stock, only 2 left!

0

0020-0020

Snapper 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

In Stock, only 4 left!

0

0020-0030

Snapper 703412

NUT, NYLOCK, 10-24

$4.49

$

In Stock, only 2 left!

0

0020-0040

Snapper 7105085YP

KNOB,HANDLE,5 PRONG

$3.99

$

In Stock, Qty 20+

0

0020-0050

Snapper 5025170SM

WASHER, 5/16" LOCK

$3.99

$

Usually ships in 2-12 days

0

0020-0060

Snapper 703302

WASHER, 5/16

$4.49

$

In Stock, Qty 20+

0

0020-0070

Snapper 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0020-0080

Snapper 703446

BOLT, 5/16-18X1.25 G5

$4.49

$

In Stock, Qty 5

0

0020-0160

Snapper 5100847SM

SNAPPERPIN

$16.99

$

In Stock, only 1 left!

0

0030

Snapper 84007544

COVER, Arbor, RH

$50.99

$

Usually ships in 2-12 days

0

0040

Snapper 5103184YP

DECAL, WARNING, ENG

$13.99

$

Usually ships in 2-12 days

0

0050

Snapper 705993

ASSEMBLY, Tube Lower

Note: (Incl. Ref. Nos. 0050-0010, 0050-0020, 0050-0030, 0050-0040, 0050-0050, 0050-0060 & 0050-0070)

$219.99

$

Usually ships in 2-12 days

0

0050-0010

TUBE, Lower

Note: (Refer to Note: *) (Included with Ref. No. 0050)

$

$

Not available

0050-0020

Snapper 054563MA

PIN, Latch

Note: (Included with Ref. No. 0050)

$23.99

$

In Stock, only 2 left!

0

0050-0030

Snapper 2171600SM

STRAP, Hood Rubber

Note: (Included with Ref. No. 0050)

$7.99

$

In Stock, Qty 20+

0

0050-0040

Snapper 1960252SM

BOLT-RD HD SH SQ NK 1

Note: (Included with Ref. No. 0050)

$3.99

$

In Stock, only 1 left!

0

0050-0050

Snapper 703575

BOLT, 1/4-20X.750, SQ

Note: (Included with Ref. No. 0050)

$3.99

$

In Stock, only 1 left!

0

0050-0060

Snapper 703161

NUT

Note: (Included with Ref. No. 0050)

$3.49

$

In Stock, Qty 20+

0

0050-0070

Snapper 703233

NUT, 1/4-20, GR5

Note: (Included with Ref. No. 0050)

$4.49

$

In Stock, Qty 6

0

0070

Snapper 1721175SM

EDGING, Seal

$39.99

$

Usually ships in 2-12 days

0

0080

Snapper 1717496SM

EDGING, Side 12.5 Lg

$19.99

$

Usually ships in 2-12 days

0

0090

Snapper 1733741YP

SEAL

$29.99

$

Usually ships in 2-12 days

0

0100

Snapper 1732735ASM

FLANGE, Seal

$40.99

$

Usually ships in 2-12 days

0
