1697379A-00 - Snapper Turbo Collection System for 61" FAB Mower Deck Turbo Housing Group (5303620) Parts Diagram

Turbo Collection System for 61" FAB Mower Deck

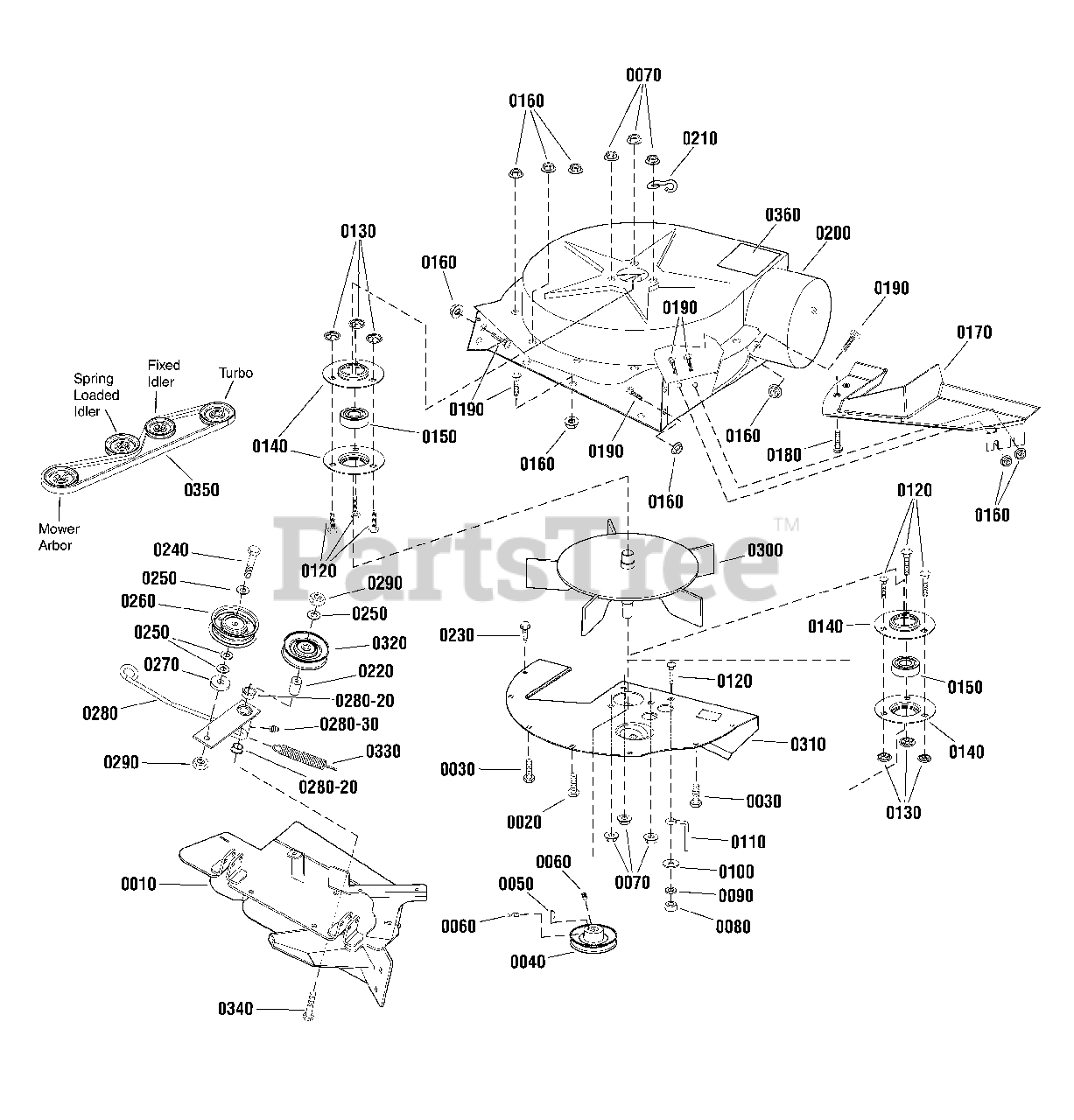

Turbo Housing Group (5303620) Parts Diagram

  • Title

0010

Snapper 5411717A

WELD, ADAPTER, 61, TPRO, 550Z - BLK

$

$

Currently unavailable

0020

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0030

Snapper 80004833

HHCS, 1/4-20 X 0.875, GR 5, ZINC/CLEAR

$

$

Currently unavailable

0040

Snapper 1736092

PULLEY, 2-3/4" Diam., For 4L Belt
(Superseded to 1736092SM)

$43.99

$

Usually ships in 2-12 days

0

0050

Snapper 2860403

KEY, Woodruff, Modified
(Superseded to 2860403SM)

$10.99

$

In Stock, only 1 left!

0

0060

Snapper 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0

0070

Snapper 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

0080

Snapper 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

0090

Snapper 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

0100

Snapper 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

0110

Snapper 1678435

BELT STOP, (Height Indicator)
(Superseded to 1678435SM)

$4.49

$

Usually ships in 2-12 days

0

0120

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

0130

RETAINER,5/16X0.625,PUSHNUT,ZINC/CLEAR

$

$

Not available

0140

Snapper 1665982

RETAINER, BEARING CLEAR ZINC
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 20+

0

0150

Snapper 2108202

BEARING-BALL 0.750ID 1.780OD 0.610LG
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0160

NUT, Hex Flange Whiz, 1/4-20

$

$

Not available

0170

Snapper 1705267

PLATE-COVER,BLACK POLY FOR LTH MDVS
(Superseded to 1705267SM)

$32.99

$

In Stock, Qty 6

0

0180

Snapper 80027822

SCREW-HEX WSHR HD HI,LO .250 X .750 ZC/C

$

$

Currently unavailable

0190

Snapper 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

0200

Snapper 5103385

HOUSING, FERRIS TURBO BLOWER
(Superseded to 5412569)

$331.99

$

Usually ships in 2-12 days

0

0210

Snapper 1672689

HOOK, "S"
(Superseded to 1672689SM)

$31.99

$

Usually ships in 2-12 days

0

0220

Snapper 1676833

SPACER, 3/8 ID x 5/8 OD x 1-3/4 Long
(Superseded to 1676833SM)

$27.99

$

Usually ships in 2-12 days

0

0230

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap, BZ

$

$

Not available

0240

Snapper 80004479

* CAPSCREW, Hex Head, 3/8-16 X 1-1/2, GR5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

0250

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0260

Snapper 2154534

IDLER PULLEY ASSEMBLY, 2-3/4 OD
(Superseded to 2154534SM)

$32.99

$

In Stock, only 1 left!

0

0270

Snapper 80005608

WSHR,0.453IDX1.250ODX0.250THK,FLAT,ZC/CL

$

$

Currently unavailable

0280

Snapper 1756380

ASSY, IDLER ARM, 52" FAB TURBO

Note: ( Includes Ref. Nos. 0280-20 & 0280-30)

$

$

Currently unavailable

0280-20

Snapper 1676148

BUSHING-0.628IDX0.751ODX0.400LG PWDR MTL
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 20+

0

0280-30

ZERK GREASE FITTING 1/4 ZINC/CLEAR

$

$

Not available

0290

Snapper 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

0300

Snapper 1706631A

FAN ASSEMBLY, Five Paddle
(Superseded to 1706631ASM)

$384.99

$

In Stock, only 1 left!

0

0310

Snapper 1705266A

PLATE-14GA FOR MDVS REG,BM,LL,BLACK TEXT

$

$

Currently unavailable

0320

Snapper 1721134

PULLEY, 3" OD x .378" ID x .75" WD, w/Bearing
(Superseded to 1721134SM)

$30.99

$

In Stock, Qty 20+

0

0330

Snapper 1716853

SPRING, Tension
(Superseded to 1716853SM)

$12.99

$

In Stock, only 4 left!

0

0340

Snapper 80004845

HHCS, 3/8-16 X 3.250, GR 5, ZINC/CLEAR

$

$

Currently unavailable

0350

Snapper 5104088

BELT, A-SEC, 45.0", ARAMID WRAPPED

$

$

Currently unavailable

0360

Snapper 1700259

DECAL, Danger Thrown Objects
(Superseded to 1700259SM)

$27.99

$

Usually ships in 2-12 days

0
