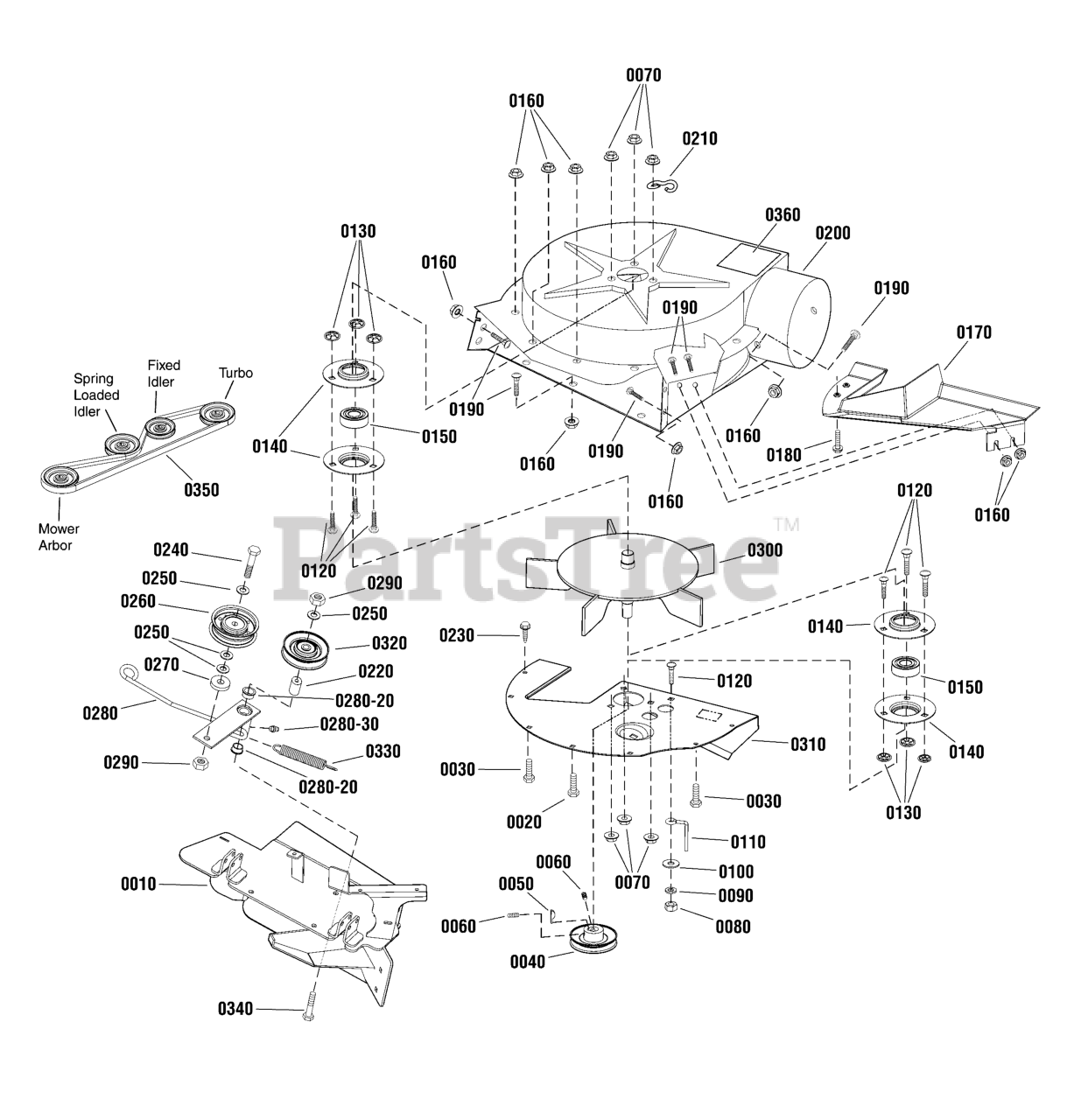

1697379A-00 - Simplicity Turbo Collection System for 61" FAB Mower Deck Housing Group Parts Diagram

Turbo Collection System for 61" FAB Mower Deck

Housing Group Parts Diagram

  • Title

0010

Simplicity 5411717AYP

ADAPTER, Turbo

$245.99

$

Usually ships in 2-12 days

0

0020

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703819

CAPSCREW,1/4-20X0.875

$4.49

$

Usually ships in 2-12 days

0

0040

Simplicity 1736092SM

PULLEY, 2 3/4

$43.99

$

Usually ships in 2-12 days

0

0050

Simplicity 2860403SM

KEY, Woodruff, 3/16

$10.99

$

In Stock, only 1 left!

0

0060

Simplicity 1960619SM

SCREW, Set, 5/16-18 x 5/16

$3.49

$

In Stock, Qty 10

0

0070

Simplicity 1927557SM

NUT, Hex Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 703116

LCKWSHR

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 1678435SM

BELT STOP

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 X 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0130

Simplicity 1933988SM

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0140

Simplicity 1665982SM

BEARING RETAINER - PL

$6.99

$

In Stock, Qty 20+

0

0150

Simplicity 2108202SM

BEARING, BALL

$11.99

$

In Stock, Qty 20+

0

0160

Simplicity 1930641SM

NUT, Hex Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0170

Simplicity 1705267SM

PLATE-COVER,BLACK POL

$32.99

$

In Stock, Qty 6

0

0180

Simplicity 1960728SM

SCREW, Hex Washer Head, 1/4 X 3/4

$3.99

$

In Stock, only 4 left!

0

0190

Simplicity 703575

BOLT, 1/4-20X.750, SQ

$3.99

$

In Stock, only 1 left!

0

0200

Simplicity 1687736YP

TURBO HOUSING ASSEMBLY/ W Decal

$384.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1672689SM

"S" HOOK

$31.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1676833SM

SPACER, .376 ID x 58 OD X 1 3/4 LG

$27.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 X 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0240

Simplicity 703406

CAPSCREW,3/8-16X1.5

$4.99

$

In Stock, only 1 left!

0

0250

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

0260

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

0280

Simplicity 1756380YP

IDLER ARM ASSEMBLY

Note: ( Includes Ref. Nos. 0280-20 & 0280-30)

$236.99

$

Usually ships in 2-12 days

0

0280-20

Simplicity 1676148SM

BUSHING-0.628IDX

$5.99

$

In Stock, Qty 20+

0

0280-30

Simplicity 2821133SM

LUBE, Fitting, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0290

Simplicity 1960251SM

NUT, Hex Centerlock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0300

Simplicity 1706631SM

FAN ASSEMBLY
(Superseded to 1706631ASM)

$384.99

$

In Stock, only 1 left!

0

0310

Simplicity 1705266SM

PLATE

$

$

Not available

0320

Simplicity 1721134SM

PULLEY, 3" OD

$30.99

$

In Stock, Qty 20+

0

0330

Simplicity 1716853SM

SPRING, Extension

$12.99

$

In Stock, only 4 left!

0

0340

Simplicity 703874

CAPSCREW,3/8-16X3.25

$4.49

$

In Stock, Qty 11

0

0350

Simplicity 5104088YP

BELT, Turbo

$33.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1700259SM

DECAL, Danger

$27.99

$

Usually ships in 2-12 days

0
