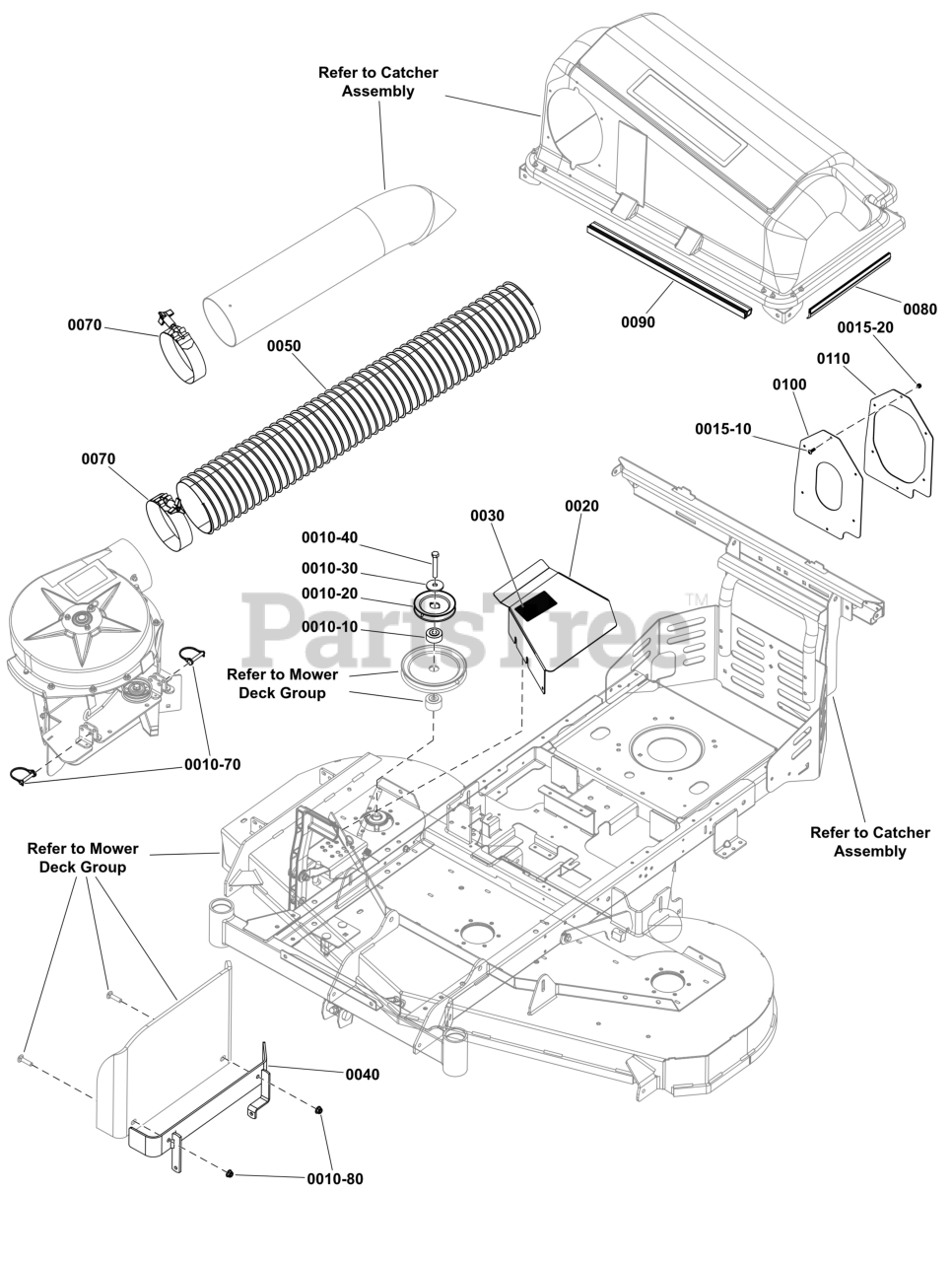

1697379A-00 - Ferris 61" Turbo Grass Collection System Turbo Mounting Group (80104500) Parts Diagram

61" Turbo Grass Collection System

Turbo Mounting Group (80104500) Parts Diagram

  • Title

0010-10

Ferris 1758623

SPACER, HUB
(Superseded to 706362)

$9.99

$

Usually ships in 2-12 days

0

0010-20

Ferris 1709941

PULLEY, 04.30OD 1.000ID 0.579 Groove 9GA
(Superseded to 1709941SM)

$28.99

$

Usually ships in 2-12 days

0

0010-30

Ferris 1656916

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0010-40

Ferris 80020799

CAPSCREW-HEX HD 7/16-14X2.750 G5 ZC/CL
(Superseded to 1926110SM)

$6.49

$

Usually ships in 2-12 days

0

0010-70

Ferris 5100847

SNAPPERPIN, 5/16 X 2
(Superseded to 5100847SM)

$16.99

$

In Stock, only 1 left!

0

0010-80

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0015-10

Ferris 1960404

SCREW, Truss Head Phillips, #10-24 x 3/4 Black
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0015-20

NUT, Hex Lock 10-24 w/Nylon Insert

$

$

Not available

0020

Ferris 80104512AA

COVER, RH ARBOR TURBO (61 HOZ-XT)

$

$

Currently unavailable

0030

Ferris 5103184

DECAL, WARNING, HAND IN BELT, ENG ONLY
(Superseded to 5103184YP)

$13.99

$

Usually ships in 2-12 days

0

0040

Ferris 5411894A

WELD, FRAME, CHUTE, 550Z BLOWER - BLK

$

$

Currently unavailable

0050

Ferris 80104457

HOSE, FLEXIBLE, 6" DIA X 42"

$

$

Currently unavailable

0070

Ferris 5103469

CLAMP, 6" UPPER & LOWER, COLLECTORS
(Superseded to 5103469YP)

$39.99

$

Usually ships in 2-12 days

0

0080

Ferris 1733579

EDGING, Rubber, thick
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

0090

Ferris 1717496

EDGING, Rubber, Thin
(Superseded to 1717496SM)

$19.99

$

Usually ships in 2-12 days

0

0100

Ferris 1733741

SEAL, Cover, Nylon
(Superseded to 1733741SM)

$29.99

$

Usually ships in 2-12 days

0

0110

Ferris 1732735A

FLANGE, Seal 14 GA
(Superseded to 1732735ASM)

$40.99

$

Usually ships in 2-12 days

0
