1697376A-00 - Ferris Bagging Boot, Blade & Baffle, 48" Bagging Boot Parts Diagram

Bagging Boot, Blade & Baffle, 48"

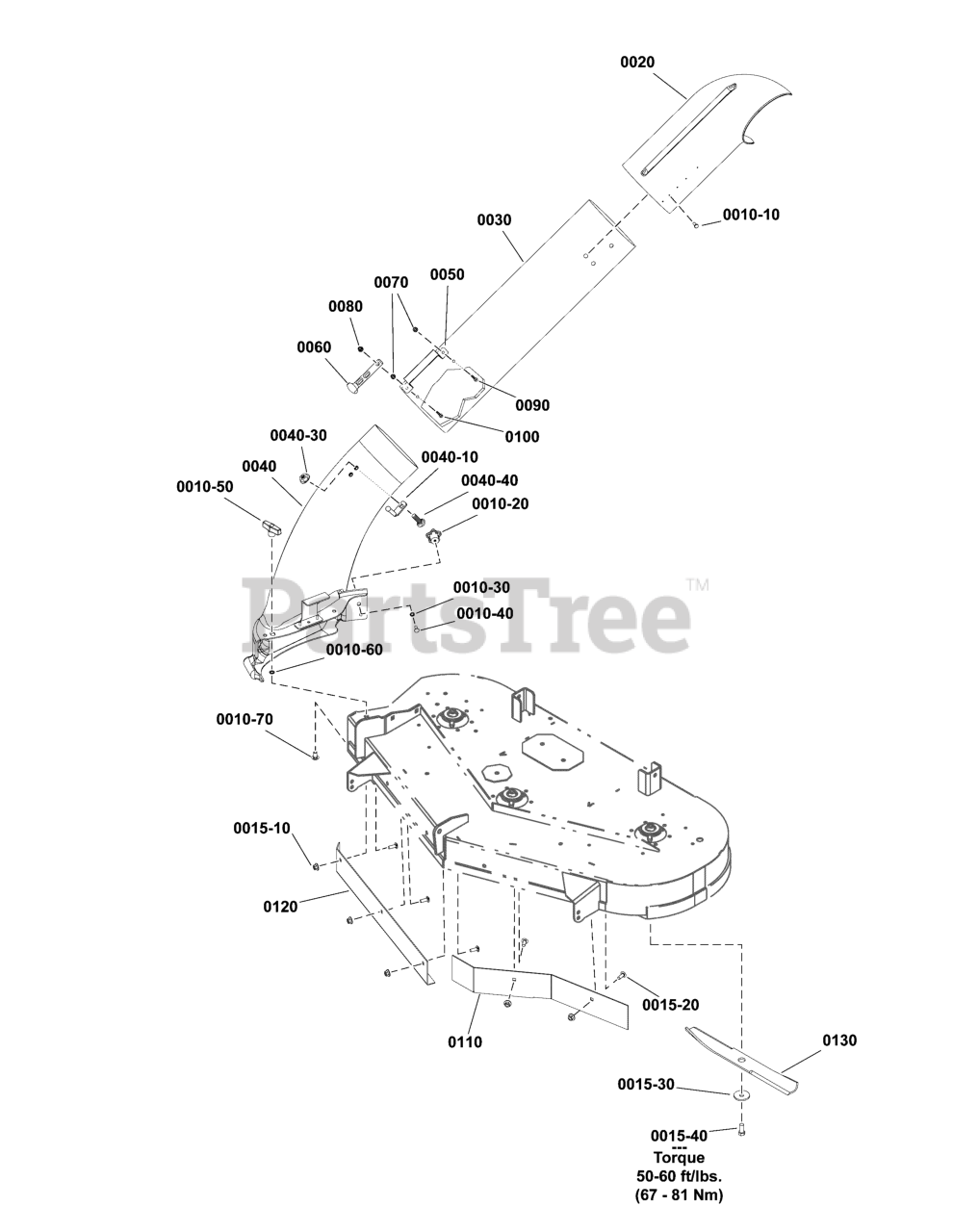

Bagging Boot Parts Diagram

  • Title

0010-10

Ferris 26X239MA

SCREW, 1/4 Phillips

$

$

Currently unavailable

0010-20

Ferris 706490

KNOB, HANDLE, 5 PRONG

$

$

Currently unavailable

0010-30

Ferris 703826

BOLT, PUSHNUT 1/4

$3.49

$

In Stock, Qty 20+

0

0010-40

Ferris 703440

BOLT, 1/4-20 X 3/4

$3.99

$

In Stock, Qty 8

0

0010-50

Ferris 1101106MA

NUT, Wing, 3/8-16

$

$

Currently unavailable

0010-60

Ferris 703986

RETAINER, PUSHNUT,3/8

$4.49

$

In Stock, only 1 left!

0

0010-70

Ferris 703448

BOLT, 3/8-16X.75 G5

$4.49

$

In Stock, Qty 20+

0

0015-10

Ferris 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

Usually ships in 2-12 days

0

0015-20

Ferris 704065

BOLT, 5/16-18X.875

$

$

Currently unavailable

0015-30

Ferris 1656916SM

WASHER, SPRING 0.475I

$7.49

$

In Stock, Qty 20+

0

0015-40

Ferris 2820676SM

CAPSCREW-HEX HD 7/16-

$4.49

$

In Stock, Qty 6

0

0020

Ferris 1733885SM

ELBOW, Upper Tube

$103.99

$

Usually ships in 2-12 days

0

0030

Ferris 1734299SM

TUBE, Clear Poly, ZTS Twin Catcher

$

$

Currently unavailable

0040

Ferris 1759298YP

BOOT

$

$

Currently unavailable

0040-10

Ferris 054563MA

PIN, Latch

$

$

Currently unavailable

0040-30

Ferris 703916

NUT, HEX FLNG, 1/4-20

$

$

Currently unavailable

0040-40

Ferris 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0

0050

Ferris 707710

TUBE

$

$

Currently unavailable

0060

Ferris 2171600SM

STRAP, Hood Rubber

$

$

Currently unavailable

0070

Ferris 703914

NUT, HEX, KEPS,1/4-20

$

$

Currently unavailable

0080

Ferris 703916

NUT, HEX FLNG, 1/4-20

$

$

Currently unavailable

0090

Ferris 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$

$

Currently unavailable

0100

Ferris 004X71MA

SCREW, Machine, 1/4-20 X 1

$

$

Currently unavailable

0110

Ferris 1759458CJYP

BAFFLE, Trim Side

$

$

Currently unavailable

0120

Ferris 1759459CJYP

BAFFLE, Discharge

$

$

Currently unavailable

0130

Ferris 1759454YP

BLADE, 48"

$

$

Currently unavailable
