1697375A-00 - Snapper 46" Bagging Boot & Baffle Bagging Boot Parts Diagram

46" Bagging Boot & Baffle

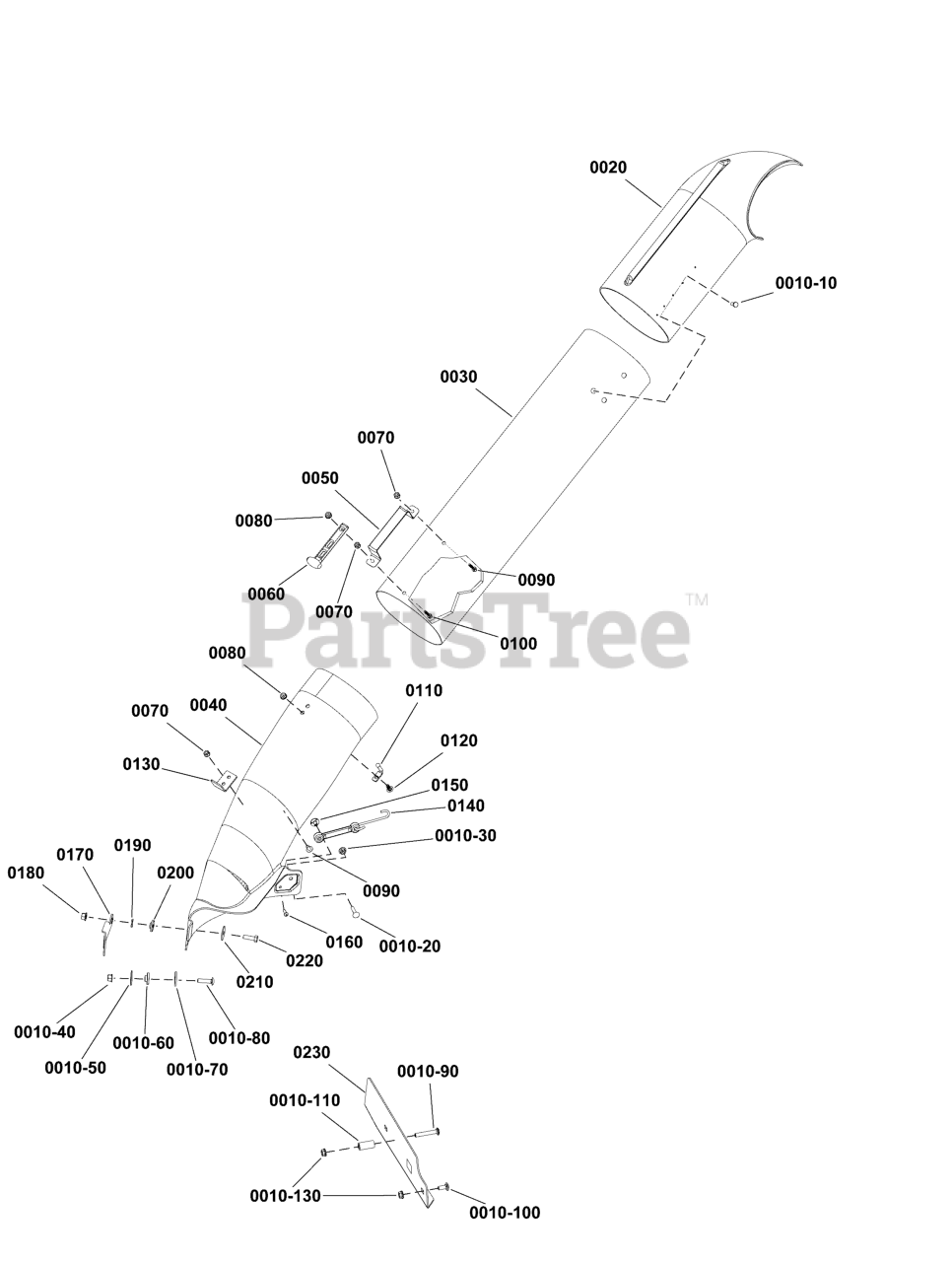

Bagging Boot Parts Diagram

  • Title

0010-10

Snapper 26X239MA

SCREW, 1/4 Phillips

$4.49

$

In Stock, only 2 left!

0

0010-20

Snapper 703178

BOLT, CARRIAGE

$3.99

$

In Stock, only 1 left!

0

0010-30

Snapper 703061

NUT, HEX KEPS, 1/4-20

$3.49

$

In Stock, only 3 left!

0

0010-40

Snapper 703115

NUT

$3.49

$

In Stock, Qty 8

0

0010-50

Snapper 1960044SM

WASHER-0.312(0.33IDX1

$4.49

$

In Stock, only 3 left!

0

0010-60

Snapper 1723244SM

SPACER, Pivot

$7.99

$

Usually ships in 2-12 days

0

0010-70

Snapper 1919381SM

WASHER, Flat, .34 ID x 1" OD
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

0010-80

Snapper 703446

BOLT, 5/16-18X1.25 G5

$4.49

$

In Stock, Qty 9

0

0010-90

Snapper 704035

BOLT, CRRG, 5/16-18X2

$4.49

$

In Stock, only 2 left!

0

0010-100

Snapper 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0010-110

Snapper 1676088SM

SPACER, 5/8 x .320

$11.99

$

Usually ships in 2-12 days

0

0010-130

Snapper 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

Usually ships in 2-12 days

0

0020

Snapper 1733885SM

ELBOW, Upper Tube

$103.99

$

Usually ships in 2-12 days

0

0030

Snapper 1734299SM

TUBE, Clear Poly, ZTS Twin Catcher

$140.99

$

In Stock, Qty 7

0

0040

Snapper 1734776YP

BOOT, Bagging

$268.99

$

In Stock, only 2 left!

0

0050

Snapper 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

0060

Snapper 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0070

Snapper 703914

NUT, HEX, KEPS,1/4-20

$3.49

$

In Stock, Qty 16

0

0080

Snapper 703916

NUT, HEX FLNG, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0090

Snapper 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0100

Snapper 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0110

Snapper 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0120

Snapper 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0

0130

Snapper 1737764AYP

UPSTOP, Deflector

$33.99

$

Usually ships in 2-12 days

0

0140

Snapper 7036433SM

STRAP, Mounting Bag

$31.99

$

In Stock, only 1 left!

0

0150

Snapper 7036404SM

NUT, Weld, 10-24

$3.49

$

Usually ships in 2-12 days

0

0160

Snapper 7036415SM

SCREW, Pan Head, 10 x 5/8

$3.99

$

In Stock, only 2 left!

0

0170

Snapper 1737765AYP

LATCH, Bagging Boot

$32.99

$

In Stock, only 1 left!

0

0180

Snapper 703115

NUT

$3.49

$

In Stock, Qty 8

0

0190

Snapper 7026257MA

WASHER, Wave, 1/2

$4.49

$

In Stock, only 1 left!

0

0200

Snapper 1708511SM

SPACER, 5/16 ID x 1 OD x 1/4"`

$7.49

$

In Stock, only 2 left!

0

0210

Snapper 1960044SM

WASHER-0.312(0.33IDX1

$4.49

$

In Stock, only 3 left!

0

0220

Snapper 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0230

Snapper 1737241AYP

BAFFLE, 46" Mower Deck

$77.99

$

Usually ships in 2-12 days
