1697373A-00 - Snapper 42" Bagging Boot, Blade & Baffle Bagging Boot Parts Diagram

42" Bagging Boot, Blade & Baffle

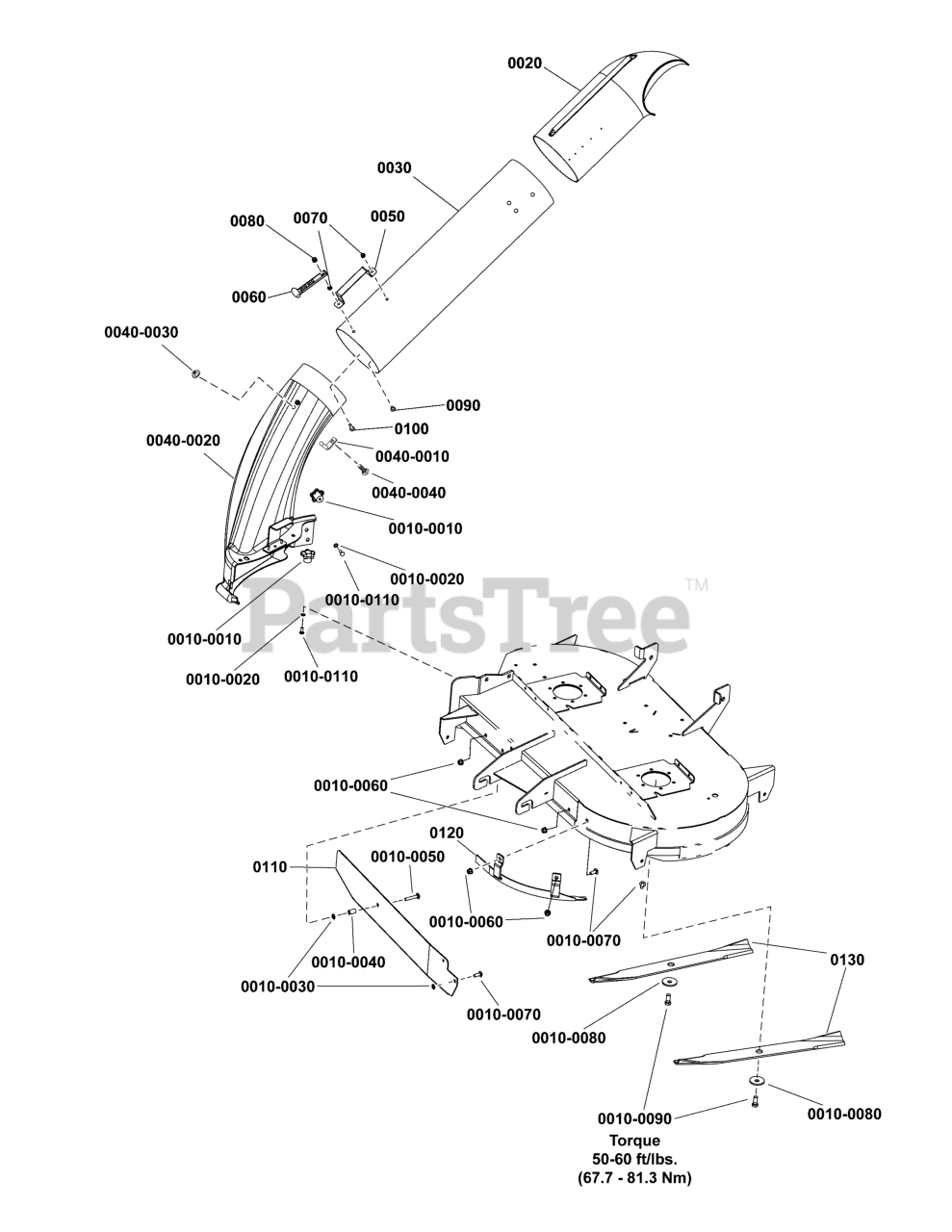

Bagging Boot Parts Diagram

  • Title

0010-0010

Snapper 706490

KNOB, HANDLE, 5 PRONG

$14.99

$

In Stock, Qty 10

0

0010-0020

Snapper 703826

BOLT, PUSHNUT 1/4

$3.49

$

In Stock, Qty 20+

0

0010-0030

Snapper 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0010-0040

Snapper 5103660YP

SPACER, .32X.50 X.83

$4.99

$

In Stock, only 3 left!

0

0010-0050

Snapper 703175

BOLT,RD SH SQ

$3.99

$

In Stock, only 2 left!

0

0010-0060

Snapper 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0010-0070

Snapper 704065

BOLT, 5/16-18X.875

$4.49

$

In Stock, Qty 5

0

0010-0080

Snapper 1656916SM

WASHER, SPRING 0.475I

$7.49

$

In Stock, Qty 20+

0

0010-0090

Snapper 2820676SM

CAPSCREW-HEX HD 7/16-

$4.49

$

In Stock, Qty 6

0

0010-0110

Snapper 703440

BOLT, 1/4-20 X 3/4

$3.99

$

In Stock, Qty 8

0

0020

Snapper 1733885SM

ELBOW, Upper Tube

$103.99

$

Usually ships in 2-12 days

0

0030

Snapper 1734299SM

TUBE, Clear Poly, ZTS Twin Catcher

$140.99

$

In Stock, Qty 6

0

0040-0010

Snapper 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0040-0020

Snapper 1759606YP

BOOT, Bagging
(Superseded to 1759298YP)

$463.99

$

Usually ships in 2-12 days

0

0040-0030

Snapper 703916

NUT, HEX FLNG, 1/4-20

$4.99

$

In Stock, only 2 left!

0

0040-0040

Snapper 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0

0050

Snapper 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

0060

Snapper 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0070

Snapper 703914

NUT, HEX, KEPS,1/4-20

$3.49

$

In Stock, Qty 16

0

0080

Snapper 703916

NUT, HEX FLNG, 1/4-20

$4.99

$

In Stock, only 2 left!

0

0090

Snapper 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0100

Snapper 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0110

Snapper 84005360

BAFFLE, Bagging

$130.99

$

In Stock, only 1 left!

0

0120

Snapper 84005357

BAFFLE, Front

$100.99

$

Usually ships in 2-12 days

0

0130

Snapper 1759262BMYP

BLADE, 42"

$30.99

$

In Stock, only 3 left!

0
