1697367A-00 - Snapper 42" Bagging Boot Bagging Boot Parts Diagram

42" Bagging Boot

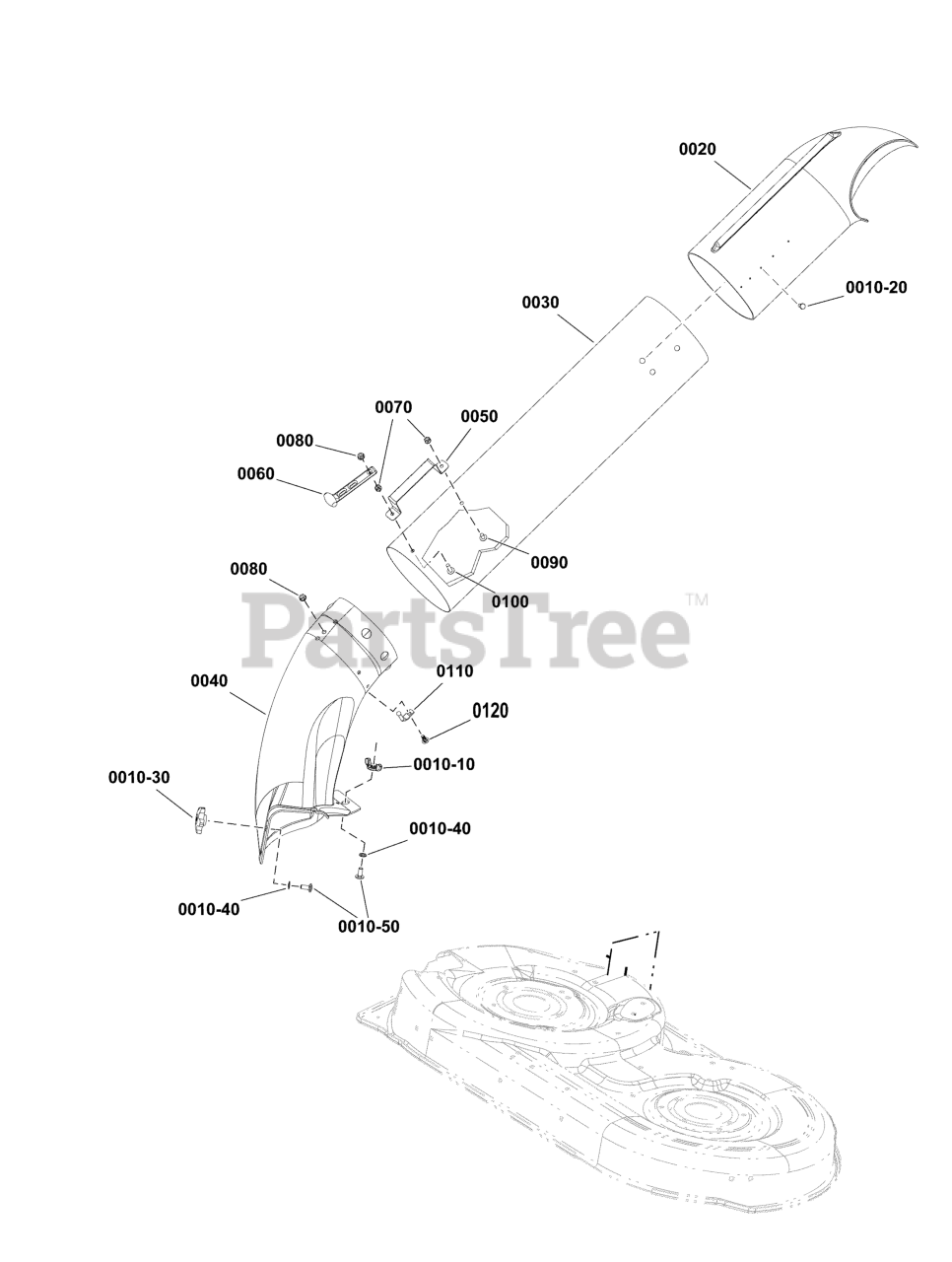

Bagging Boot Parts Diagram

  • Title

0010-10

Snapper 703141

NUT

$3.49

$

In Stock, only 3 left!

0

0010-20

Snapper 26X239MA

SCREW, 1/4 Phillips

$4.49

$

In Stock, only 2 left!

0

0010-30

Snapper 1733098SM

KNOB, Threaded, 5 Lobe, 5/16-18 x 3/4 Lg

$9.99

$

Usually ships in 2-12 days

0

0010-40

Snapper 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0010-50

Snapper 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 16

0

0020

Snapper 1733885SM

ELBOW, Upper Tube

$103.99

$

Usually ships in 2-12 days

0

0030

Snapper 1734299SM

TUBE, Clear Poly, ZTS Twin Catcher

$140.99

$

In Stock, Qty 6

0

0040

Snapper 1734367SM

TUBE, Boot Black Poly, 42" Mower

$222.99

$

Usually ships in 2-12 days

0

0050

Snapper 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 3 left!

0

0060

Snapper 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0070

Snapper 703914

NUT, HEX, KEPS,1/4-20

$3.49

$

In Stock, Qty 14

0

0080

Snapper 703916

NUT, HEX FLNG, 1/4-20

$4.99

$

In Stock, only 2 left!

0

0090

Snapper 004X24MA

SCREW, Slotted, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0100

Snapper 004X71MA

SCREW, Machine, 1/4-20 X 1

$4.99

$

In Stock, only 4 left!

0

0110

Snapper 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0120

Snapper 1960252SM

BOLT-RD HD SH SQ NK 1

$3.99

$

In Stock, only 1 left!

0
