1697364A-00 - Simplicity Triple Grass Catcher Triple Catcher Assembly Parts Diagram

Triple Grass Catcher

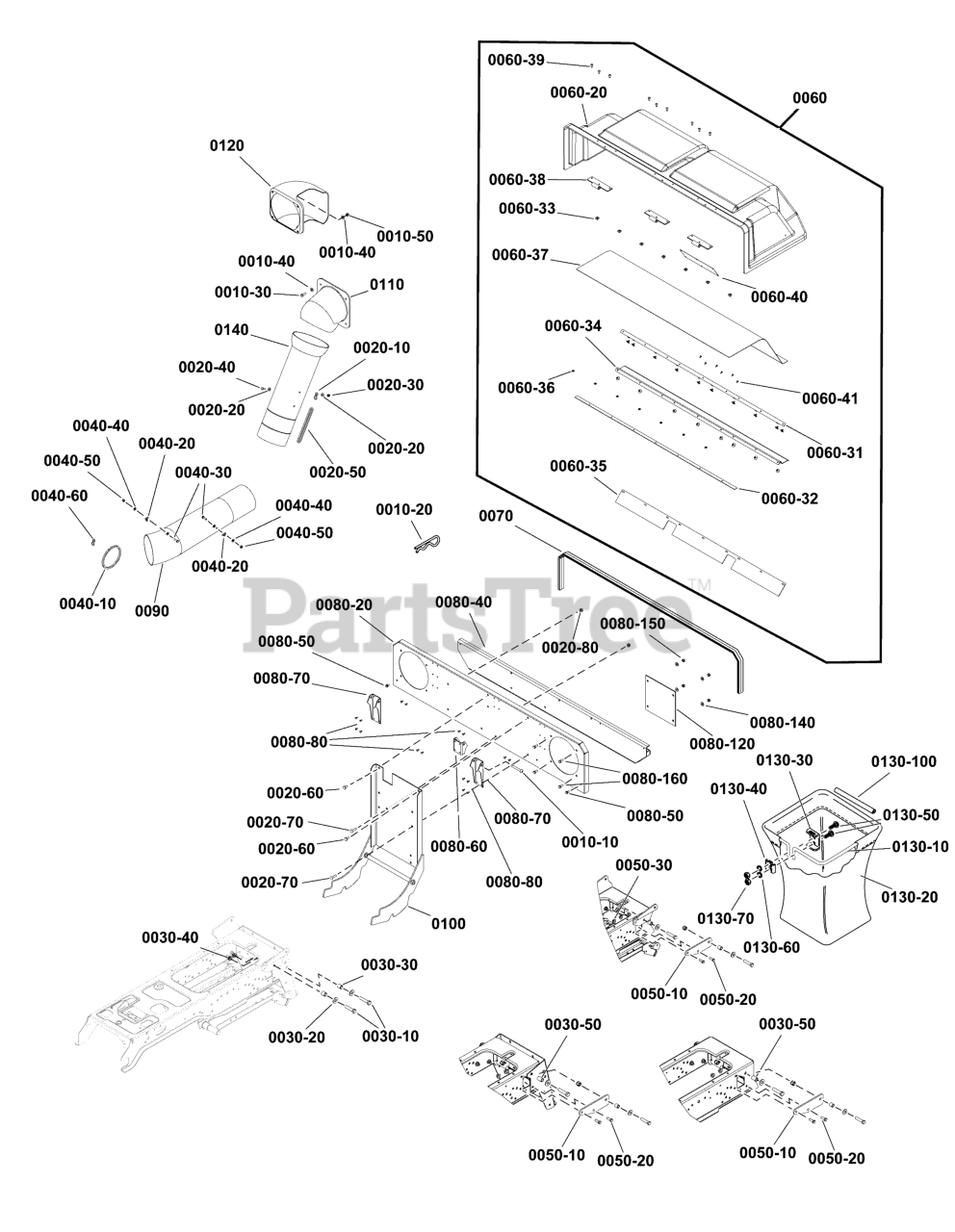

Triple Catcher Assembly Parts Diagram

  • Title

0010-10

Simplicity 1672344SM

PIN, Rolled 3/8 x 2-3/4

$6.49

$

In Stock, only 4 left!

0

0010-20

Simplicity 7091503SM

HAIR PIN, 3/32X1-1/2

$3.99

$

In Stock, Qty 20+

0

0010-30

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0010-40

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0010-50

Simplicity 703902

NUT, HEX, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0020-10

Simplicity 1672689SM

"S" HOOK

$31.99

$

Usually ships in 2-12 days

0

0020-20

Simplicity 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0020-30

Simplicity 5025095SM

NUT, 1/4-20 HEX NYLON

$3.49

$

In Stock, Qty 5

0

0020-40

Simplicity 703819

CAPSCREW,1/4-20X0.875

$4.49

$

Usually ships in 2-12 days

0

0020-50

Simplicity 2172744SM

STRAP, Rubber, Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

0020-60

Simplicity 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0020-70

Simplicity 703446

BOLT, 5/16-18X1.25 G5

$4.49

$

In Stock, Qty 9

0

0020-80

Simplicity 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 10

0

0030-10

Simplicity 5025017X18SM

BOLT, 1/2-13

$5.99

$

Usually ships in 2-12 days

0

0030-20

Simplicity 703451

WASHER, FLAT

$4.49

$

In Stock, Qty 20+

0

0030-30

Simplicity 703450

SPACER

$8.49

$

Usually ships in 2-12 days

0

0030-40

Simplicity 7091325YP

HLN, NYLON, 1/2C YZ

$4.99

$

In Stock, only 4 left!

0

0030-50

Simplicity 1722148SM

SPACER, .75 OD x .5 ID x 1.03"

$11.99

$

Usually ships in 2-12 days

0

0040-10

Simplicity 2172744SM

STRAP, Rubber, Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

0040-20

Simplicity 1723168SM

HOOK-.125DIA WIRE GR CAT STRAP YELLOW
(Superseded to 84003954)

$9.99

$

Usually ships in 2-12 days

0

0040-30

Simplicity 703819

CAPSCREW,1/4-20X0.875

$4.49

$

Usually ships in 2-12 days

0

0040-40

Simplicity 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0040-50

Simplicity 5025095SM

NUT, 1/4-20 HEX NYLON

$3.49

$

In Stock, Qty 5

0

0040-60

Simplicity 1672689SM

"S" HOOK

$31.99

$

Usually ships in 2-12 days

0

0050-10

Simplicity 1755436AYP

PLATE, SIde Extension

$80.99

$

Usually ships in 2-12 days

0

0050-20

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, Qty 6

0

0050-30

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRA

$3.49

$

In Stock, Qty 6

0

0060

Simplicity 84007744

COVER & SCREEN ASSEMBLY

$

$

Currently unavailable

0060-20

Simplicity 1717026YP

COVER-GRASS CATCHER B
(Superseded to 3046862YP)

$740.99

$

Usually ships in 2-12 days

0

0060-31

Simplicity 1717524ASM

CLAMP, Seal

$13.99

$

In Stock, only 2 left!

0

0060-32

Simplicity 1716970ASM

CLAMP

$42.99

$

Usually ships in 2-12 days

0

0060-33

RIVET, BLIND, 3/16 X 5/8

$

$

Not available

0060-34

Simplicity 1716972ASM

ANGLE, Screen

$42.99

$

In Stock, only 2 left!

0

0060-35

Simplicity 1716968SM

SEAL

$32.99

$

Usually ships in 2-12 days

0

0060-36

Simplicity 1910531SM

WASHER, Rivet, 3/16

$3.99

$

Usually ships in 2-12 days

0

0060-37

Simplicity 1717041SM

SCREEN

$43.99

$

Usually ships in 2-12 days

0

0060-38

Simplicity 1717067ASM

PLATE ASSSEMBLY

$30.99

$

Usually ships in 2-12 days

0

0060-39

Simplicity 1960241SM

RIVET, Pop, 1/4 x 1/2

$5.49

$

Usually ships in 2-12 days

0

0060-40

Simplicity 1732820SM

DECAL, Safety

$77.99

$

In Stock, only 1 left!

0

0060-41

Simplicity 1667248SM

CLIP, Canoe

$3.49

$

Usually ships in 2-12 days

0

0070

Simplicity 1717082SM

SEAL

$70.99

$

Usually ships in 2-12 days

0

0080-20

Simplicity 1716966ASM

PLATE ASSEMBLY

$225.99

$

Usually ships in 2-12 days

0

0080-40

Simplicity 1716973ASM

CHANNEL ASSEMBLY

$370.99

$

Usually ships in 2-12 days

0

0080-50

Simplicity 704130

SCREW, HEX, 1/4-20X.5

$3.99

$

In Stock, Qty 16

0

0080-60

Simplicity 1720945ASM

BRACKET, Hinge

$12.99

$

Usually ships in 2-12 days

0

0080-70

Simplicity 1720875ASM

HINGE

$16.99

$

Usually ships in 2-12 days

0

0080-80

Simplicity 703981

RIVET, 3/16

$4.49

$

In Stock, only 2 left!

0

0080-120

Simplicity 1725969SM

COVER, Inlet

$29.99

$

Usually ships in 2-12 days

0

0080-140

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0080-150

Simplicity 703902

NUT, HEX, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0080-160

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, only 3 left!

0

0090

Simplicity 1723166SM

TUBE, Lower

$103.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1755661AYP

HITCH ASSEMBLY

$398.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1717038SM

JOINT, Inlet

$125.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1717039SM

DEFLECTOR

$96.99

$

Usually ships in 2-12 days

0

0130-10

Simplicity 1703855ASM

HOOP, GRASS BAG BL

$139.99

$

Usually ships in 2-12 days

0

0130-20

Simplicity 1703764SM

BAG-GRASS 15.9 X 16.5

$96.99

$

In Stock, only 3 left!

0

0130-30

Simplicity 1703807ASM

HANGER, Grass Bag Hoop, 10 Gauge Twin

$21.99

$

In Stock, only 2 left!

0

0130-40

Simplicity 1672023ASM

CLAMP, GRASS BAG - BL

$11.99

$

Usually ships in 2-12 days

0

0130-50

Simplicity 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0130-60

Simplicity 5025170SM

WASHER, 5/16" LOCK

$3.99

$

In Stock, only 1 left!

0

0130-70

Simplicity 5025032SM

NUT, 5/16-18 HEX

$3.49

$

Usually ships in 2-12 days

0

0130-100

Simplicity 1675707SM

CLIP, TUBE, GRASS BAG

$6.49

$

In Stock, only 3 left!

0

0140

Simplicity 1719807SM

CHUTE, Grass Catcher

$152.99

$

Usually ships in 2-12 days

0
