1697362A-00 - Simplicity Turbo Blower System Kit Turbo Mounting Group Parts Diagram

Turbo Blower System Kit

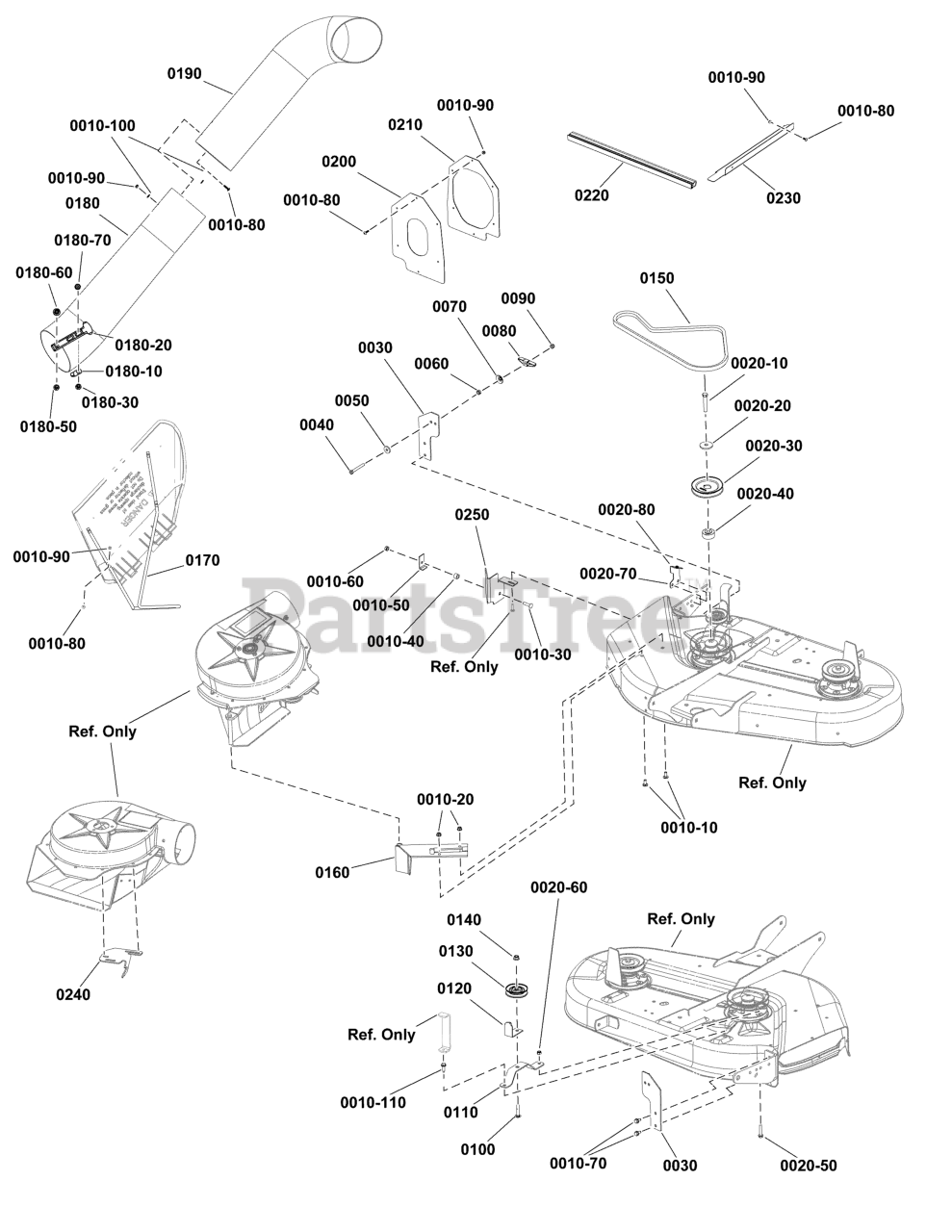

Turbo Mounting Group Parts Diagram

  • Title

0010-10

Simplicity 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 12

0

0010-20

Simplicity 5025127SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, Qty 7

0

0010-30

Simplicity 703446

BOLT, 5/16-18X1.25 G5

$4.49

$

In Stock, Qty 5

0

0010-40

Simplicity 1666294SM

SPACER, .385 ID x .6697 OD x .455 Long

$4.99

$

In Stock, Qty 20+

0

0010-50

Simplicity 1705308ASM

BRACKET, L 12GA 1.00WD 1.98LG 0.62LG

$33.99

$

Usually ships in 2-12 days

0

0010-60

Simplicity 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0010-70

Simplicity 703949

SCREW, 5/16-18.625

$3.99

$

In Stock, only 3 left!

0

0010-80

Simplicity 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

In Stock, only 4 left!

0

0010-90

Simplicity 703412

NUT, NYLOCK, 10-24

$4.49

$

In Stock, only 2 left!

0

0010-100

Simplicity 1910531SM

WASHER, Rivet, 3/16

$3.99

$

Usually ships in 2-12 days

0

0010-110

Simplicity 704146

SCREW, HEX, 5/16-18X1

$3.99

$

In Stock, Qty 20+

0

0020-10

Simplicity 706301

CAPSCREW, Hex Head, 7/16-20 X 2 1/2, GR5

$5.99

$

Usually ships in 2-12 days

0

0020-20

Simplicity 1656916SM

WASHER, SPRING 0.475I

$7.49

$

In Stock, Qty 20+

0

0020-30

Simplicity 1709941SM

PULLEY, 4-5/16" OD

$28.99

$

Usually ships in 2-12 days

0

0020-40

Simplicity 706362

SPACER, HUB

$9.99

$

Usually ships in 2-12 days

0

0020-50

Simplicity 2860678SM

SCREW-HEX WSHR HD TAP

$4.49

$

In Stock, only 2 left!

0

0020-60

Simplicity 5025057SM

NUT, Hex Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0020-70

Simplicity 1757997AYP

BRACKET

$16.99

$

Usually ships in 2-12 days

0

0020-80

Simplicity 1726642SM

DECAL, Height Of Cut, 1 2 3 4

$10.99

$

In Stock, only 2 left!

0

0030

Simplicity 1724370ASM

BRACE, Turbo

$11.99

$

Usually ships in 2-12 days

0

0040

Simplicity 703868

SCREW

$4.99

$

In Stock, only 3 left!

0

0050

Simplicity 1919381SM

WASHER, Flat, .34 ID x 1" OD
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0060

Simplicity 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0070

Simplicity 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 2 left!

0

0080

Simplicity 703065

WINGKNOB, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0090

Simplicity 703902

NUT, HEX, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0100

Simplicity 703858

BOLT, 3/8-16X1.75

$4.99

$

In Stock, Qty 6

0

0110

Simplicity 1759885CKYP

BRACKET, Idler Pulley

$67.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1724373ASM

BRACKET, L 12GA 1.24WD 2.24LG 2.28LG

$17.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1721134SM

PULLEY, 3" OD

$30.99

$

In Stock, Qty 20+

0

0140

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 1737416YP

BELT, COG - 48.25 LG

$40.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1722546ASM

PIVOT & BRACKETS ASSEMBLY, 38, 44 & 50"

$216.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1718295ASM

SUPPORT ROD, Deflector

$112.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1719719SM

ASSEMBLY, Tube & Clip, Lower

Note: ( Incl. Ref. Nos. 0180-10, 0180-20, 0180-30, 0180-40, 0180-50, 0180-60 & 0180-70 )

$170.99

$

Usually ships in 2-12 days

0

0180-10

Simplicity 054563MA

PIN, Latch

Note: ( Included with Ref. No. 0180 )

$23.99

$

In Stock, only 2 left!

0

0180-20

Simplicity 2171600SM

STRAP, Hood Rubber

Note: ( Included with Ref. No. 0180 )

$7.99

$

In Stock, Qty 20+

0

0180-30

Simplicity 1960252SM

BOLT-RD HD SH SQ NK 1

Note: ( Included with Ref. No. 0180 )

$3.99

$

In Stock, only 1 left!

0

0180-50

Simplicity 703575

BOLT, 1/4-20X.750, SQ

Note: ( Included with Ref. No. 0180 )

$3.99

$

In Stock, only 2 left!

0

0180-60

Simplicity 703161

NUT

Note: ( Included with Ref. No. 0180 )

$3.49

$

In Stock, Qty 20+

0

0180-70

Simplicity 703233

NUT, 1/4-20, GR5

Note: ( Included with Ref. No. 0180 )

$4.49

$

In Stock, Qty 5

0

0190

Simplicity 1732800SM

ELBOW, Vacuum

$74.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1733741YP

SEAL

$29.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1732735ASM

FLANGE, Seal

$40.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1733579SM

EDGING, 21-1/2"
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1733580ASM

PLATE, Deflector

$36.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1733077ASM

LATCH - 38" Turbo

$56.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1733076ASM

DEFLECTOR

$114.99

$

Usually ships in 2-12 days

0
