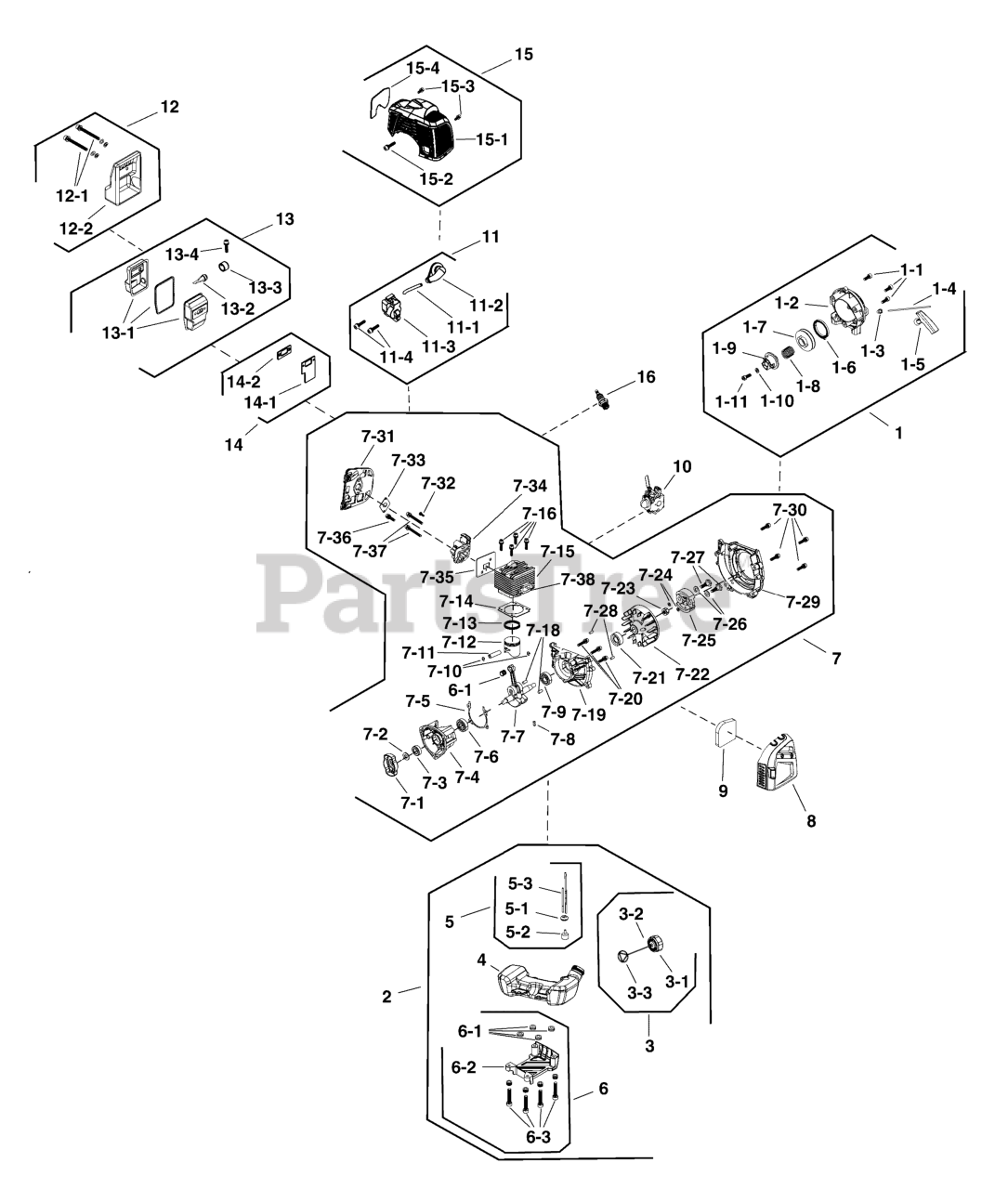

1697117-A - Murray 25.4cc String Trimmer Engine Group Parts Diagram

25.4cc String Trimmer

Engine Group Parts Diagram

  • Title

--

Murray TR02481A

ENGINE 25.4CC 2ST TRIMMER

Note: (Incl. Ref. Nos. 1 through 15)

$

$

Currently unavailable

1

Murray TR02163A

STARTER ASSEMBLY

Note: (Incl. Ref. Nos. 1-1 through 1-11)

$

$

Currently unavailable

1-1

SCREW WASHER ASSEMBLY M5 x 12MM

$

$

Not available

1-2

STARTER HOUSING

$

$

Not available

1-3

GROMMET, Eyelet

$

$

Not available

1-4

STARTER CHORD 2.5 x 800MM

$

$

Not available

1-5

HANDLE

$

$

Not available

1-6

COIL SPRING

$

$

Not available

1-7

STARTER PULLEY

$

$

Not available

1-8

SPRING

$

$

Not available

1-9

RATCHET WHEEL

$

$

Not available

1-10

WASHER ø5 X ø11 X 1.8MM

$

$

Not available

1-11

ST SCREW 4.8 x 16MM

$

$

Not available

2

Murray TR02161A

FUEL TANK ASSEMBLY

Note: (Incl. Ref. Nos. 3 through 6)

$

$

Currently unavailable

3

Murray TR02156A

FUEL CAP ASSEMBLY

Note: (Incl. Ref. Nos. 3-1 through 3-3)

$

$

Currently unavailable

3-1

FUEL CAP

$

$

Not available

3-2

O RING

$

$

Not available

3-3

FUEL CAP LOCK

$

$

Not available

4

Murray TR02170A

FUEL TANK

$

$

Currently unavailable

5

Murray TR02168A

FUEL FILTER ASSEMBLY

Note: (Incl. Ref. Nos. 5-1 through 5-3)

$

$

Currently unavailable

5-1

BALANCER, FUEL FILTER

$

$

Not available

5-2

FUEL FILTER

$

$

Not available

5-3

FUEL FILTER PIPING

$

$

Not available

6

Murray TR02171A

FUEL TANK BASE ASSEMBLY

Note: (Incl. Ref. Nos. 6-1 through 6-3)

$

$

Currently unavailable

6-1

RUBBER DAMPENER

$

$

Not available

6-2

BASE, FUEL TANK

$

$

Not available

6-3

SCREW WASHER ASSEMBLY M5 x 25MM

$

$

Not available

7

Murray TR02169A

25.4CC SHORT BLOCK ASSEMBLY

Note: (Incl. Ref. Nos. 7-1 through 7-38)

$

$

Currently unavailable

7-1

Murray TR02211A

START REEL

$

$

Currently unavailable

7-2

WASHER M8 x 1.8MM

$

$

Not available

7-3

OIL-SEAL 12 x 22 x 7MM

$

$

Not available

7-4

CRANK CASE HOUSING RH

$

$

Not available

7-5

GASKET CRANK CASE

$

$

Not available

7-6

BEARING 6001

$

$

Not available

7-7

CRANK SHAFT ASSEMBLY

$

$

Not available

7-8

KEY 3 x 3.5 x 10MM

$

$

Not available

7-9

BEARING 6001 8 × 11 × 11MM

$

$

Not available

7-10

CIRCLIP

$

$

Not available

7-11

PISTON PIN

$

$

Not available

7-12

PISTON

$

$

Not available

7-13

PISTON RING

$

$

Not available

7-14

GASKET CYLINDER

$

$

Not available

7-15

CYLINDER

$

$

Not available

7-16

SCREW WASHER ASSEMBLY M5 x 20MM

$

$

Not available

7-18

PIN ø5 x 10MM

$

$

Not available

7-19

CRANK CASE LH

$

$

Not available

7-20

SCREW WASHER ASSEMBLY M5 x 25MM

$

$

Not available

7-21

OIL-SEAL 12 x 22 x 7MM

$

$

Not available

7-22

MAGNETO ROTOR

$

$

Not available

7-23

FLANGED NUT M8 x 10MM

$

$

Not available

7-24

FLAT WASHER

$

$

Not available

7-25

CLUTCH ASSEMBLY

$

$

Not available

7-26

WASHER

$

$

Not available

7-27

BOLT

$

$

Not available

7-28

PIN ø4 x 10MM

$

$

Not available

7-29

FLYWHEEL COVER

$

$

Not available

7-30

SCREW WASHER ASSEMBLY M5 x 20MM

$

$

Not available

7-31

AIR FILTER BASE

$

$

Not available

7-32

SCREW WASHER ASSEMBLY M5 x 45MM

$

$

Not available

7-33

GASKET MANIFOLD

$

$

Not available

7-34

MANIFOLD

$

$

Not available

7-35

PRESSURE PLATE

$

$

Not available

7-36

ST SCREW 3.5 x 9.5MM

$

$

Not available

7-37

SCREW WASHER ASSEMBLY M5 x 20MM

$

$

Not available

7-38

GASKET CARBURETOR

$

$

Not available

8

AIR FILTER COVER

$

$

Not available

9

FOAM AIR FILTER

$

$

Not available

10

Murray TR02162A

CARBURETOR ASSEMBLY

$

$

Currently unavailable

11

Murray TR02172A

IGNITION COIL ASSEMBLY

Note: (Incl. Ref. Nos. 11-1 through 11-4)

$

$

Currently unavailable

11-1

WIRING HARNESS ASSEMBLY

$

$

Not available

11-2

SPARK PLUG COVER ASSEMBLY

$

$

Not available

11-3

IGNITION COIL ASSEMBLY

$

$

Not available

11-4

SCREW WASHER ASSEMBLY M5 x 20MM

$

$

Not available

12

Murray TR02173A

MUFFLER HOUSING COVER ASSEMBLY

Note: (Incl. Ref. Nos. 12-1 & 12-2)

$

$

Currently unavailable

12-1

SCREW WASHER ASSEMBLY M5 x 52MM

$

$

Not available

12-2

MUFFLER HOUSING COVER

$

$

Not available

13

Murray TR02165A

MUFFLER ASSEMBLY

Note: (Incl. Ref. Nos. 13-1 through 13-4)

$

$

Currently unavailable

13-1

MUFFLER, NO CAT CONVERTER

$

$

Not available

13-2

SPARK ARRESTOR MESH

$

$

Not available

13-3

SEAL

$

$

Not available

13-4

SCREW WASHER ASSEMBLY M5 x 15MM

$

$

Not available

14

Murray TR02174A

MUFFLER GASKET ASSEMBLY

Note: (Incl. Ref. Nos. 14-1 & 14-2)

$

$

Currently unavailable

14-1

INNER GASKET MUFFLER

$

$

Not available

14-2

OUTER GASKET MUFFLER

$

$

Not available

15

Murray TR02486A

ENGINE TOP COVER, BLACK

Note: (Incl. Ref. Nos. 15-1 through 15-4)

$

$

Currently unavailable

15-1

TRIMMER TOP HOUSING

$

$

Not available

15-2

ST SCREW 4.8 x 16MM

$

$

Not available

15-3

SCREW M4 x 12MM

$

$

Not available

15-4

REFLECTIVE THERMAL GASKET

$

$

Not available

16

Murray HA25735A

SPARK PLUG

$

$

Currently unavailable
