1697101-00 - Snapper 36" Bagging Boot & Baffle Bagging Boot & Baffle Parts Diagram

36" Bagging Boot & Baffle

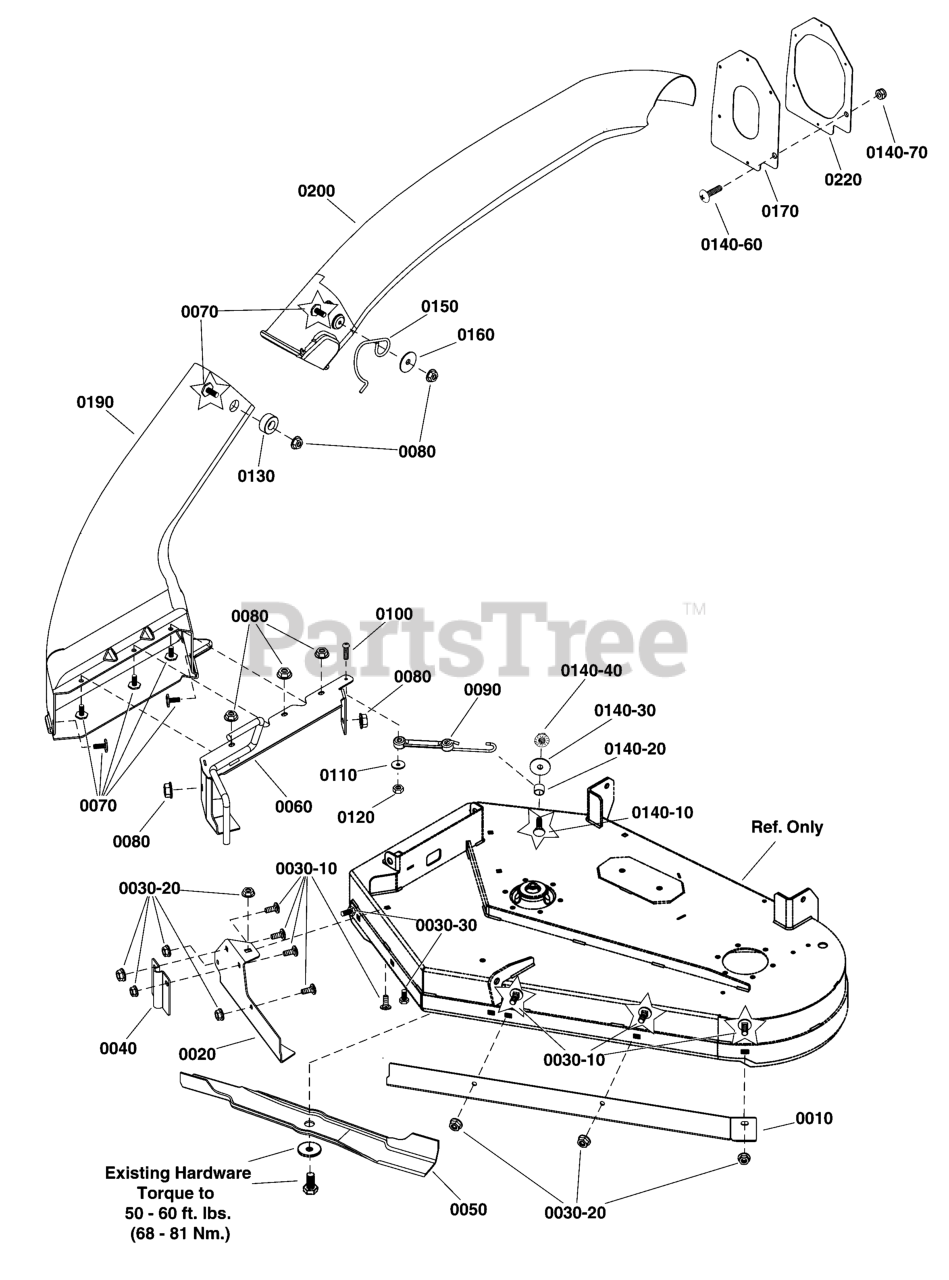

Bagging Boot & Baffle Parts Diagram

  • Title

0010

Snapper 84002834

BAFFLE, Front, Trimside

$34.99

$

Usually ships in 2-12 days

0

0020

Snapper 84002835

BAFFLE, Front, Discharge

$30.99

$

Usually ships in 2-12 days

0

--

HARDWARE BAG

Note: (Not a serviceable part, includes Ref. Nos. 0030-10 & 0030-20. Order components separately)

$

$

Not available

0030-10

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0030-20

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 14

0

0030-30

Snapper 1960371SM

SCREW, Head Head, 5/16-18 x 3/4

$5.49

$

Usually ships in 2-12 days

0

0040

Snapper 1726578ASM

PLATE, Chute Rod

$32.99

$

Usually ships in 2-12 days

0

0050

Snapper 84002838

BLADE, Hi Lift
(Superseded to 1760200YP)

$30.99

$

In Stock, Qty 13

0

0060

Snapper 84002829

ADAPTER, Boot

$92.99

$

Usually ships in 2-12 days

0

0070

Snapper 1960371SM

SCREW, Head Head, 5/16-18 x 3/4

$5.49

$

Usually ships in 2-12 days

0

0080

Snapper 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 7036433SM

STRAP, Mounting Bag

$31.99

$

In Stock, only 1 left!

0

0100

Snapper 1960393SM

SCREW, Phillips, Pan Head, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0110

Snapper 7036404SM

NUT, Weld, 10-24

$3.49

$

Usually ships in 2-12 days

0

0120

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0130

Snapper 1704341SM

WASHER, Special, 11/32 x 7/8 x 1-3/4

$42.99

$

Usually ships in 2-12 days

0

--

HARDWARE BAG

Note: (Not a serviceable part, includes Ref. Nos. 0140-10 through 0140-70. Order components separately)

$

$

Not available

0140-10

Snapper 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, Qty 5

0

0140-20

Snapper 1728024SM

SPACER, Foot Pedal

$4.99

$

Usually ships in 2-12 days

0

0140-30

Snapper 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, only 3 left!

0

0140-40

Snapper 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0140-60

Snapper 1960404SM

SCREW, Truss Head, Phillips, #10-24 x 3/4,

$3.99

$

In Stock, only 4 left!

0

0140-70

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0150

Snapper 1704603SM

LATCH, Wire Form

$6.49

$

Usually ships in 2-12 days

0

0160

Snapper 1960185SM

WASHER, 5/16 x 2-1/8 OD

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper 1733741YP

SEAL

$29.99

$

Usually ships in 2-12 days

0

0190

Snapper 84002836

BOOT, Grass Catcher

$204.99

$

Usually ships in 2-12 days

0

0200

Snapper 84002837

TUBE, Grass Catcher

$139.99

$

Usually ships in 2-12 days

0

0220

Snapper 1732735ASM

FLANGE, Seal

$40.99

$

Usually ships in 2-12 days

0
