1697080 - Murray 18V Hedge Trimmer Hedge Trimmer Parts Diagram

18V Hedge Trimmer

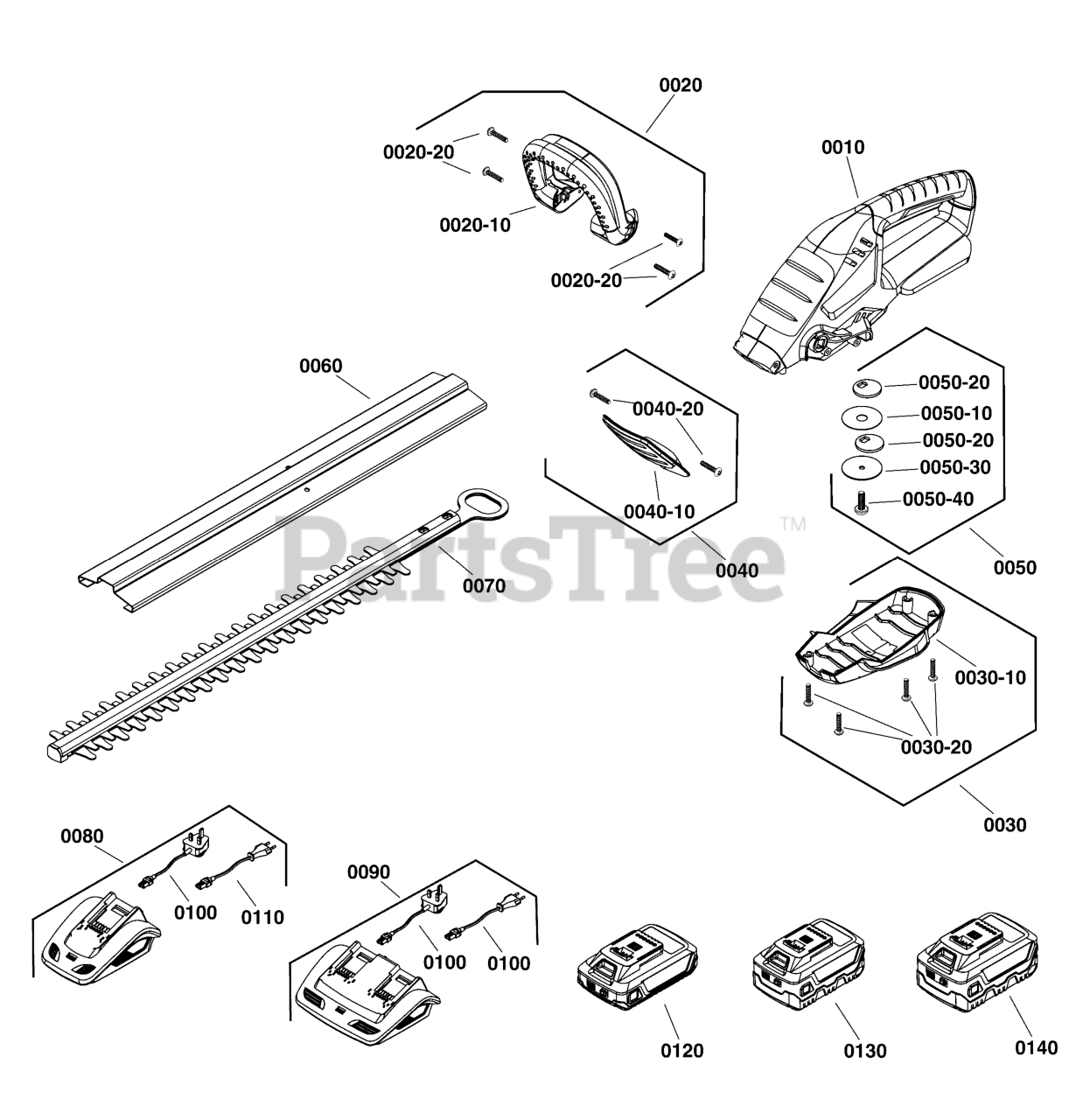

Hedge Trimmer Parts Diagram

  • Title

0010

Murray BP20196A

POWER HEAD, Hedge Trimmer, 18V

$

$

Currently unavailable

0020

Murray BP20197A

FRONT HANDLE ASSEMBLY

Note: (Includes Ref. Nos. 0020-10 & 0020-20)

$

$

Currently unavailable

0020-10

HANDLE, Hedge Trimmer

$

$

Not available

0020-20

SCREW, ST2.9 x 10, Tamper Proof

$

$

Not available

0030

Murray BP20153A

BOTTOM COVER ASSEMBLY

Note: (Includes Ref. Nos. 0030-10 & 0030-20)

$

$

Currently unavailable

0030-10

COVER, Bottom

$

$

Not available

0030-20

SCREW, ST2.9 x 10, Tamper Proof

$

$

Not available

0040

Murray BP20117A

HAND GUARD ASSEMBLY

Note: (Includes Ref. Nos. 0040-10 & 0040-20)

$

$

Currently unavailable

0040-10

GUARD, Hand

$

$

Not available

0040-20

SCREW, ST2.9 x 10, Tamper Proof

$

$

Not available

0050

Murray BP20160A

KIT, Washer, Hedge Trimmer

Note: (Includes Ref. Nos. 0050-10 through 0050-40)

$

$

Currently unavailable

0050-10

SPACER

$

$

Not available

0050-20

WASHER, Cam

$

$

Not available

0050-30

WASHER, Flat

$

$

Not available

0050-40

BOLT

$

$

Not available

0060

Murray BP20119A

COVER, Blade

$

$

Currently unavailable

0070

Murray BP20231A

BLADE BAR ASSEMBLY

$

$

Currently unavailable

0080

Murray 1697083

CHARGER, 18V, 3A

Note: (Option, Includes Ref. Nos. 0100 & 0110)

$

$

Currently unavailable

0090

Murray 1697084

CHARGER, Twin, 18V 6A

Note: (Option, Includes Ref. Nos. 0100 & 0110)

$

$

Currently unavailable

0100

Murray BP20190A

ELECTRICAL CORD UK, 18V Charger

Note: (Option)

$

$

Currently unavailable

0110

Murray BP20189A

ELECTRICAL CORD EU, 18V Charger

Note: (Option)

$

$

Currently unavailable

0120

Murray 883251

BATTERY, 18V, 2.5AH

Note: (Option)

$

$

Currently unavailable

0130

Murray 883252

BATTERY, 18V, 4.0AH

Note: (Option)

$

$

Currently unavailable

0140

Murray 883253

BATTERY, 18V, 5.0AH

Note: (Option)

$

$

Currently unavailable
