1696938-00 - Simplicity Mulch Kit with Eliminator for 50" Mower Mulch Kit Parts Diagram

Mulch Kit with Eliminator for 50" Mower

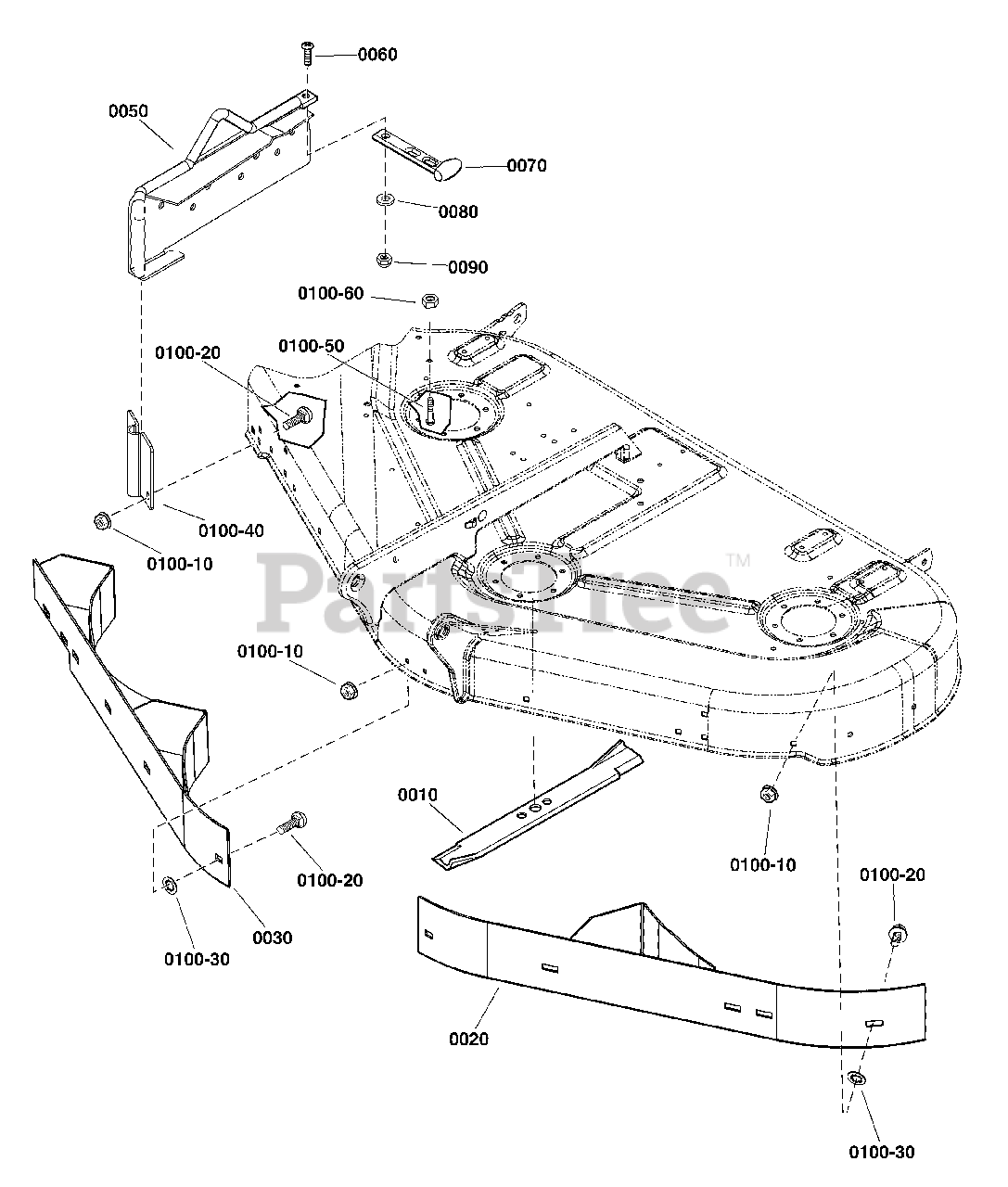

Mulch Kit Parts Diagram

  • Title

0010

Simplicity 1721086ASM

BLADE, Mower

$27.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1716150ASM

BAFFLE & DEFLECTOR, LH 50"

$185.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1726913ASM

BAFFLE & DEFLECTOR, RH 50"

$131.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1732349ASM

BAFFLE ASSEMBLY, Mulcher 50"

$286.99

$

In Stock, only 1 left!

0

0060

Simplicity 1960393SM

SCREW, Phillips, Pan Head, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0070

Simplicity 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0080

Simplicity 1960096SM

WASHER, 3/16

$3.99

$

Usually ships in 2-12 days

0

0090

Simplicity 703412

NUT, Nylock, #10-24, GR2

$4.49

$

Usually ships in 2-12 days

0

--

Simplicity 1761852

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Currently unavailable

0100-10

Simplicity 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 14

0

0100-20

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0100-30

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0100-40

Simplicity 1726578ASM

PLATE, Chute Rod Mounting

$32.99

$

Usually ships in 2-12 days

0

0100-50

Simplicity 704214

BOLT, Carriage, Short Neck, 1/4-20 x 1 1/2, GR5

$3.99

$

Usually ships in 2-12 days

0

0100-60

Simplicity 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0
