1696915-02 - Ferris Grass Mulcher Kit for 42" Fabricated Mower Deck 42" Mulching Kit Parts Diagram

Grass Mulcher Kit for 42" Fabricated Mower Deck

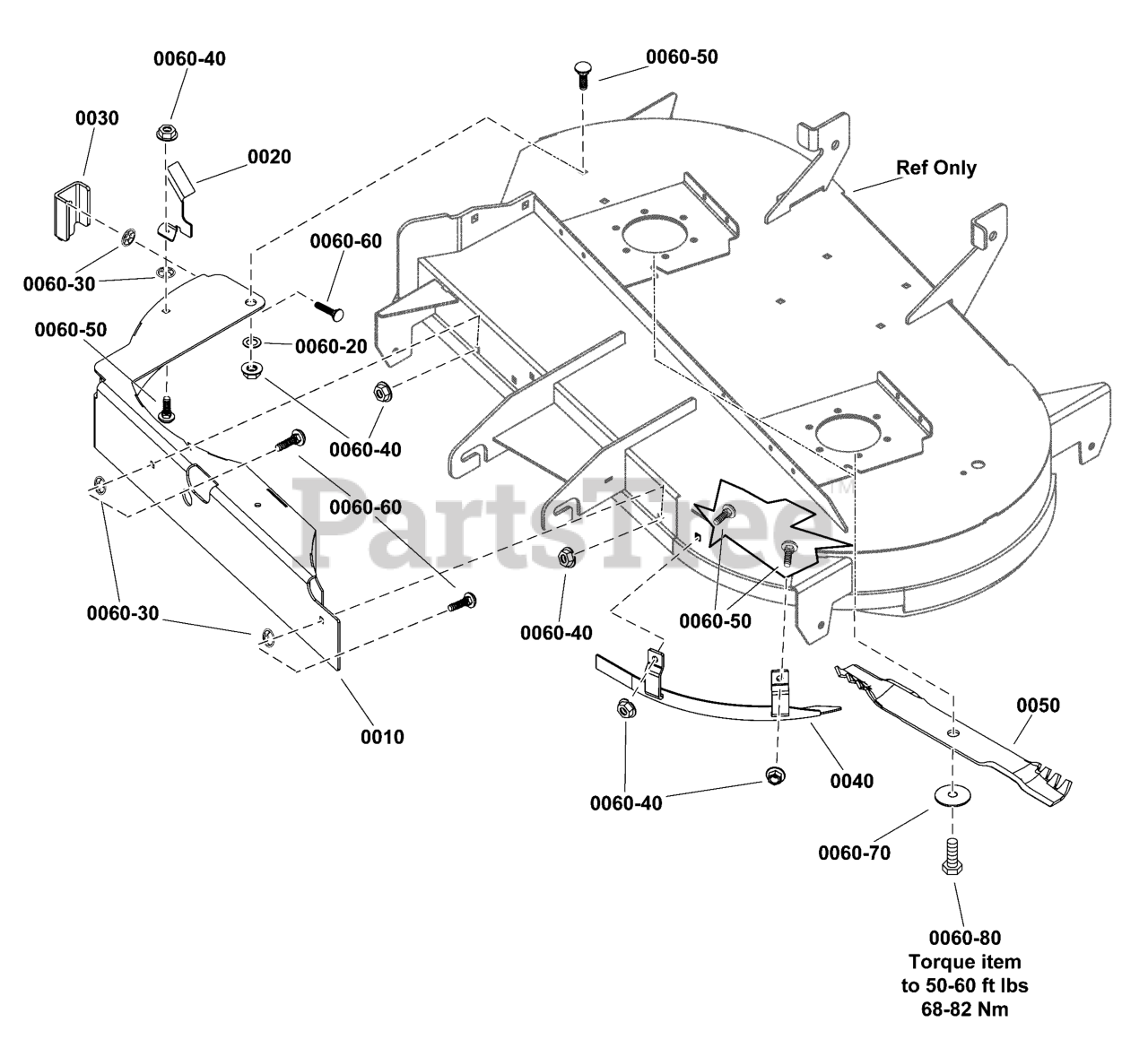

42" Mulching Kit Parts Diagram

  • Title

0010

Ferris 84005359

BAFFLE, Mulching

$

$

Currently unavailable

0020

Ferris 1761755CKYP

SUPPORT, Deflector

$

$

Currently unavailable

0030

Ferris 1761875CKYP

LATCH, Discharge

$

$

Currently unavailable

0040

Ferris 84005357

BAFFLE, Front

$

$

Currently unavailable

0050

Ferris 1760645CJYP

BLADE, Mulching

$

$

Currently unavailable

--

Ferris 1761808

HARDWARE BAG

Note: (Not a serviceable part. Includes items 0060-20 thru 0060-80. Order components separately)

$

$

Currently unavailable

0060-20

Ferris 1960141SM

WASHER, 5/16

$

$

Currently unavailable

0060-30

Ferris 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0060-40

Ferris 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0060-50

Ferris 704065

BOLT, 5/16-18X.875

$

$

Currently unavailable

0060-60

Ferris 703225

BOLT

$

$

Currently unavailable

0060-70

Ferris 1656916SM

WASHER, SPRING 0.475I

$7.49

$

In Stock, Qty 20+

0

0060-80

Ferris 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0
