1696915-00 - Snapper Mulch Kit for 42" Fab Mower 42" Mulching Kit Parts Diagram

Mulch Kit for 42" Fab Mower

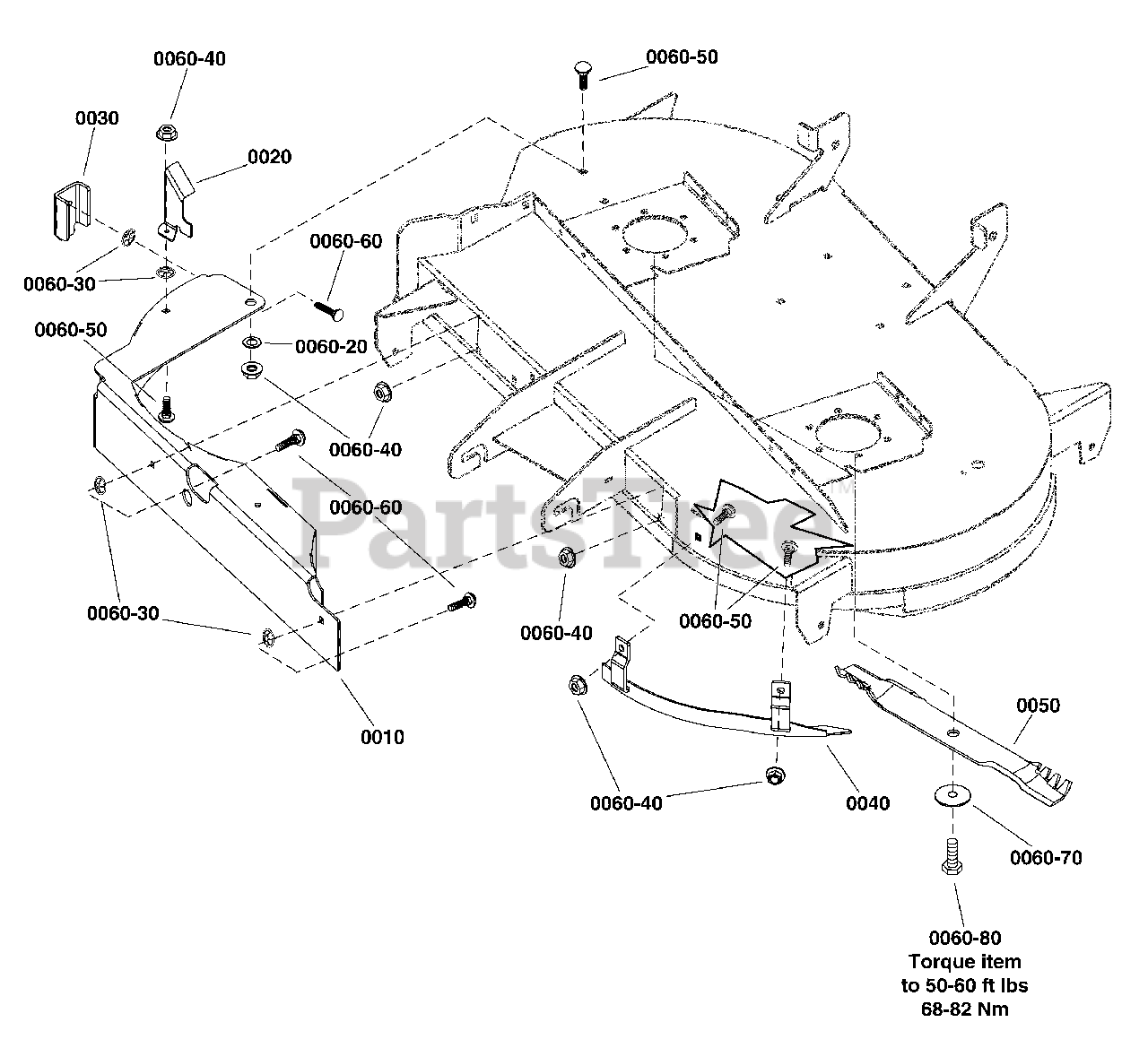

42" Mulching Kit Parts Diagram

  • Title

0010

Snapper 1761754CKYP

BAFFLE, Mulching

$259.99

$

Usually ships in 2-12 days

0

0020

Snapper 1761755CKYP

SUPPORT, Deflector

$22.99

$

Usually ships in 2-12 days

0

0030

Snapper 1761875CKYP

LATCH, Discharge

$25.99

$

Usually ships in 2-12 days

0

0040

Snapper 1759309AYP

BAFFLE, Front, Trimside

$106.99

$

Usually ships in 2-12 days

0

0050

Snapper 1760645CJYP

BLADE, Mulching

$

$

Not available

--

Snapper 1761808

HARDWARE BAG

Note: (Not a serviceable part. Includes items 0060-20 thru 0060-80. Order components separately)

$

$

Currently unavailable

0060-20

Snapper 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0060-30

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0060-40

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0060-50

Snapper 704065

BOLT, Carriage, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0

0060-60

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0060-70

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0060-80

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0
