1696909 - Snapper Mulch Kit for 48" Fab Mower 48" Mulching Kit Parts Diagram

Mulch Kit for 48" Fab Mower

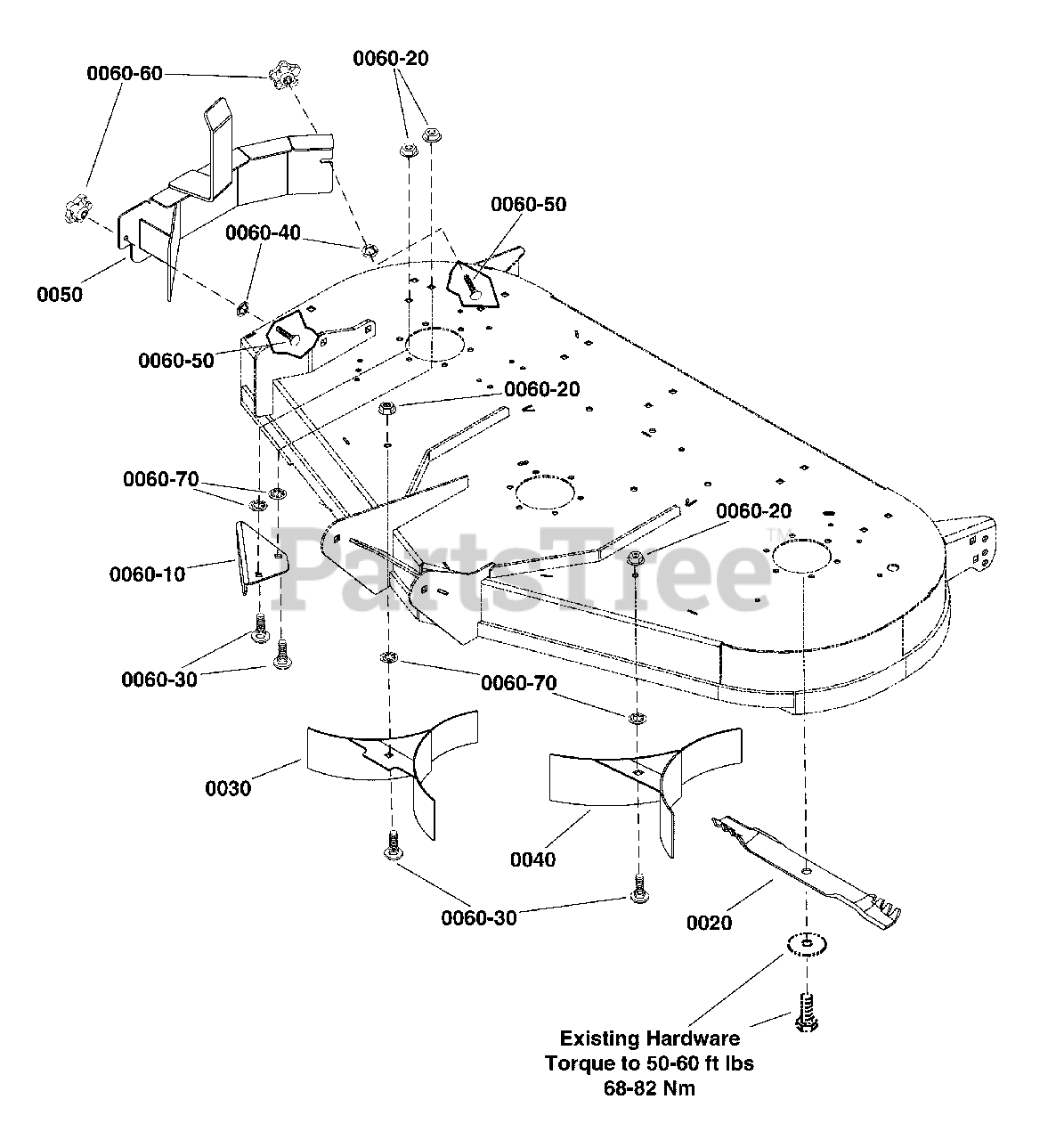

48" Mulching Kit Parts Diagram

  • Title

0020

Snapper 1760647CJYP

BLADE, Mulching, 48"
(Superseded to 1760647YP)

$29.99

$

In Stock, Qty 5

0

0030

Snapper 1761361CKYP

BAFFLE, Mulching, RH

$146.99

$

Usually ships in 2-12 days

0

0040

Snapper 1761365CKYP

BAFFLE, Mulching, LH

$153.99

$

Usually ships in 2-12 days

0

0050

Snapper 1761369CKYP

COVER, Mulching

$140.99

$

Usually ships in 2-12 days

0

0060

Snapper 1761899

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Currently unavailable

0060-10

Snapper 706368

BAFFLE, Pinchoff

$107.99

$

Usually ships in 2-12 days

0

0060-20

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0060-30

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0060-40

Snapper 703826

NUT, Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0060-50

Snapper 703584

BOLT, Carriage, 1/4-20 x 1

$3.99

$

In Stock, Qty 9

0

0060-60

Snapper 706490

HANDLE, 5 Prong

$14.99

$

In Stock, Qty 10

0

0060-70

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

--

Snapper 1696909

KIT, Grass Mulcher, 48"

$421.99

$

Usually ships in 2-12 days

0
