1696908 - Simplicity Mulch Kit with Eliminator for 52" Mower 52" Mulching Kit Parts Diagram

Mulch Kit with Eliminator for 52" Mower

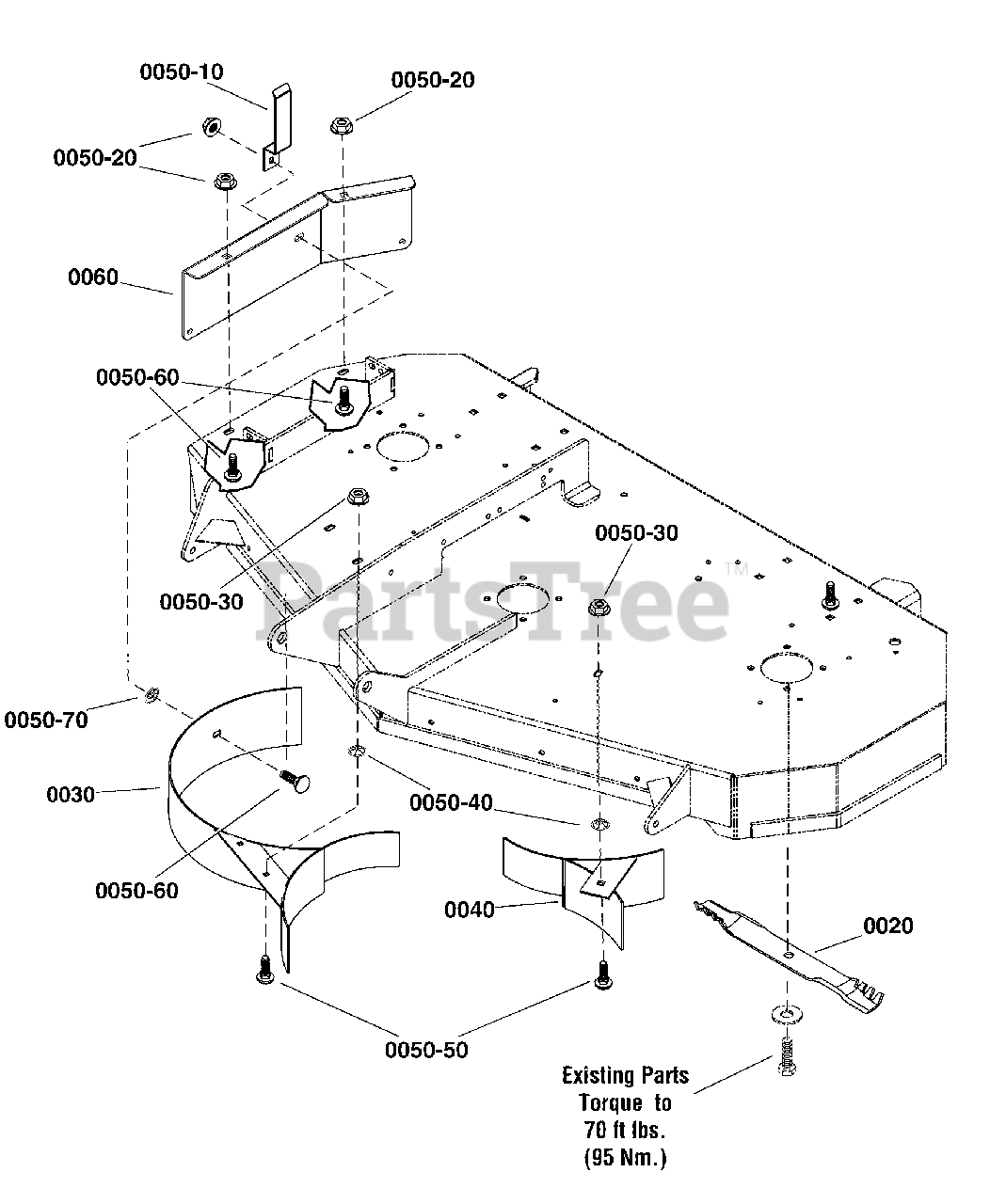

52" Mulching Kit Parts Diagram

  • Title

0020

Simplicity 1760648CJYP

BLADE, Mulching, 52"

$

$

Not available

0030

Simplicity 1760350CKYP

BAFFLE, Mulch, RH

$

$

Currently unavailable

0040

Simplicity 1761355CKYP

BAFFLE, Mulch, LH

$119.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1761894

Hardware Bag

Note: (Not a serviceable part)

$

$

Currently unavailable

0050-10

Simplicity 1756849AYP

PROP, Deflector

$28.99

$

Usually ships in 2-12 days

0

0050-20

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0050-30

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0050-40

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0050-50

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0050-60

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0050-70

Simplicity 703986

RETAINER, Pushnut, 3/8

$4.49

$

Usually ships in 2-12 days

0

0060

Simplicity 5409215AYP

PLATE, Block Off

$53.99

$

Usually ships in 2-12 days

0

--

Simplicity 1696908

KIT, Grass Mulcher, 52"

$423.99

$

Usually ships in 2-12 days

0
