1696906-00 - Simplicity 48"/122cm Mower Deck 48" (122cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

48"/122cm Mower Deck

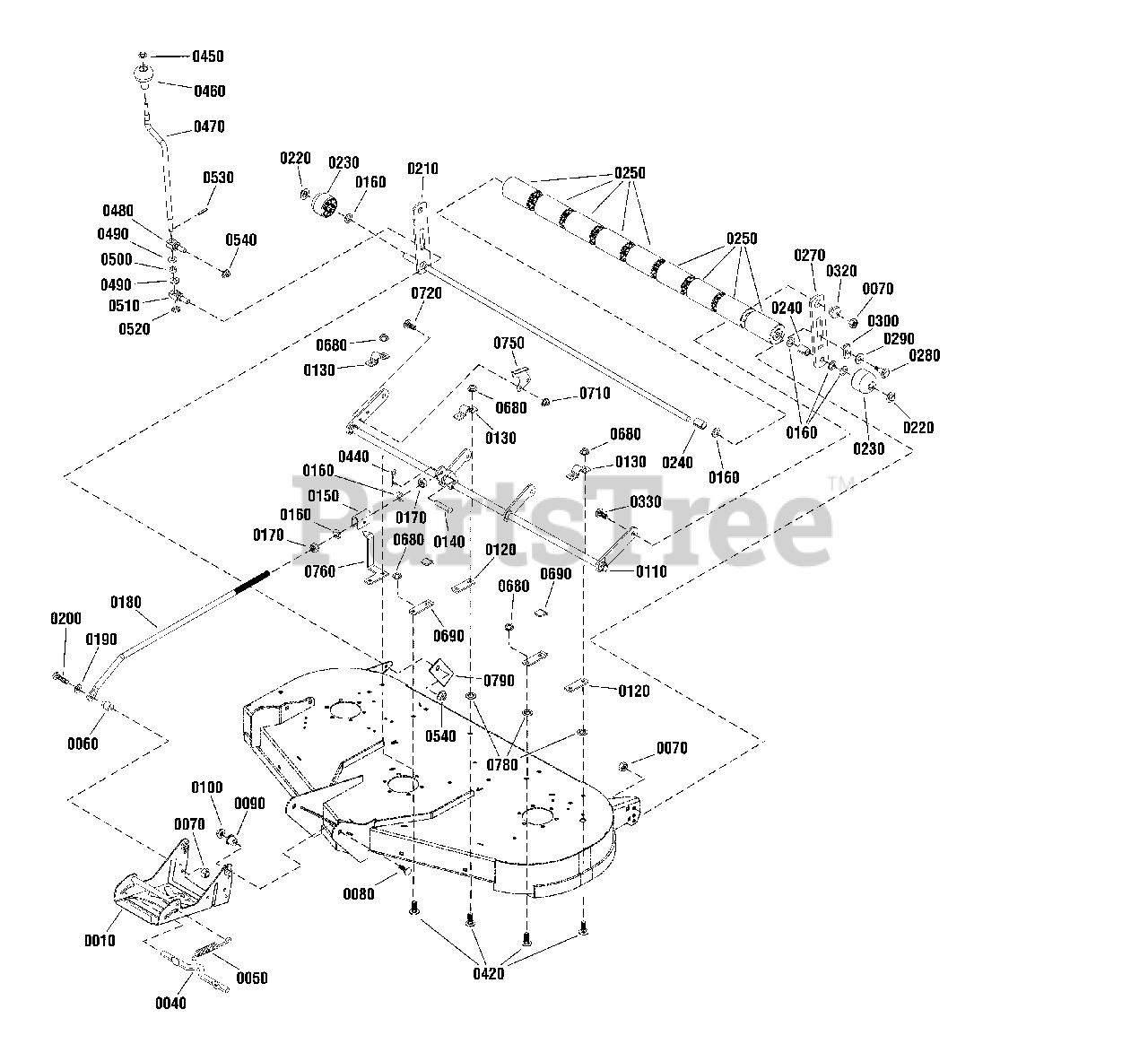

48" (122cm) Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

0010

Simplicity 1760192AYP

HITCH

$155.99

$

In Stock, only 1 left!

0

0040

Simplicity 1715759SM

ROD, 3/8

$7.99

$

In Stock, Qty 11

0

0050

Simplicity 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

0060

Simplicity 1706644SM

SPACER, 3/8 X 3/4 X 15/16

$8.49

$

In Stock, only 3 left!

0

0070

Simplicity 2860681SM

NUT, Top Lock, Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0080

Simplicity 7091945YP

Bolt, Carriage, 3/8 X 1 1/2, GR5

$4.49

$

In Stock, only 2 left!

0

0090

Simplicity 1732443SM

SPACER, 3/8 X 3/4 X 0.74

$5.99

$

In Stock, Qty 20+

0

0100

Simplicity 1919439SM

NUT, Ny Lock, 3/8-16, GR5
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 1757372BMYP

WELD, Rocker Shaft

$262.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1757527YP

SPACER, Bearing Strap

$9.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1665374SM

STRAP, Rocker Shaft
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

0140

Simplicity 704241

PIN, Round Head, 3/8 X 2

$9.99

$

In Stock, only 2 left!

0

0150

Simplicity 170664ASM

TRUNNION

$

$

Not available

0160

Simplicity 703580

WASHER, Special

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 703912

NUT, Hex, 5/8-11

$3.49

$

In Stock, Qty 5

0

0180

Simplicity 1757517YP

ROD, Pitch

$64.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703878

WASHER, Flat

$3.99

$

In Stock, Qty 20+

0

0200

Simplicity 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 13

0

0210

Simplicity 1757376BMYP

SHAFT, Roller

$323.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1960520SM

NUT, Push, 5/8
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0230

Simplicity 1717675SM

ROLLER, Rounded

$6.99

$

In Stock, Qty 20+

0

0240

Simplicity 1709195SM

SPACER, .876 X .666 X 1 1/4

$5.99

$

In Stock, Qty 20+

0

0250

Simplicity 1668513SM

ROLLER, 5/8 x 2 1/2 4.10

$10.99

$

In Stock, Qty 20+

0

0270

Simplicity 1757379BMYP

BAR, Roller

$31.99

$

Usually ships in 2-12 days

0

0280

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0290

Simplicity 703451

WASHER, Flat

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, only 3 left!

0

0320

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 15

0

0330

Simplicity 1931352SM

BOLT, Carriage 3/8-16 X 1 1/2, G5

$4.49

$

In Stock, only 4 left!

0

0420

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0

0440

Simplicity 403162MA

PIN, Hair, 3/32 X 1.6

$

$

Not available

0450

Simplicity 703948

PUSHNUT, 3/8

$4.49

$

In Stock, Qty 20+

0

0460

Simplicity 1714084SM

KNOB, Spinnner

$12.99

$

In Stock, only 1 left!

0

0470

Simplicity 1719901SM

CRANK, Height Adjust

$48.99

$

In Stock, only 1 left!

0

0480

Simplicity 1733258SM

TRUNNION

$

$

Not available

0490

Simplicity 703853

WASHER, Special

$4.99

$

In Stock, Qty 20+

0

0500

Simplicity 1716953SM

SPACER

$13.99

$

In Stock, only 2 left!

0

0510

Simplicity 1733257SM

TRUNNION

$28.99

$

Usually ships in 2-12 days

0

0520

Simplicity 1704097SM

WASHER, Detent

$4.49

$

In Stock, Qty 11

0

0530

Simplicity 2816001SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

0540

Simplicity 1930644SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, Qty 6

0

0680

Simplicity 703115

NUT, Ny Lock Flange, 5/16-18, GR F

$3.49

$

In Stock, Qty 20+

0

0690

Simplicity 1759796CJYP

UPSTOP

$20.99

$

Usually ships in 2-12 days

0

0710

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0720

Simplicity 703225

BOLT, Carriage, 5/16-18 X 3/4,GR5

$3.99

$

In Stock, Qty 20+

0

0750

Simplicity 1757997BMYP

BRACKET, Height of Cut
(Superseded to 1757997AYP)

$16.99

$

Usually ships in 2-12 days

0

0760

Simplicity 1757998BMYP

INDICATOR, Height of Cut

$17.99

$

Usually ships in 2-12 days

0

0780

Simplicity 703297

RETAINER, Pushnut, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0790

Simplicity 1758330BMYP

BRACKET, HOC

$10.99

$

Usually ships in 2-12 days

0
