1696806-00 - Simplicity Cargo Bed Kit Cargo Bed Parts Diagram

Cargo Bed Kit

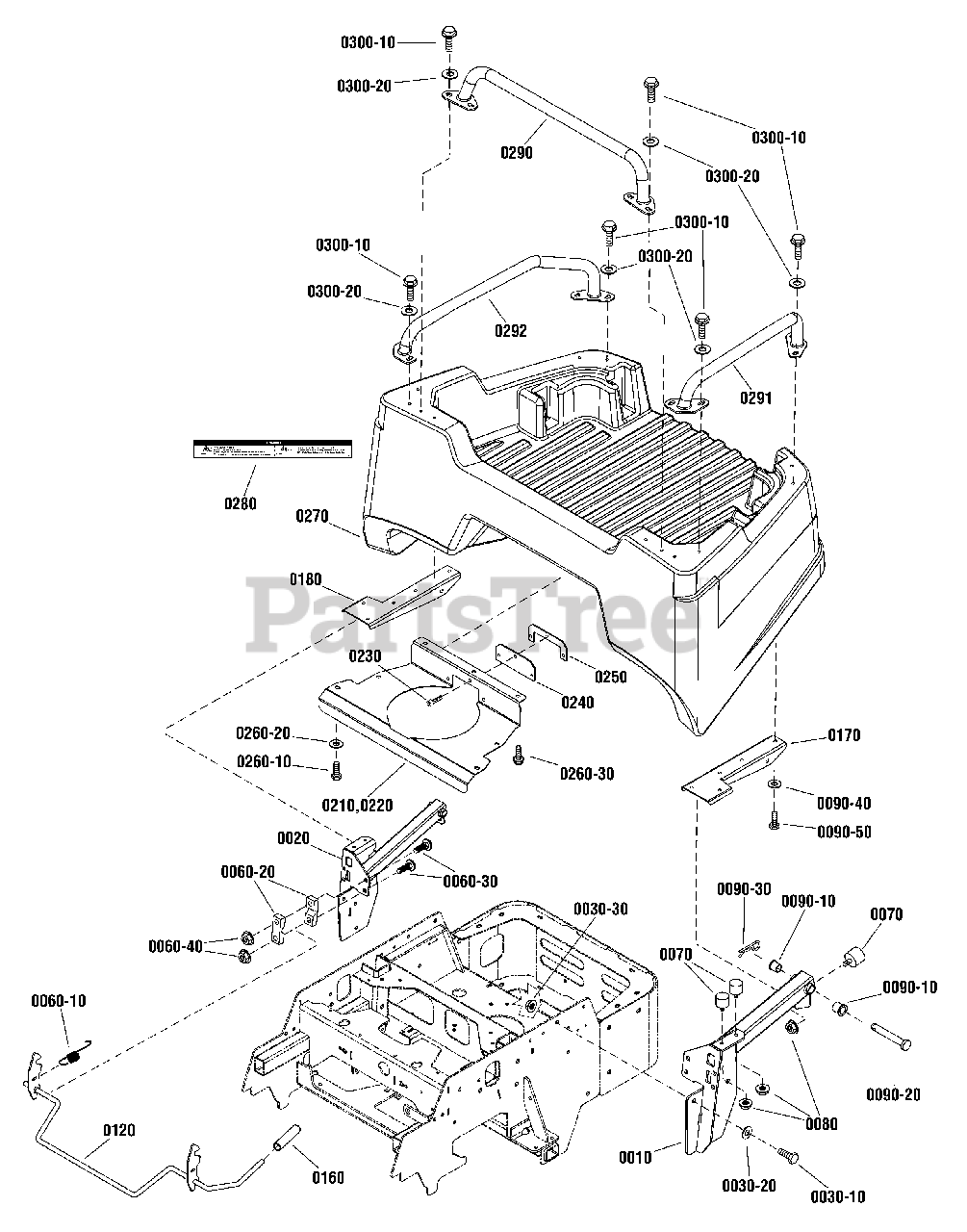

Cargo Bed Parts Diagram

  • Title

0010

Simplicity 1760784AYP

SUPPORT, Cargo Box, LH

$142.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1760785AYP

SUPPORT, Cargo Box, RH

$142.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1761047

*HARDWARE BAG, Support Mounting

Note: (Incl. Ref. Nos. 0030-10 through 0030-30)

$

$

Not available

0030-10

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1, GD5

$3.99

$

In Stock, only 1 left!

0

0030-20

Simplicity 703590

WASHER, 3/8

$3.99

$

In Stock, Qty 10

0

0030-30

Simplicity 5025394SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 1761048

*HARDWARE BAG, Latch Mounting

Note: (Incl. Ref. Nos. 0060-10 through 0060-40)

$

$

Not available

0060-10

Simplicity 1758283YP

SPRING, Extension

$6.99

$

In Stock, only 1 left!

0

0060-20

Simplicity 1760881YP

BEARING, Half

$3.99

$

Usually ships in 2-12 days

0

0060-30

Simplicity 703296

BOLT, Carriage, 5/16-18 X 1 1/2, GR5

$4.49

$

In Stock, only 3 left!

0

0060-40

Simplicity 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 18

0

0070

Simplicity 5022673SM

BUMPER, 1/4-20

$18.99

$

In Stock, only 1 left!

0

0080

Simplicity 703233

NUT, Hex Flange,1/4-20

$4.49

$

In Stock, Qty 6

0

0090

Simplicity 1761049

*HARDWARE BAG, Cargo Box Mount

Note: (Incl. Ref. Nos. 0090-10 through 0090-50)

$

$

Not available

0090-10

Simplicity 1715025SM

BUSHING

$4.49

$

Usually ships in 2-12 days

0

0090-20

Simplicity 1760901YP

PIN, Clevis, 1/2 X 3-1/2

$14.99

$

Usually ships in 2-12 days

0

0090-30

Simplicity 703300

PIN, Hair, 3/32

$3.99

$

In Stock, Qty 20+

0

0090-40

Simplicity 5025288YP

WASHER, Fender, 1/4

$3.99

$

In Stock, only 4 left!

0

0090-50

Simplicity 703338

CAPSCREW, Hex Head,, 1/4-20 X 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1760796AYP

LATCH, Cargo Box

$188.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1759817YP

GRIP, Foam

$5.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1760786AYP

MOUNT, Cargo Bed, LH

$61.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1760787AYP

MOUNT, Cargo Bed, RH

$61.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1760893AYP

PLENUM, Briggs & Stratton

$113.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1760894AYP

PLENUM, Kawasaki

$101.99

$

Usually ships in 2-12 days

0

0230

Simplicity 703953

SCREW, Torx, 1/4-20 X 5/8

Note: (Kawasaki Engine Models Only)

$4.49

$

In Stock, only 2 left!

0

0240

Simplicity 1760982YP

SEAL, Plenum

Note: (Kawasaki Engine Models Only)

$9.49

$

Usually ships in 2-12 days

0

0250

Simplicity 1761039AYP

BACKER, Seal

Note: (Kawasaki Engine Models Only)

$9.49

$

Usually ships in 2-12 days

0

0260

Simplicity 1761050

*HARDWARE BAG, Plenum Install

Note: (Incl. Ref. Nos. 0260-10 through 0260-30)v

$

$

Not available

0260-10

Simplicity 703338

CAPSCREW, Hex Head,, 1/4-20 X 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0260-20

Simplicity 5025288YP

WASHER, Fender, 1/4

$3.99

$

In Stock, only 4 left!

0

0260-30

Simplicity 708152

SCREW, Hex Washer Head

$4.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1760830YP

BOX, Cargo

$461.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1760818YP

DECAL, Cargo

$

$

Not available

0290

Simplicity 1760855YP

RAIL, Cargo Bed, Front

$

$

Not available

0291

Simplicity 1760858YP

RAIL, Cargo Bed, LH

$

$

Not available

0292

Simplicity 1760862YP

RAIL, Cargo Bed, RH

$

$

Not available

0300

Simplicity 1760891

*HARDWARE BAG, Rail Mounting

Note: (Incl. Ref. Nos. 0300-10 & 0300-20)

$

$

Not available

0300-10

Simplicity 1931646SM

SCREW, Hex Flange, 1/4-20 X 1/2

$4.49

$

In Stock, only 2 left!

0

0300-20

Simplicity 7091253YP

WASHER, Flat

$4.49

$

Usually ships in 2-12 days

0
