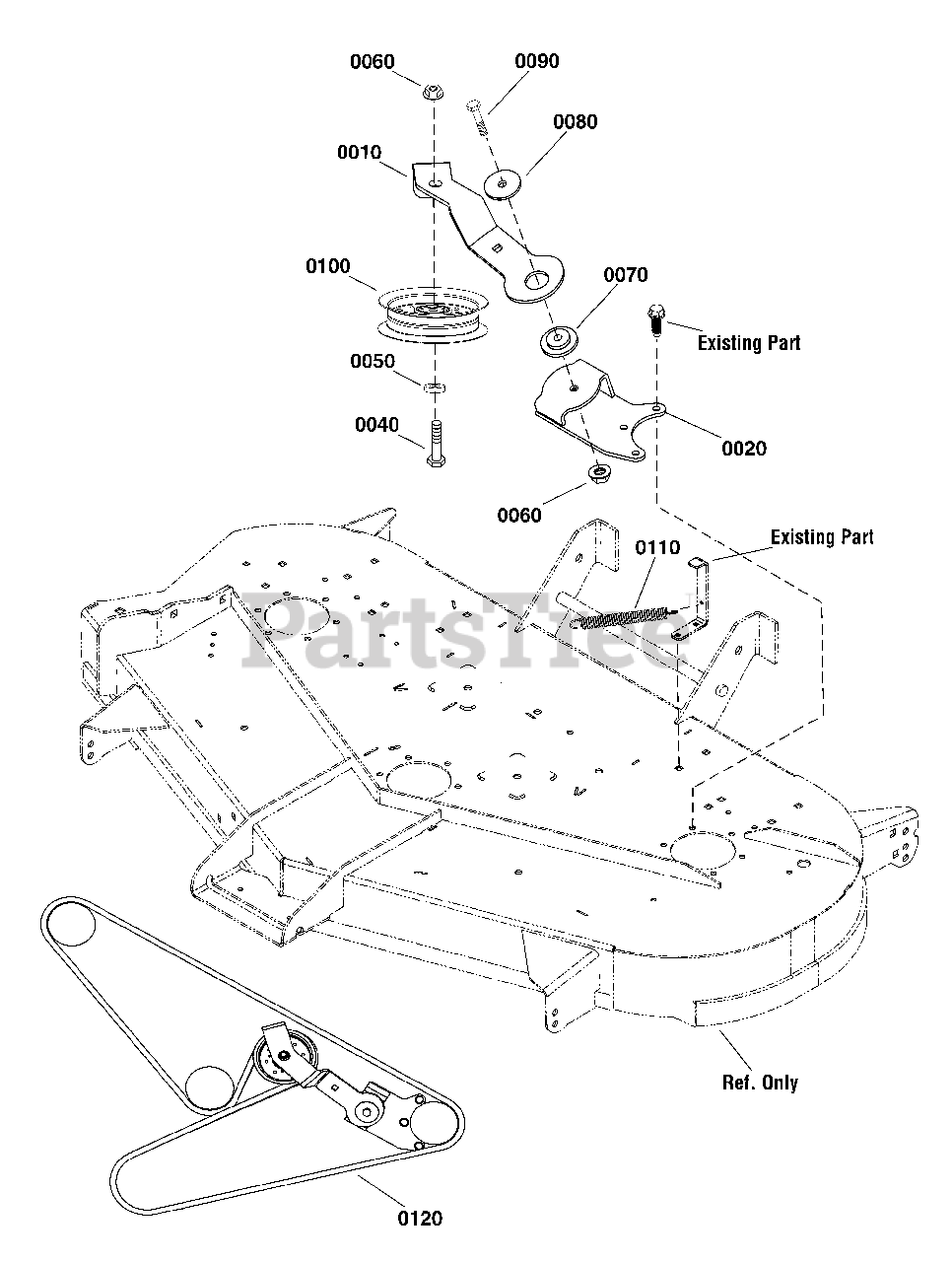

1696804-00 - Simplicity 48" Mower Deck 48" (122cm) Mower Deck - Clutch & Support Group Parts Diagram
48" Mower Deck
48" (122cm) Mower Deck - Clutch & Support Group Parts Diagram
Simplicity 1760440CJYP
ARM, Idler
$73.99
$
Usually ships in 2-12 days
Simplicity 1760210CJYP
BASE, Idler Arm
$52.99
$
Usually ships in 2-12 days
Simplicity 703589
CAPSCREW, Hex Head, 3/8-16 X 2, GR5
$4.49
$
In Stock, only 1 left!
Simplicity 703346
SPACER
$9.99
$
Usually ships in 2-12 days
Simplicity 703158
NUT, Hex Flange, 3/8-16
$3.49
$
Usually ships in 2-12 days
Simplicity 706128
SPACER, Idler
$6.99
$
In Stock, only 4 left!
Simplicity 5025305SM
WASHER, .41 X 1.75 X .14
$3.99
$
In Stock, only 2 left!
Simplicity 703871
CAPSCREW, Hex Head, 3/8-16 X 1 1/4, GR 5
$4.99
$
Usually ships in 2-12 days
Simplicity 1757823YP
PULLEY, Idler Backside
$22.99
$
In Stock, Qty 14
Simplicity 1715435SM
SPRING, Extension
$9.49
$
In Stock, Qty 20+
Simplicity 1760517YP
V-BELT
$92.99
$
Usually ships in 2-12 days
