1696797-01 - Murray 42" Mower Deck (2017) 42" Mower Deck - Height Adjustment Parts Diagram

42" Mower Deck

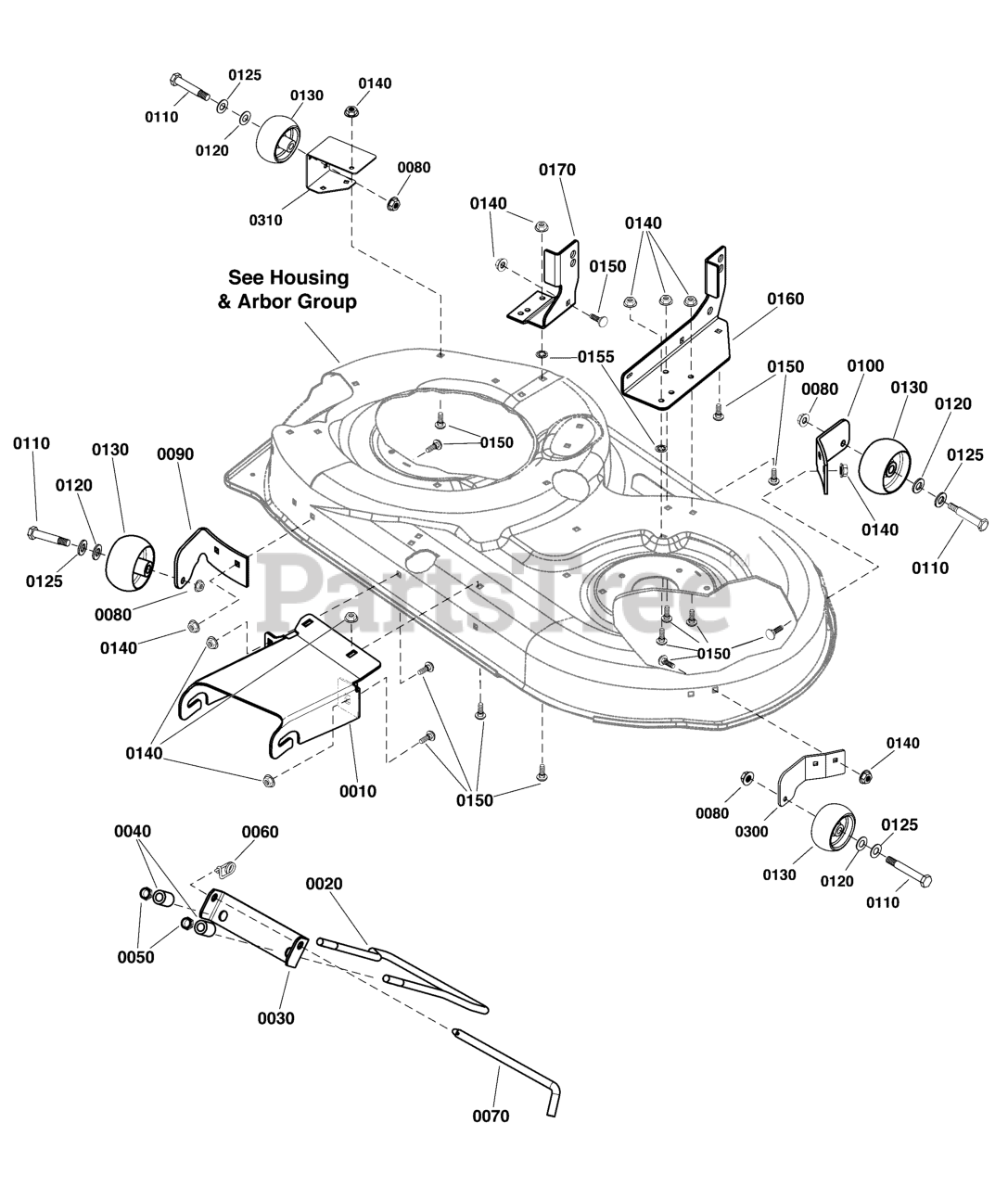

42" Mower Deck - Height Adjustment Parts Diagram

  • Title

0010

Briggs & Stratton 1731966BMYP

HITCH, Front

$49.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 1730097SM

ROD

$43.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 1730221ASM

HANGER, Front

$12.99

$

In Stock, only 2 left!

0

0040

Briggs & Stratton 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.49

$

In Stock, only 2 left!

0

0050

Briggs & Stratton 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

0060

Briggs & Stratton 703852

RETAINER,PIN SPRING F

$4.49

$

In Stock, Qty 20+

0

0070

Briggs & Stratton 1731414SM

ROD, Latch

$14.99

$

Usually ships in 2-12 days

0

0080

Briggs & Stratton 703158

NUT, Hex Flange, ESNA, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0090

Briggs & Stratton 1731402ASM

SUPPORT, Gauge Wheel, RH

$14.99

$

In Stock, only 1 left!

0

0100

Briggs & Stratton 1731403ASM

SUPPORT-GAUGE WHEEL L

$14.99

$

In Stock, only 1 left!

0

0110

Briggs & Stratton 2108765SM

BOLT, Wheel, 3/8-16 x 2-3/4

$6.49

$

In Stock, Qty 20+

0

0120

Briggs & Stratton 703853

WASHER-0.500(0.51IDX1

$4.99

$

In Stock, Qty 20+

0

0125

Briggs & Stratton 0020X3MA

WASHER, Spring, 1/2

$4.49

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 1714760SM

WHEEL- 2.00 WIDE 3.88 DIA 0.531ID POLY

$6.49

$

In Stock, Qty 20+

0

0140

Briggs & Stratton 703409

NUT - HEX

$5.49

$

In Stock, Qty 20+

0

0150

Briggs & Stratton 703185

BOLT

$3.49

$

In Stock, Qty 16

0

0155

Briggs & Stratton 703297

RETAINER,5/16X0.625,PUSHNUT,ZINC/CLEAR

$3.99

$

In Stock, Qty 20+

0

0160

Briggs & Stratton 1753662BMYP

SUPPORT, Mower, LH

$40.99

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 1753663BMYP

SUPPORT, MOWER

$15.99

$

In Stock, only 1 left!

0

0300

Briggs & Stratton 1732258BMYP

BRACKET, Gauge Wheel, Front, LH

$29.99

$

In Stock, Qty 8

0

0310

Briggs & Stratton 7301171BMYP

BRACKET, Gauge Wheel, Rear, RH

$30.99

$

Usually ships in 2-12 days

0
