1696782-01 - Simplicity 52" Mower Deck 52" Mower Deck - Support & Roller Group Parts Diagram

52" Mower Deck

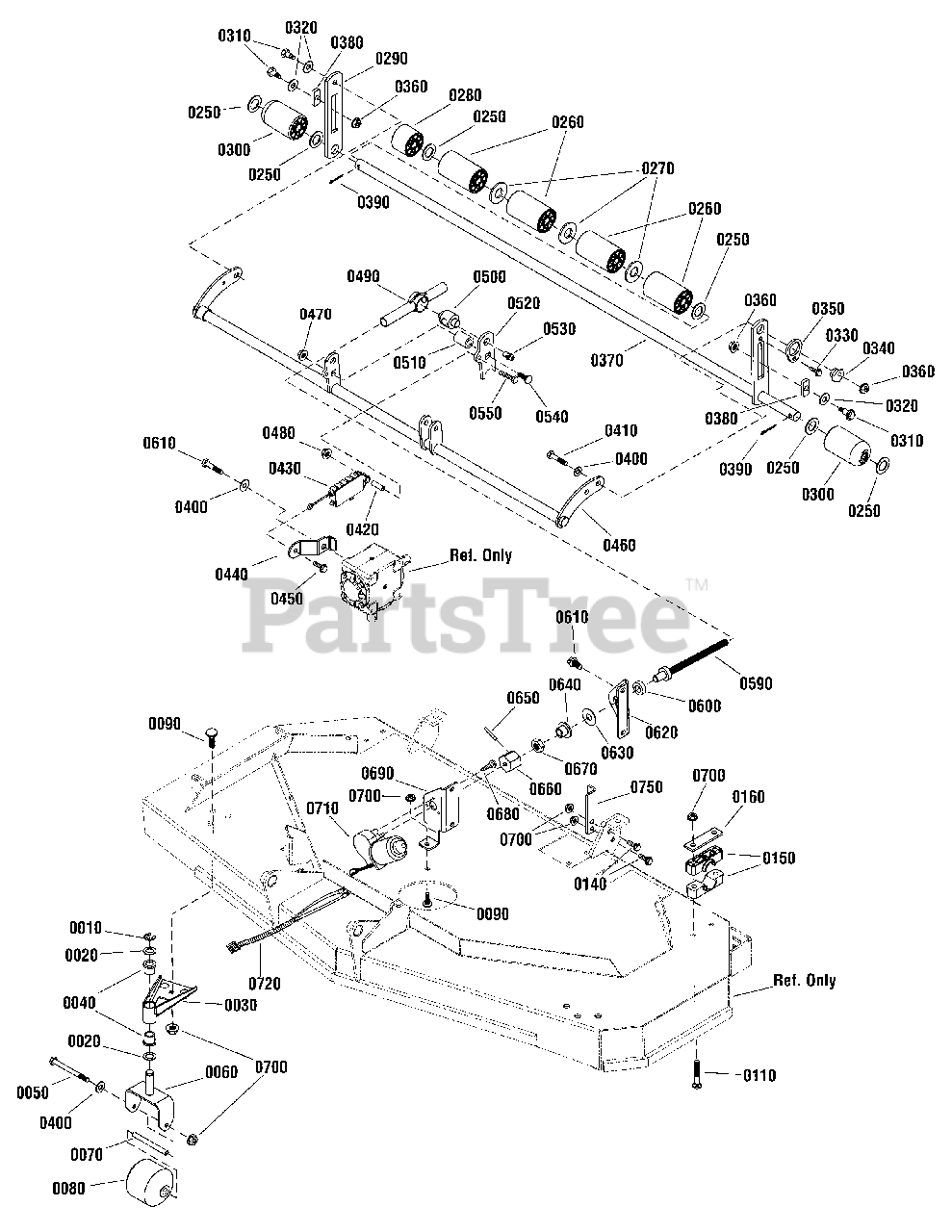

52" Mower Deck - Support & Roller Group Parts Diagram

  • Title

0010

Simplicity 0011X3MA

E-RING, .750D-.050T

$5.49

$

In Stock, Qty 20+

0

0020

Simplicity 1960528SM

WASHER, 49/64" I.D. x 1-1/4" O.D.

$7.49

$

Usually ships in 2-12 days

0

0030

Simplicity 1760356CKYP

CASTER, Anti Scalp

$101.99

$

Usually ships in 2-12 days

0

0040

Simplicity 5101642YP

BUSHING, Flanged, 3/4 X 1 X 1

$8.49

$

Usually ships in 2-12 days

0

0050

Simplicity 7091982YP

CAPSCREW, Hex Head, 3/8C X 5 1/4, GR5

$5.49

$

In Stock, only 1 left!

0

0060

Snapper 1760353CKYP

BRACKET, Caster

$82.99

$

In Stock, only 2 left!

0

0070

Simplicity 5101971YP

SPACER, .38 X .63 X 4.31

$12.99

$

In Stock, Qty 11

0

0080

Simplicity 5022060SM

ROLLER, Caster

$44.99

$

In Stock, Qty 11

0

0090

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0110

Simplicity 1960615SM

BOLT, Carriage, 3/8-16 X 2 1/2

$5.49

$

In Stock, only 1 left!

0

0140

Simplicity 770137

BOLT, Flange, 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 5100634SM

BLOCK

$7.49

$

Usually ships in 2-12 days

0

0160

Simplicity 5403925AYP

PLATE, Pivot

$8.49

$

Usually ships in 2-12 days

0

0250

Simplicity 2860626SM

WASHER, 1"

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 1678042YP

ROLLER, W/Bushings

$26.99

$

In Stock, only 4 left!

0

0270

Simplicity 2860200SM

WASHER, 1" I.D., 2-1/4" O.D.

$5.49

$

In Stock, Qty 5

0

0280

Simplicity 1720159SM

ROLLER, 1 x 2-3/4 x 2, Black

$35.99

$

In Stock, only 3 left!

0

0290

Simplicity 5410517AYP

BAR, Roller

$27.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1678043SM

PORT COVER & CHECK VALVE ASSY.

$45.99

$

In Stock, Qty 20+

0

0310

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34, 1/2 Shoulder

$6.99

$

In Stock, Qty 20+

0

0320

Simplicity 703451

WASHER, Flat, 17/32 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0330

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0340

Simplicity 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 14

0

0350

Simplicity 5410353CKYP

PLATE, Roller Adjust

$

$

Not available

0360

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0370

Simplicity 1760307CKYP

SHAFT, Roller

$378.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1677507SM

SLIDE, .803 x 1.7

$6.99

$

In Stock, only 3 left!

0

0390

Simplicity 703983

PIN, Cotter

$4.49

$

In Stock, Qty 13

0

0400

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

0410

Simplicity 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 1 left!

0

0420

Snapper 1760376YP

SPACER

$9.49

$

Usually ships in 2-12 days

0

0430

Simplicity 1750618YP

SENSOR, Electric Height Of Cut

$54.99

$

In Stock, only 1 left!

0

0440

Simplicity 1761315CJYP

BRACKET, Sensor

$23.99

$

Usually ships in 2-12 days

0

0450

Simplicity 703167

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4

$3.99

$

In Stock, only 3 left!

0

0460

Simplicity 1760306CKYP

SHAFT, Rocker

$276.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1960689SM

NUT, Hex, Toplock Flange,1/2-13

$3.49

$

Usually ships in 2-12 days

0

0480

Simplicity 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0490

Simplicity 1716424SM

COVER, Rod, Black

$101.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1715892SM

TRUNNION, 1-1/4

$39.99

$

In Stock, only 2 left!

0

0510

Simplicity 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.49

$

In Stock, only 2 left!

0

0520

Simplicity 1760372CKYP

LEVER, HOC

$21.99

$

Usually ships in 2-12 days

0

0530

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0540

Simplicity 1960489SM

BOLT, Carriage, Short Neck, 1/2-13 x 2-1/2, GR5

$9.99

$

Usually ships in 2-12 days

0

0550

Simplicity 703163

SCREW, 1/4-20 X 2.0, Hex Head Cap, GR5

$3.49

$

Usually ships in 2-12 days

0

0590

Simplicity 1724524SM

ROD & SPACER ASSEMBLY

$81.99

$

In Stock, only 1 left!

0

0600

Simplicity 1715891SM

BEARING, Thrust

$26.99

$

In Stock, only 1 left!

0

0610

Simplicity 1960695SM

CAPSCREW, Hex Washer Head, 3/8-16 x 1-1/8, Black

$14.99

$

Usually ships in 2-12 days

0

0620

Simplicity 5410355AYP

PLATE, Bearing

$15.99

$

Usually ships in 2-12 days

0

0630

Simplicity 1716998SM

WASHER, Special, 0.575ID X 1.50 OD X.06

$5.49

$

Usually ships in 2-12 days

0

0640

Simplicity 1715887SM

HUB,.577ID X 0.835OD X 0.704

$8.99

$

In Stock, only 2 left!

0

0650

Simplicity 1960581SM

PIN, Spring, 3/16 X 1 1/2

$3.99

$

Usually ships in 2-12 days

0

0660

Simplicity 1715886SM

ADAPTER, Motor

$10.99

$

Usually ships in 2-12 days

0

0670

Simplicity 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, Qty 13

0

0680

Simplicity 2860664SM

SCREW, Conical Washer, 1/4-20 x 7/8 Dog Point

$5.99

$

In Stock, only 2 left!

0

0690

Simplicity 1761106CJYP

PLATE, Gearbox

$56.99

$

Usually ships in 2-12 days

0

0700

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0710

Simplicity 709509

MOTOR, EHOC w/Decal

$439.99

$

In Stock, Qty 9

0

0720

Simplicity 1760433

HARNESS, Mower

$

$

Not available

0750

Simplicity 1761305CJYP

UPSTOP, RH

$29.99

$

Usually ships in 2-12 days

0
