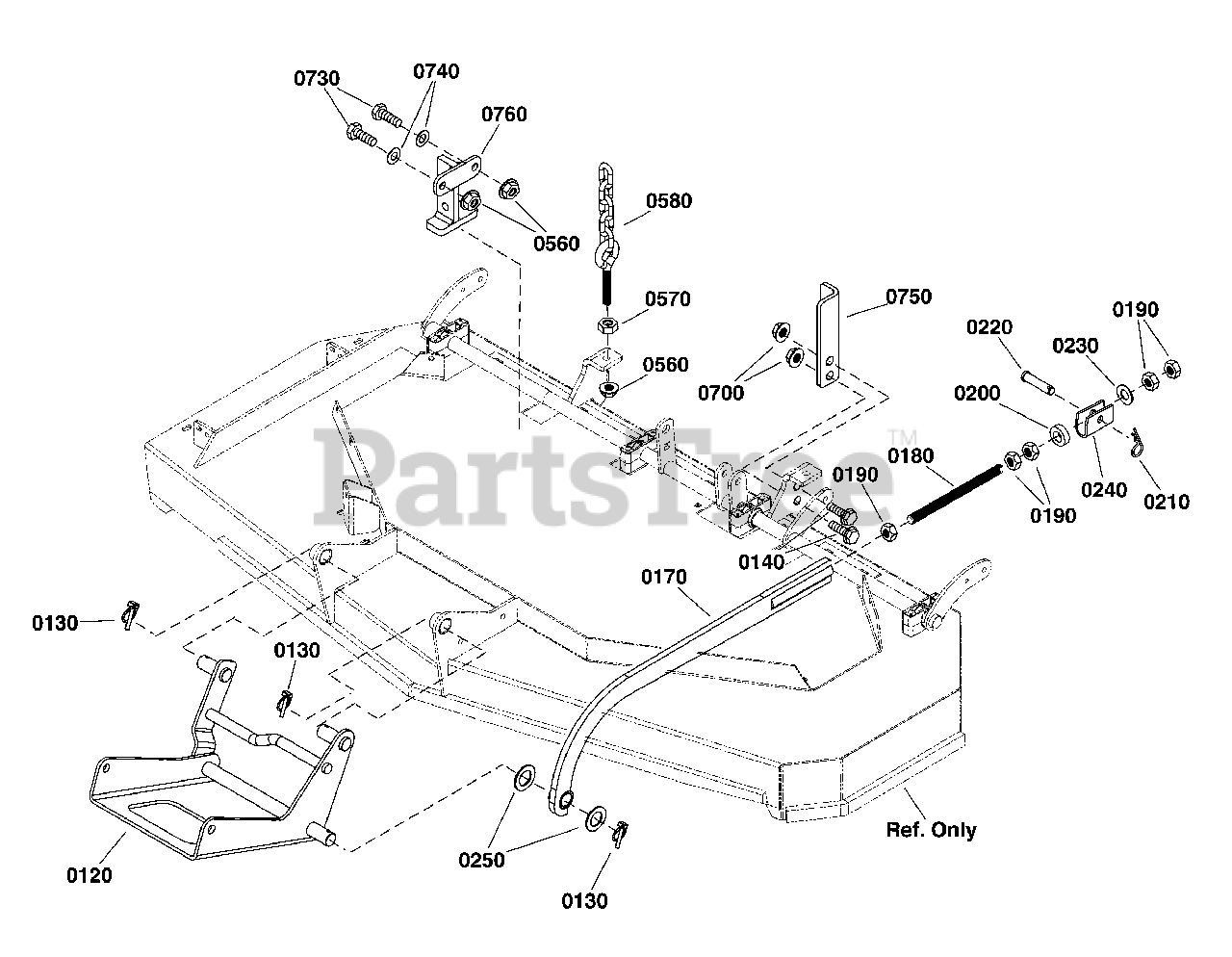

1696782-01 - Simplicity 52" Mower Deck 52" Mower Deck - Support & Hitch Group Parts Diagram

52" Mower Deck

52" Mower Deck - Support & Hitch Group Parts Diagram

  • Title

0120

Simplicity 5410342AYP

WELD, Bucket

$378.99

$

In Stock, only 2 left!

0

0130

Simplicity 1709189SM

PIN, Klik, 3/16 x 1-5/8

$6.99

$

Usually ships in 2-12 days

0

0140

Simplicity 770137

BOLT, Flange, 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 1760768BMYP

ROD, Pitch

$

$

Currently unavailable

0180

Simplicity 1722507SM

STUD, 5/8-18 x 8-9/16

$34.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703904

NUT, Hex Jam, 5/8-18

$4.99

$

In Stock, Qty 18

0

0200

Simplicity 5102941YP

SPACER

$9.99

$

In Stock, only 1 left!

0

0210

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

0220

Simplicity 1722819SM

PIN, Flat Head, .496 x 2.12

$6.99

$

In Stock, only 2 left!

0

0230

Simplicity 1960020SM

WASHER, Plain, 21/32

$4.49

$

In Stock, Qty 20+

0

0240

Simplicity 1725201SM

TRUNNION
(Superseded to 1725201ASM)

$19.99

$

In Stock, only 1 left!

0

0250

Simplicity 2860626SM

WASHER, 1"

$4.49

$

In Stock, Qty 20+

0

0560

Simplicity 770225

NUT, Flange, Nylock, 1/2-13

$3.49

$

In Stock, Qty 20+

0

0570

Simplicity 703340

NUT, Hex, 1/2-13, GR5

$7.99

$

In Stock, only 1 left!

0

0580

Simplicity 5104311YP

HANGER, FRONT DECK - 5 LINK, 5.5"

$68.99

$

Usually ships in 2-12 days

0

0700

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0730

Simplicity 703571

CAPSCREW, Hex Head, 1/2-13 X 1 1/2, GR5

$4.49

$

In Stock, only 1 left!

0

0740

Simplicity 704123

WASHER, 1/2 Flat

$4.49

$

In Stock, only 3 left!

0

0750

Simplicity 1760526CJYP

UPSTOP, LH

$26.99

$

Usually ships in 2-12 days

0

0760

Simplicity 1760828CJYP

UPSTOP, Sway Bar

$109.99

$

Usually ships in 2-12 days

0
