1696782-01 - Simplicity 52" Mower Deck 52" Mower Deck - Drive Group Parts Diagram

52" Mower Deck

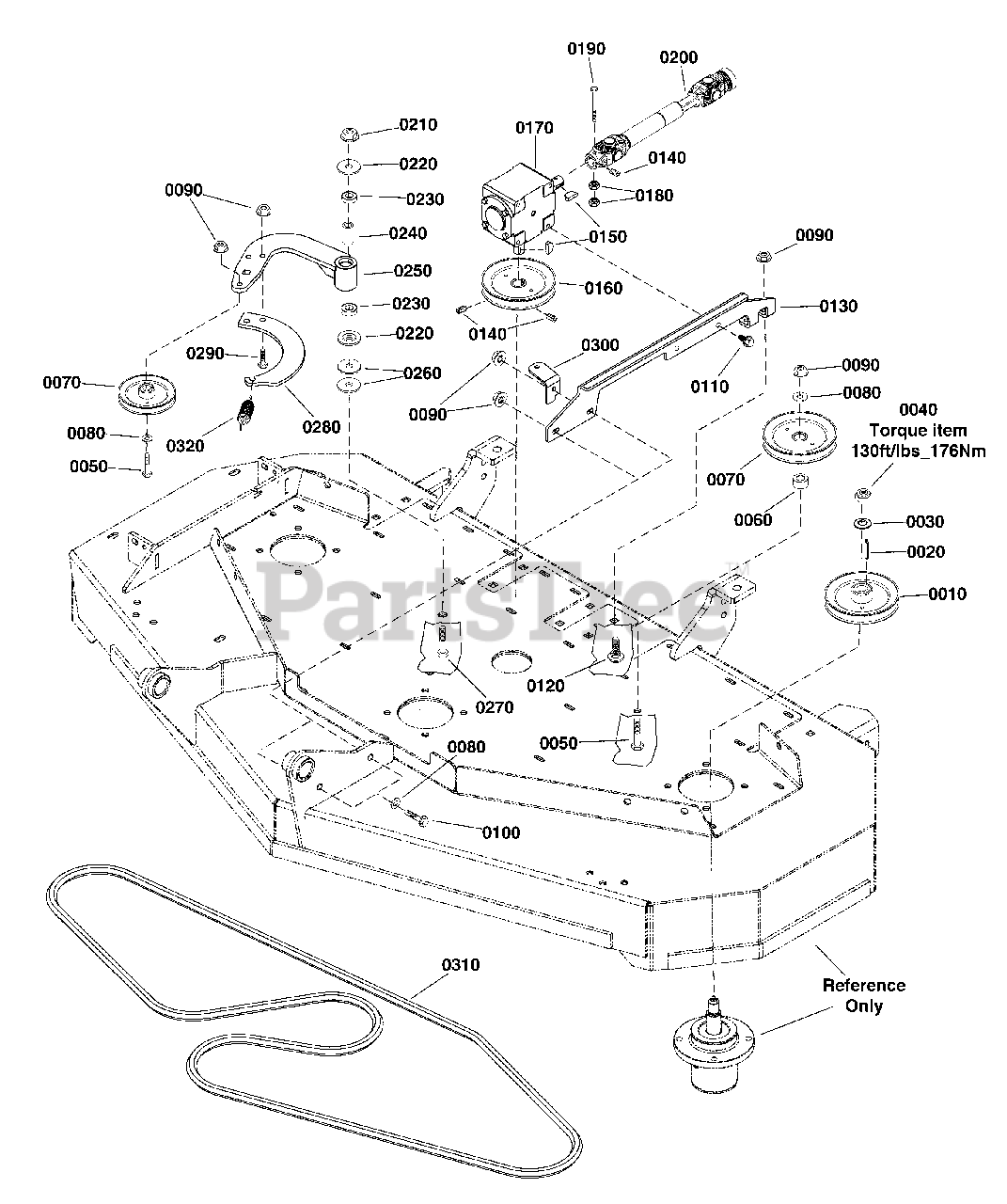

52" Mower Deck - Drive Group Parts Diagram

  • Title

0010

Simplicity 5100700SM

PULLEY, Spit, 6.93"

$74.99

$

Usually ships in 2-12 days

0

0020

Simplicity 770222

KEY, 1/4 x 1 1/4

$3.49

$

Usually ships in 2-12 days

0

0030

Simplicity 770223

WASHER, Belleville, 3/4

$4.49

$

In Stock, only 4 left!

0

0040

Simplicity 770224

NUT, Hex, 3/4-16

$4.49

$

Usually ships in 2-12 days

0

0050

Simplicity 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 20+

0

0060

Simplicity 7034422SM

PULLEY, Flat Idler

$38.99

$

In Stock, Qty 20+

0

0070

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

0080

Simplicity 1919384SM

WASHER, 3/8

$5.49

$

In Stock, only 1 left!

0

0090

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0100

Simplicity 703871

CAPSCREW, Hex Head, 3/8-16 X 1 1/4

$4.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1960695SM

CAPSCREW, Hex Washer Head, 3/8-16 x 1-1/8, Black

$14.99

$

Usually ships in 2-12 days

0

0120

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0130

Simplicity 1760304COYP

PLATE, Stiffener

$131.99

$

Usually ships in 2-12 days

0

0140

Simplicity 5025531YP

SCREW, Set, 5/16-18 X 3/8
(Superseded to 1677029SM)

$3.49

$

In Stock, Qty 12

0

0150

Simplicity 2822138SM

KEY, Woodruff

$9.99

$

In Stock, only 2 left!

0

0160

Simplicity 1760297YP

PULLEY, Drive

$61.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1725298SM

GEARBOX, Drive Assembly

$744.99

$

Usually ships in 2-12 days

0

0180

Simplicity 703954

NUT, Centrelock, 1/4-20, GR5
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0190

Simplicity 703856

CAPSCREW, Hex Head,1/2-13 X 2 1/4, GR5

$12.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1725217SM

SHAFT ASSEMBLY, Drive

$547.99

$

Usually ships in 2-12 days

0

0210

Simplicity 770225

NUT, Flange, Nylock, 1/2-13

$3.49

$

In Stock, Qty 20+

0

0220

Simplicity 5103262YP

SPACER, Idler Arm

$7.99

$

In Stock, Qty 15

0

0230

Simplicity 7078243YP

BEARING, Ball

$10.99

$

In Stock, Qty 13

0

0240

Simplicity 5103812YP

SPACER

$7.99

$

In Stock, Qty 7

0

0250

Simplicity 1761301CJYP

ARM, Idler

$101.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1718640SM

WASHER, 1/2

$8.49

$

Usually ships in 2-12 days

0

0270

Simplicity 7029355YP

CAPSCREW, HexHead, 1/2 x 3 3/4

$5.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1761302CJYP

ANCHOR, Idler Arm

$31.99

$

Usually ships in 2-12 days

0

0290

Simplicity 703871

CAPSCREW, Hex Head, 3/8-16 X 1 1/4

$4.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1761304CJYP

ANCHOR, Spring

$23.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1760305YP

BELT, Aramid

$86.99

$

Usually ships in 2-12 days

0

0320

Simplicity 5100633YP

SPRING, Extension

$34.99

$

Usually ships in 2-12 days
