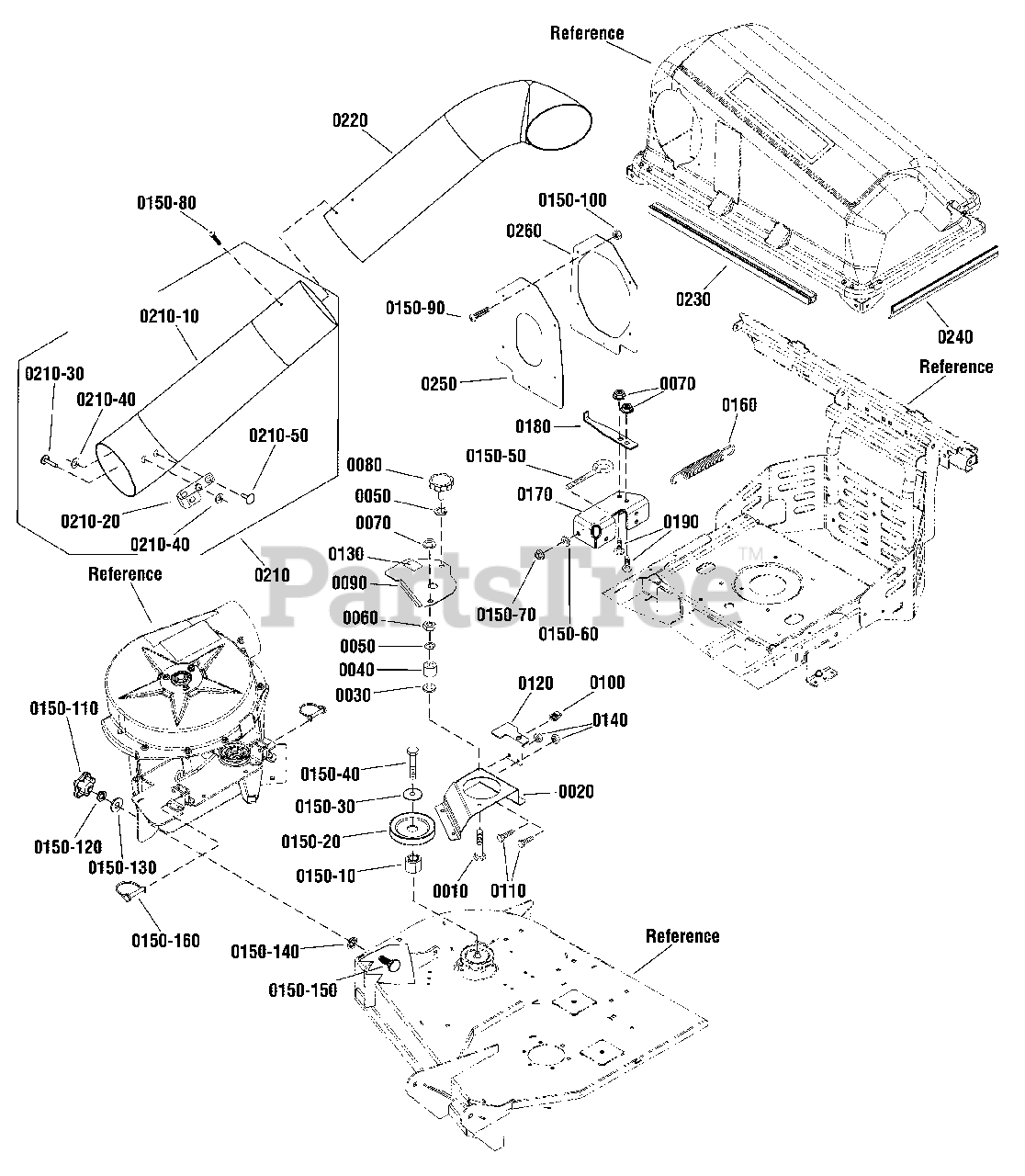

1696768-00 - Simplicity Turbo Collection System for 52" FAB Mower Deck Turbo Mounting Group Parts Diagram

Turbo Collection System for 52" FAB Mower Deck

Turbo Mounting Group Parts Diagram

  • Title

0010

Simplicity 703177

CAPSCREW, Hex Head, 5/16-18 X 2 1/4, GR5
(Superseded to 5025011X18SM)

$3.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1760145YP

COVER, RH Arbor

$90.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0040

Simplicity 5101260YP

SPACER, .33 X .63 X 1

$9.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703116

WASHER, Lock, 5/16
(Superseded to 5025170SM)

$3.99

$

In Stock, only 1 left!

0

0060

Simplicity 703465

NUT, 5/16-18, GR5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 12

0

0070

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 5101731YP

KNOB, 5/16-18 X 1

$10.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1756292AYP

COVER, Pulley Top

$

$

Not available

0100

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, Qty 12

0

0110

Simplicity 703338

CAPSCREW, Hex Head, 1/4-20 X 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1756293AYP

SUPPORT, Cover

$49.99

$

Usually ships in 2-12 days

0

0130

Simplicity 5103184YP

DECAL, Warning

$13.99

$

Usually ships in 2-12 days

0

0140

Simplicity 703232

NUT, Nylock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

--

Simplicity 1760282

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Not available

0150-10

Simplicity 1713634SM

HUB, 79IDX1.5ODX1.28LG

$16.99

$

Usually ships in 2-12 days

0

0150-20

Simplicity 1713090SM

PULLEY

$24.99

$

Usually ships in 2-12 days

0

0150-30

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0150-40

Simplicity 1926110SM

CAPSCREW, Hex Head, 7/16-14 X 2 3/4, GR5

$6.49

$

In Stock, Qty 11

0

0150-50

Simplicity 5023497SM

BOLT, Eye, 3/8-16 X 5

$9.49

$

Usually ships in 2-12 days

0

0150-60

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 20+

0

0150-70

Simplicity 703158

NUT, Hex Flange, 3/8-16
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0150-80

Simplicity 26X239MA

SCREW, 1/4 AB X 3/4

$4.49

$

Usually ships in 2-12 days

0

0150-90

Simplicity 1960404SM

SCREW, Phillips, #10-24 X 3/4

$3.99

$

In Stock, only 4 left!

0

0150-100

Simplicity 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, Qty 9

0

0150-110

Simplicity 7105085YP

KNOB, Handle

$6.99

$

In Stock, Qty 20+

0

0150-120

Simplicity 703116

WASHER, Lock, 5/16
(Superseded to 5025170SM)

$3.99

$

In Stock, only 1 left!

0

0150-130

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0150-140

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0150-150

Simplicity 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, only 3 left!

0

0150-160

Simplicity 5100847SM

PIN, Snapper, 5/16 X 2

$16.99

$

In Stock, only 1 left!

0

0160

Simplicity 1760160YP

SPRING, Extension

$49.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1760147YP

BRACKET, Lift Assist

$94.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1760283YP

BRACE, Fender

$29.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4, GR5

$3.49

$

In Stock, Qty 20+

0

0210

Simplicity 705993

ASSEMBLY, Lower tube

$

$

Not available

0210-10

TUBE, Lower

Note: (Not sold separately, order item 0210)

$

$

Not available

0210-20

Simplicity 1705063YP

SPRING, Clip

$

$

Not available

0210-30

Simplicity 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

0210-40

Simplicity 1910531SM

WASHER, Rivet

$3.99

$

Usually ships in 2-12 days

0

0210-50

Simplicity 1673320SM

RIVET

$4.49

$

In Stock, Qty 8

0

0220

Simplicity 1760280YP

TUBE, Upper

$242.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1733579SM

EDGING, 21 1/2
(Superseded to 1721175SM)

$39.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1717496SM

EDGING, 12/1/2

$19.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1733741SM

SEAL, Cover
(Superseded to 1733741YP)

$29.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1732735ASM

FLANGE, Seal

$40.99

$

Usually ships in 2-12 days

0
