1696699-01 - Simplicity 61" Mower Deck 61" Mower Deck - Roller & Support Group Parts Diagram

61" Mower Deck

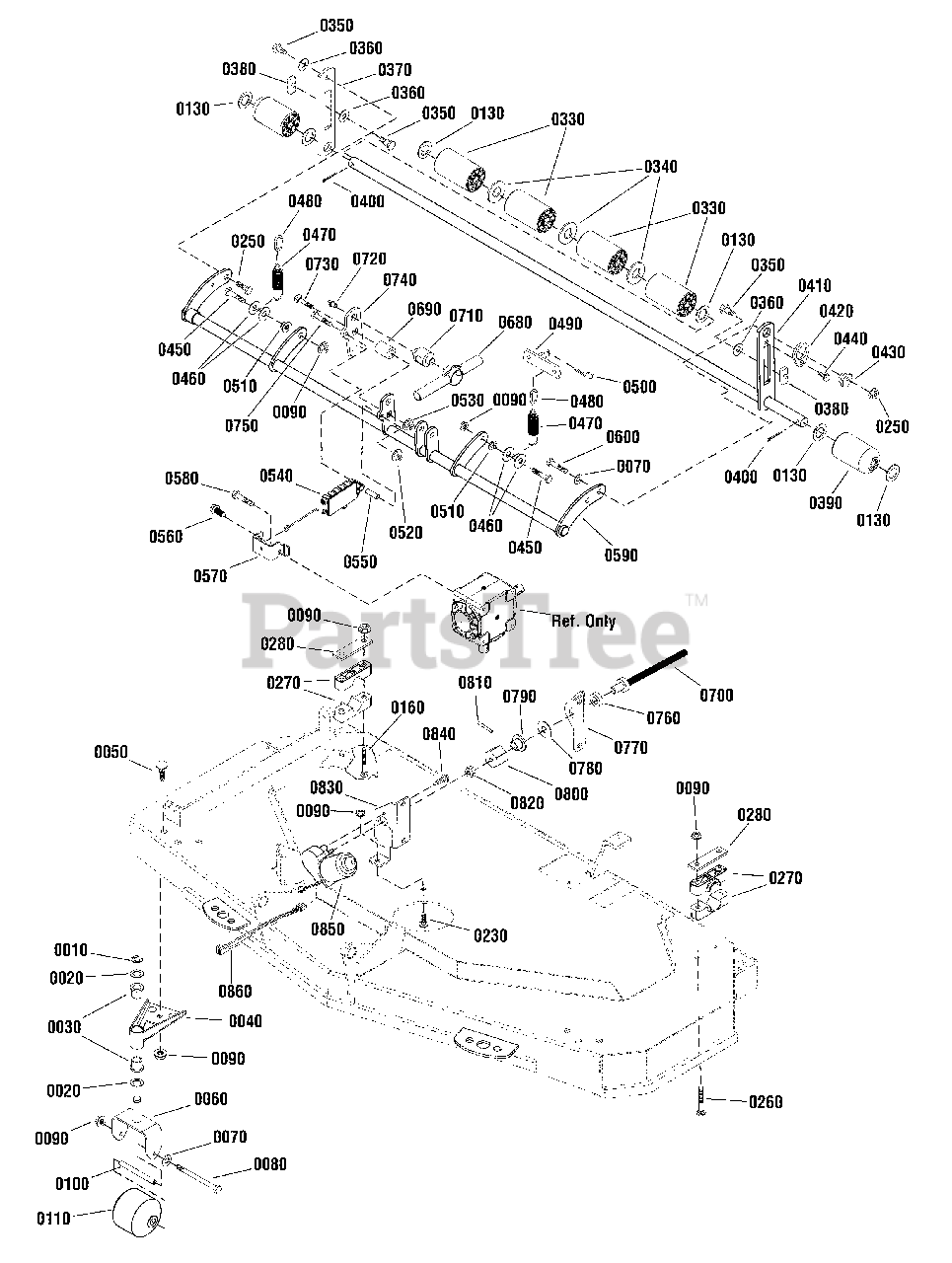

61" Mower Deck - Roller & Support Group Parts Diagram

  • Title

0010

Simplicity 0011X310MA

RING, E
(Superseded to 0011X3MA)

$5.49

$

In Stock, Qty 17

0

0020

Simplicity 17X16010MA

WASHER, Flat

$

$

Not available

0030

Simplicity 5101642YP

BUSHING, 3/4 X 1 X 1

$8.49

$

Usually ships in 2-12 days

0

0040

Simplicity 1760356CKYP

CASTER, Anti Scalp

$101.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0060

Simplicity 1760353CK

CASTER, Anti Scalp

$

$

Not available

0070

Simplicity 703590

WASHER, Flat

$3.99

$

In Stock, Qty 19

0

0080

Simplicity 7091982YP

CAPSCREW, Hex Head, 3/8C X 5 1/4, GR5

$5.49

$

In Stock, only 1 left!

0

0090

Simplicity 703158

NUT, Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0100

Simplicity 5101971YP

SPACER, .38 X .63 X 4.31

$12.99

$

In Stock, Qty 11

0

0110

Simplicity 5022060SM

ROLLER

$44.99

$

In Stock, Qty 11

0

0130

Simplicity 2860626SM

WASHER, 1

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 1709189SM

PIN, Klink

$6.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1722507SM

STUD, 5/8-18 x 8.56

$34.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1722819SM

PIN, Flat Head

$6.99

$

In Stock, only 2 left!

0

0220

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 703815

BOLT,Round Head Short Neck, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0250

Simplicity 2860681SM

NUT, Hex, 3/8-16

$4.49

$

In Stock, Qty 7

0

0260

Simplicity 1960615SM

BOLT, Round Head Short Neck, 1/2-13 X 2 1/2, GR5

$5.49

$

In Stock, only 1 left!

0

0270

Simplicity 5100634SM

BLOCK, Pivot

$7.49

$

Usually ships in 2-12 days

0

0280

Simplicity 5403925AYP

PLATE, Pivot

$8.49

$

Usually ships in 2-12 days

0

0330

Simplicity 1678042YP

ROLLER, W/Bushings

$26.99

$

In Stock, only 4 left!

0

0340

Simplicity 2860200SM

WASHER

$5.49

$

In Stock, Qty 5

0

0350

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0360

Simplicity 703451

WASHER

$4.49

$

In Stock, Qty 20+

0

0370

Simplicity 5410517AYP

BAR, Roller

$27.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1677507SM

SLIDE .803 X 1.7

$6.99

$

In Stock, only 3 left!

0

0390

Simplicity 1678043SM

ROLLER-1.017IDX2

$45.99

$

In Stock, Qty 20+

0

0400

Simplicity 703983

PIN, Cotter

$4.49

$

In Stock, Qty 9

0

0410

Simplicity 5410598AYP

ROLLER BAR

$170.99

$

Usually ships in 2-12 days

0

0420

Simplicity 5410353CKYP

PLATE, Roller Adjust

$

$

Not available

0430

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

0440

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, only 3 left!

0

0450

Simplicity 770137

BOLT, Flange, 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0460

Simplicity 5025165SM

WASHER, 3/8

$3.99

$

In Stock, only 2 left!

0

0470

Simplicity 1755628YP

SPRING, Extension

$8.99

$

In Stock, Qty 20+

0

0480

Simplicity 1755637YP

CHAIN, Coil

$9.99

$

In Stock, only 2 left!

0

0490

Simplicity 1760528CJYP

SPRING ASSIST

$38.99

$

Usually ships in 2-12 days

0

0500

Simplicity 5025210YP

PIN, Hair

$3.99

$

In Stock, Qty 20+

0

0510

Simplicity 703793

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, only 3 left!

0

0520

Simplicity 703463

NUT, Flange, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0530

Simplicity 1960689SM

NUT, Flange Toplock, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

0540

Simplicity 1750618YP

SENSOR, EHOC

$54.99

$

In Stock, only 1 left!

0

0550

Simplicity 1760376

SPACER

$

$

Not available

0560

Simplicity 703167

SCREW, Taptite, 5/16-18 X 1 1/4

$3.99

$

In Stock, only 3 left!

0

0570

Simplicity 1760373CKYP

Mount, EHOC Sensor

$25.99

$

Usually ships in 2-12 days

0

0580

Simplicity 1960695SM

SCREW, Hex Washer Head, 3/8-16 x 1 1/8

$14.99

$

Usually ships in 2-12 days

0

0590

Simplicity 5410350AYP

SHAFT, Rocker

$286.99

$

Usually ships in 2-12 days

0

0600

Simplicity 703406

CAPSCREW, HexHead, 3/8-16 X 1 1/2

$4.99

$

In Stock, only 1 left!

0

0680

Simplicity 1716424SM

COVER, Rod

$101.99

$

Usually ships in 2-12 days

0

0690

Simplicity 1679166SM

SPACER

$7.49

$

In Stock, only 2 left!

0

0700

Simplicity 1724524SM

ROD & SPACER ASSEMBLY

$81.99

$

In Stock, only 1 left!

0

0710

Simplicity 1715892SM

TRUNNION

$39.99

$

In Stock, only 2 left!

0

0720

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0730

Simplicity 1960489SM

BOLT, carriage, 1/2-13 X 2 1/2, G5

$9.99

$

Usually ships in 2-12 days

0

0740

Simplicity 1760372CKYP

LEVER, HOC

$21.99

$

Usually ships in 2-12 days

0

0750

Simplicity 703163

CAPSCREW, Hex Head, 1/4-20 X 2, GR5

$3.49

$

Usually ships in 2-12 days

0

0760

Simplicity 1715891SM

BEARING, Thrust

$26.99

$

In Stock, only 1 left!

0

0770

Simplicity 5410355AYP

PLATE, Bearing

$15.99

$

Usually ships in 2-12 days

0

0780

Simplicity 1716998SM

WASHER, Special

$5.49

$

Usually ships in 2-12 days

0

0790

Simplicity 1715887SM

HUB

$8.99

$

In Stock, only 2 left!

0

0800

Simplicity 1715886SM

ADAPTER, Motor

$10.99

$

Usually ships in 2-12 days

0

0810

Simplicity 1960581SM

PIN, Spring

$3.99

$

Usually ships in 2-12 days

0

0820

Simplicity 703061

NUT, Keps, 1/4-20

$3.49

$

In Stock, Qty 11

0

0830

Simplicity 5410354AYP

PLATE, Gearbox
(Superseded to 1761106CJYP)

$56.99

$

Usually ships in 2-12 days

0

0840

Simplicity 2860664SM

SCREW, Hex, 1/4-20 X .88

$5.99

$

In Stock, only 2 left!

0

0850

Simplicity 709509

MOTOR, EHOC w/Decal

$439.99

$

In Stock, Qty 9

0

0860

Simplicity 1760433

HARNESS, Mower

$

$

Not available
