1696699-01 - Simplicity 61" Mower Deck 61" Mower Deck - Housing & Arbor Group Parts Diagram

61" Mower Deck

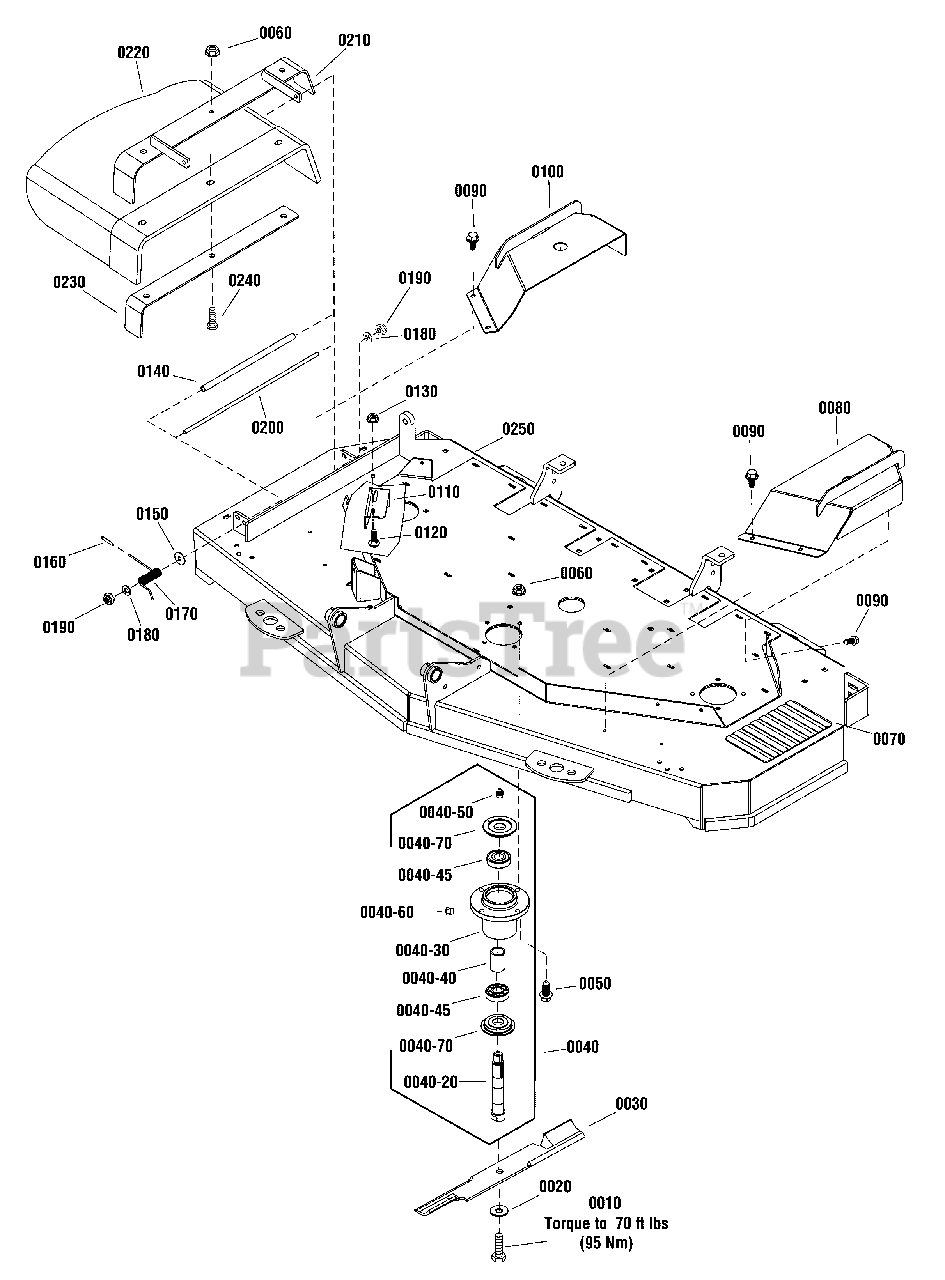

61" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

0010

Simplicity 770136

BOLT, 5/8-11 X 1 3/4, GR 8

$4.49

$

In Stock, Qty 12

0

0020

Simplicity 5025477SM

WASHER, Blade Bolt, 9/16"

$3.99

$

In Stock, Qty 10

0

0030

Simplicity 5101755YP

BLADE, Mower, 21 X .25 X 2.5, 1 X 3 1/2
(Superseded to 5101755BMYP)

$26.99

$

In Stock, only 3 left!

0

0040

Simplicity 5061095SM

SPINDLE ASSEMBLY, Complete (See Spindle Service Parts group)

$222.99

$

In Stock, only 1 left!

0

0040-20

Simplicity 5061098SM

SPINDLE SHAFT

$77.99

$

In Stock, only 1 left!

0

0040-30

Simplicity 5061097SM

SPINDLE HOUSING (SV)
(Superseded to 5102993YP)

$90.99

$

Usually ships in 2-12 days

0

0040-40

Simplicity 5061099SM

SPACER, 1.00 x 1.25 x 1.75

$11.99

$

In Stock, only 4 left!

0

0040-45

Simplicity 5023330SM

BEARING, .98 X 2.44 X .67

$23.99

$

In Stock, Qty 20+

0

0040-50

Simplicity 5023329SM

FITTING, 1/8 NPT STR, Short

$5.49

$

In Stock, only 4 left!

0

0040-60

Simplicity 5023296SM

FITTING, Relief, 1-5 PSI

$7.49

$

In Stock, only 1 left!

0

0040-70

Simplicity 5049793SM

TRASH SHIELD

$16.99

$

In Stock, only 4 left!

0

0050

Simplicity 770137

BOLT, Flange, 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0070

Simplicity 5101005SM

SAFETY WALK, 9.75 X 6.00

$15.99

$

In Stock, only 1 left!

0

0080

Simplicity 1760439CKYP

COVER, Pulley, LH

$170.99

$

Usually ships in 2-12 days

0

0090

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, only 3 left!

0

0100

Simplicity 1760438CKYP

COVER, Pulley, RH

$170.99

$

Usually ships in 2-12 days

0

0110

Simplicity 5401344AYP

PLATE, Deflector

$27.99

$

Usually ships in 2-12 days

0

0120

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0130

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 770138

TUBE, 1/2 X 3/8

$

$

Not available

0150

Simplicity 5025164SM

WASHER, Fender, 5/16

$3.99

$

In Stock, only 1 left!

0

0160

Simplicity 5023489SM

CAP, Protector

$3.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5023385SM

SPRING, Torsion

$8.49

$

Usually ships in 2-12 days

0

0180

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0190

Simplicity 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 11

0

0200

Simplicity 5061300SM

MOUNT, Chute

$13.99

$

In Stock, only 1 left!

0

0210

Simplicity 5404716AYP

FRAME, Chute

$100.99

$

Usually ships in 2-12 days

0

0220

Simplicity 5404834YP

CHUTE, Discharge

$158.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5408018AYP

SUPPORT, Discharge Chute

$20.99

$

Usually ships in 2-12 days

0

0240

Simplicity 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 1 left!

0

0250

Simplicity 1687946

KIT, 61" Mower Deck, w/Decals

$2216.99

$

Usually ships in 2-12 days

0
