1696699-00 - Simplicity 61" Mower Deck 61" Mower Deck - Support & Hitch Group Parts Diagram

61" Mower Deck

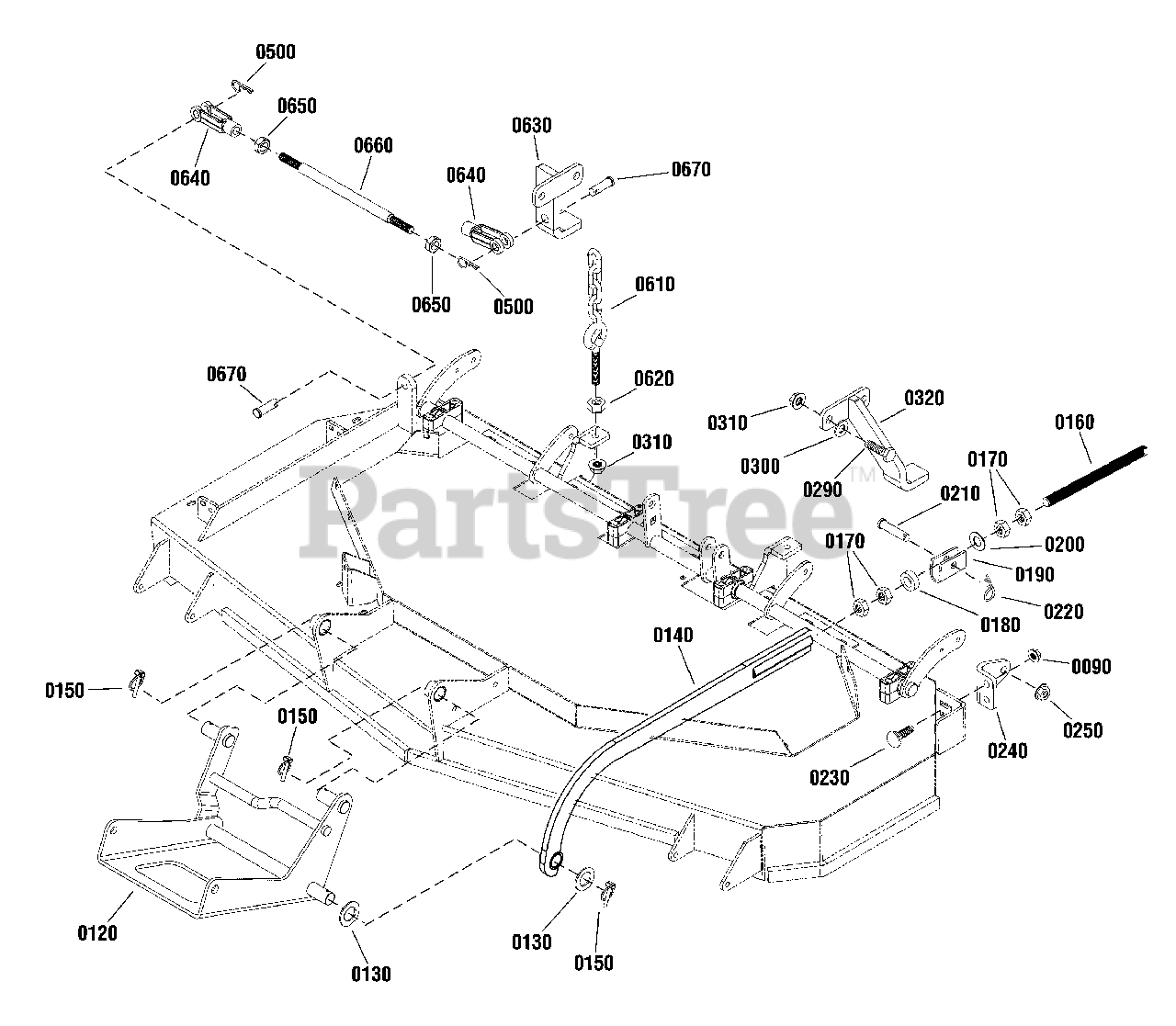

61" Mower Deck - Support & Hitch Group Parts Diagram

  • Title

0090

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 5410342AYP

BUCKET

$378.99

$

In Stock, only 2 left!

0

0130

Simplicity 2860626SM

WASHER, 1

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 5411467AYP

ARM, Pitch

$182.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1709189SM

PIN, Klink

$6.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1722507SM

STUD, 5/8

$34.99

$

Usually ships in 2-12 days

0

0170

Simplicity 703904

NUT, Hex Jam, 5/8-18

$4.99

$

In Stock, Qty 18

0

0180

Simplicity 5102941YP

SPACER

$9.99

$

In Stock, only 1 left!

0

0190

Simplicity 1725201SM

TRUNNION
(Superseded to 1725201ASM)

$19.99

$

In Stock, only 1 left!

0

0200

Simplicity 1960020SM

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0210

Simplicity 1722819SM

PIN, Flat Head

$6.99

$

In Stock, Qty 5

0

0220

Simplicity 1960033SM

PIN, Hair

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 703815

BOLT, Carriage, 3/8-16 x 1

$4.49

$

In Stock, only 4 left!

0

0240

Simplicity 5410356CYP

TAB, Roller Bar

$14.99

$

Usually ships in 2-12 days

0

0250

Simplicity 2860681SM

NUT, Toplock Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

0290

Simplicity 703571

CAPSCREW, Hex Head, 1/2-13 X 1 1/2, GR5

$4.49

$

Usually ships in 2-12 days

0

0300

Simplicity 704123

WASHER

$4.49

$

In Stock, only 3 left!

0

0310

Simplicity 770225

NUT, Nylock Flange, 1/2-13

$3.49

$

In Stock, Qty 20+

0

0320

Simplicity 5410744AYP

DECKSTOP

$51.99

$

Usually ships in 2-12 days

0

0500

Simplicity 703796

PIN, Hair

$5.49

$

In Stock, only 1 left!

0

0610

Simplicity 5104311YP

HANGER, 5 Link

$68.99

$

Usually ships in 2-12 days

0

0620

Simplicity 703340

NUT, Hex, 1/2-13, GR5

$7.99

$

In Stock, only 1 left!

0

0630

Simplicity 5410348AYP

MOUNT, Sway Bar
(Superseded to 1760828CJYP)

$109.99

$

Usually ships in 2-12 days

0

0640

Simplicity 5023174SM

CLEVIS, 1/2-20

$16.99

$

Usually ships in 2-12 days

0

0650

Simplicity 703903

NUT, Hex Jam, 1/2-20

$3.49

$

In Stock, Qty 20+

0

0660

Simplicity 5103815YP

ROD, Deck Stabilizer

$38.99

$

Usually ships in 2-12 days

0

0670

Simplicity 5025328X12SM

PIN, Clevis, 1/2 X 1 1/2

$4.99

$

In Stock, Qty 6

0
