1696684-00 - Murray 46" Mower Deck (2016) 46" Mower Deck - Support Group Parts Diagram

46" Mower Deck

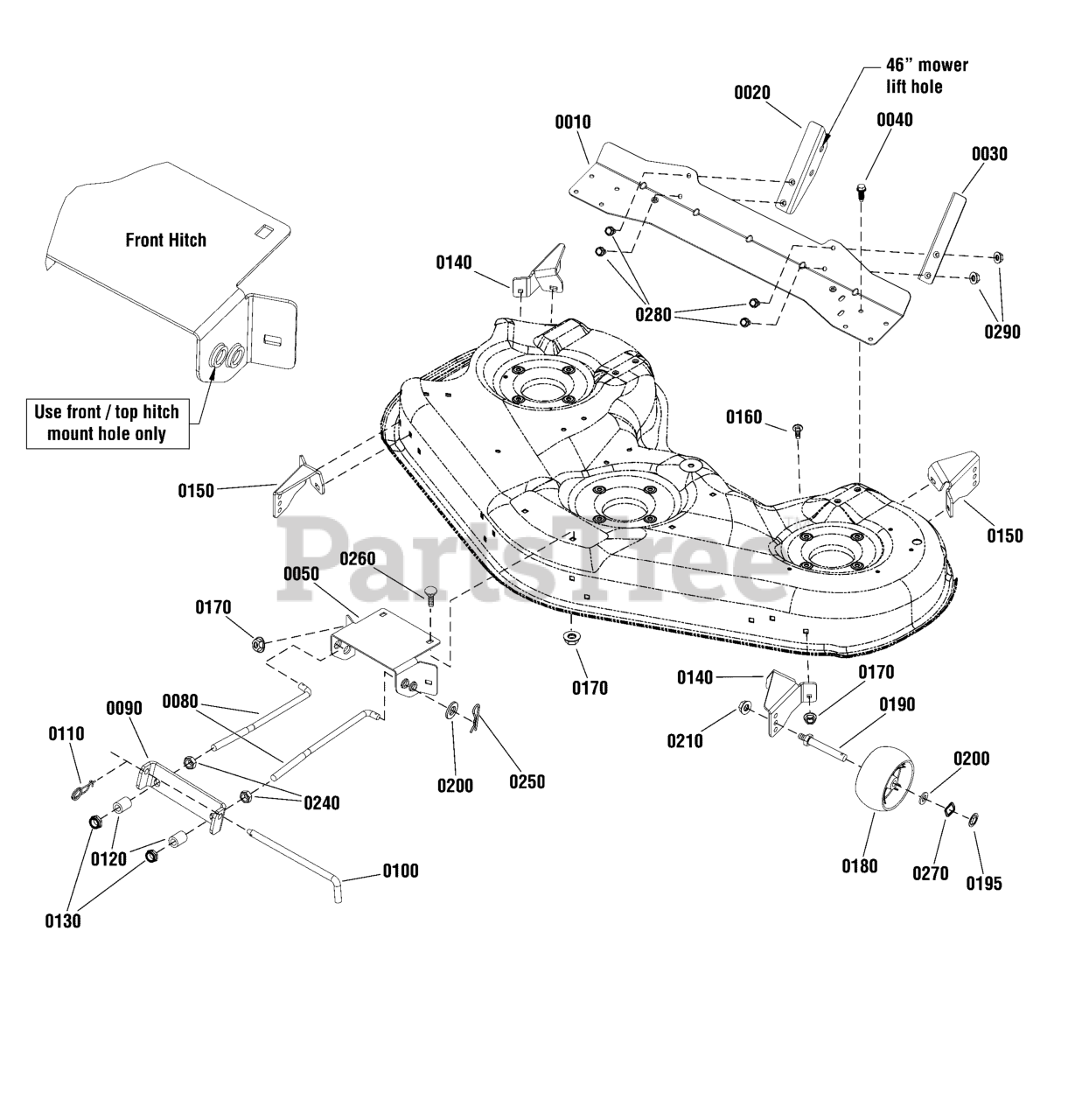

46" Mower Deck - Support Group Parts Diagram

  • Title
0010

Murray 1736070BMYP

SUPPORT, Rear Cross

$82.99

$

Usually ships in 2-12 days

0

0020

Murray 1736072AYP

BRACKET, Rear Mower Pickup

$19.99

$

Usually ships in 2-12 days

0

0030

Murray 1736073AYP

BRACKET, Rear Mower Pickup

$11.99

$

Usually ships in 2-12 days

0

0040

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0050

Murray 1736071BMYP

HITCH, Front

$29.99

$

Usually ships in 2-12 days

0

0080

Murray 1736081YP

ROD, Front Bail

$12.99

$

Usually ships in 2-12 days

0

0090

Murray 1737059AYP

HANGER, Front Mower

$17.99

$

Usually ships in 2-12 days

0

0100

Murray 1731414SM

ROD, Latch, 1/2 x 9

$14.99

$

Usually ships in 2-12 days

0

0110

Murray 703852

PIN, Retainer, 5/16 x 3/8

$4.49

$

In Stock, Qty 20+

0

0120

Murray 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.49

$

In Stock, only 2 left!

0

0130

Murray 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

0140

Murray 1736074BMYP

BRACKET, Gauge Wheel

$15.99

$

In Stock, only 1 left!

0

0150

Murray 1736075BMYP

BRACKET, Gauge Wheel

$14.99

$

In Stock, Qty 14

0

0160

Murray 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 6

0

0170

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0180

Murray 1736896YP

WHEEL, Gauge, .505" ID, 5" OD, 2.58

$16.99

$

In Stock, only 4 left!

0

0190

Murray 1736539

BOLT, 3/8-16X.63, 3.0"X 1/2
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

0195

Murray 705437

PUSHNUT, 1/2

$4.49

$

In Stock, only 2 left!

0

0200

Murray 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0210

Murray 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0240

Murray 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

0250

Murray 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0260

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0270

Murray 0020X3MA

WASHER, Spring

$4.49

$

Usually ships in 2-12 days

0

0280

Murray 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 6

0

0290

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0
