1696684-00 - Murray 46" Mower Deck (2016) 46" Mower Deck - French Guard Group Parts Diagram

46" Mower Deck

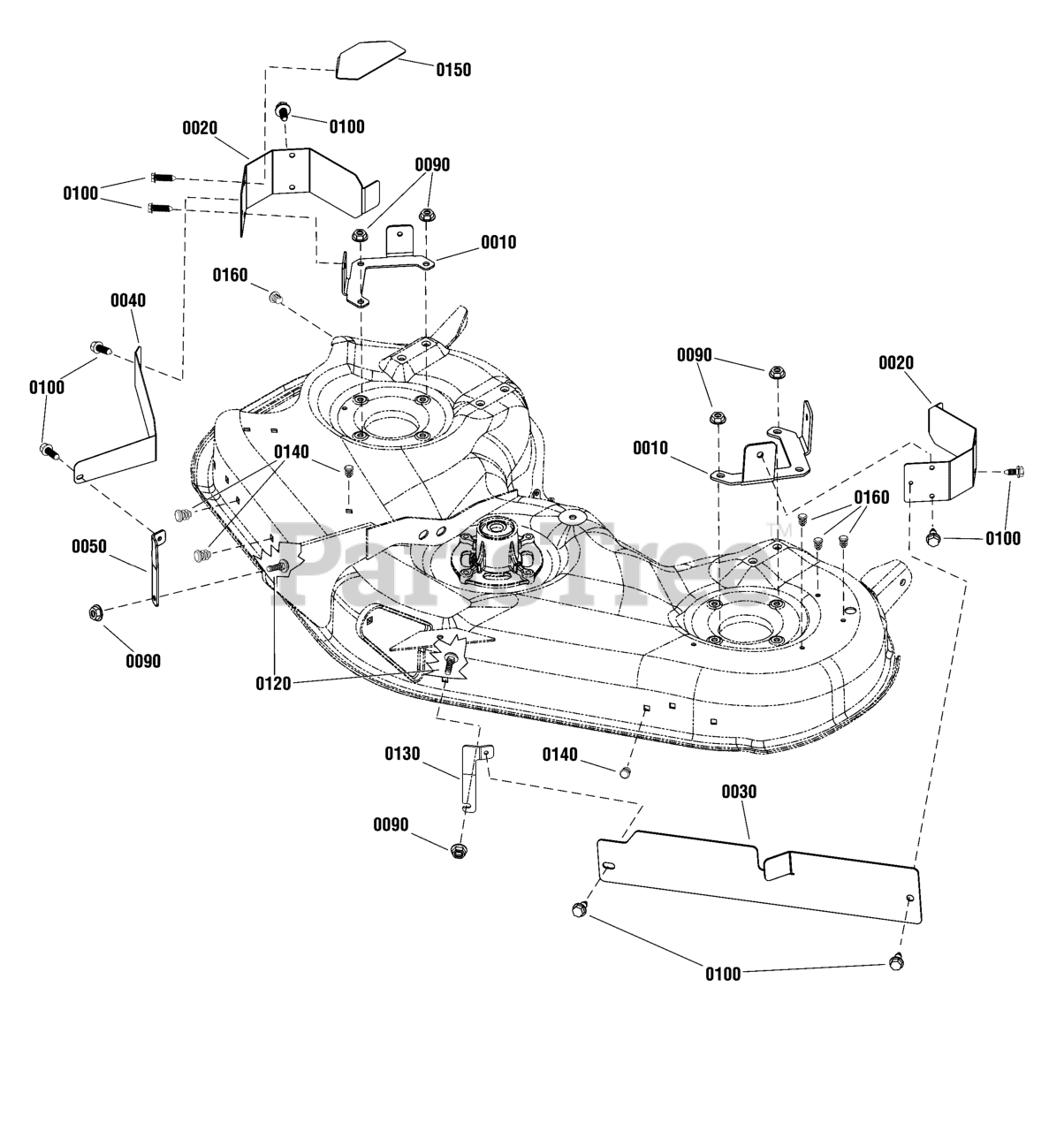

46" Mower Deck - French Guard Group Parts Diagram

  • Title
0010

Murray 1759800CJYP

BRACKET, Spindle

$23.99

$

In Stock, only 1 left!

0

0020

Murray 1759801CJYP

GUARD, Spindle

$39.99

$

Usually ships in 2-12 days

0

0030

Murray TBD

The service part is in development.

$

$

Not available

0040

Murray 1759803CJYP

GUARD, RH

$47.99

$

Usually ships in 2-12 days

0

0050

Murray 1759804CJYP

SUPPORT, Front, RH

$16.99

$

Usually ships in 2-12 days

0

0090

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0100

Murray 703235

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0120

Murray 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0

0130

Murray 1759831CJYP

SUPPORT, Front, LH

$17.99

$

Usually ships in 2-12 days

0

0140

Murray 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0150

Murray 1760023CJYP

COVER, Spindle, RH

$23.99

$

Usually ships in 2-12 days

0

0160

Murray 7073293YP

PLUG, Hole, .30 OD

$2.99

$

Usually ships in 2-12 days

0
