1696681-02 - Snapper 48"/122cm Fab Mower Deck 48" (122cm) Mower Deck - Height Adjustment Group Parts Diagram

48"/122cm Fab Mower Deck

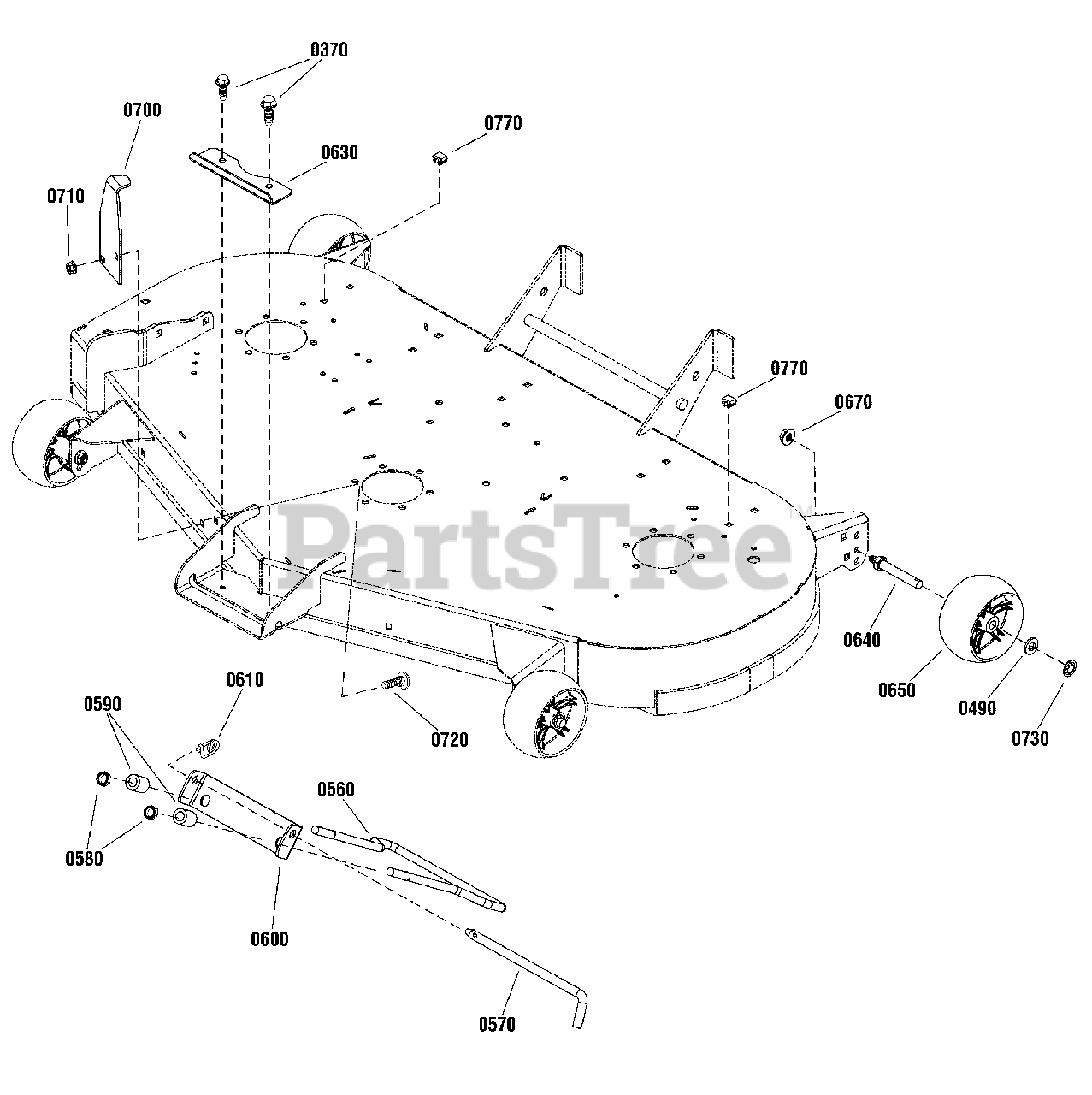

48" (122cm) Mower Deck - Height Adjustment Group Parts Diagram

  • Title

0370

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0490

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0560

Snapper 1730097SM

ROD, Bail, 1/2

$43.99

$

Usually ships in 2-12 days

0

0570

Snapper 1731414SM

ROD, Latch, 1/2

$14.99

$

Usually ships in 2-12 days

0

0580

Snapper 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

0590

Snapper 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.49

$

In Stock, only 2 left!

0

0600

Snapper 1730221BMYP

HANGER, Front

$

$

Not available

0610

Snapper 703852

PIN, Retainer, 5/16 x 3/8

$4.49

$

In Stock, Qty 20+

0

0630

Snapper 1757501BMYP

PLATE, Hitch Rod, Lock

$11.99

$

Usually ships in 2-12 days

0

0640

Snapper 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 1 left!

0

0650

Snapper 1736896YP

WHEEL, Gauge

$16.99

$

In Stock, only 4 left!

0

0670

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0700

Snapper 1757805BMYP

BRACKET, Up Stop

$16.99

$

Usually ships in 2-12 days

0

0710

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0720

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 18

0

0730

Snapper 705437

PUSH NUT, Flat

$4.49

$

In Stock, only 2 left!

0

0770

Snapper 1705115SM

PLUG, Button

$4.49

$

In Stock, only 1 left!

0
