1696681-01 - Snapper 48"/122cm Fab Mower Deck 48" Mower Deck - Clutch & Support Group Parts Diagram
48"/122cm Fab Mower Deck

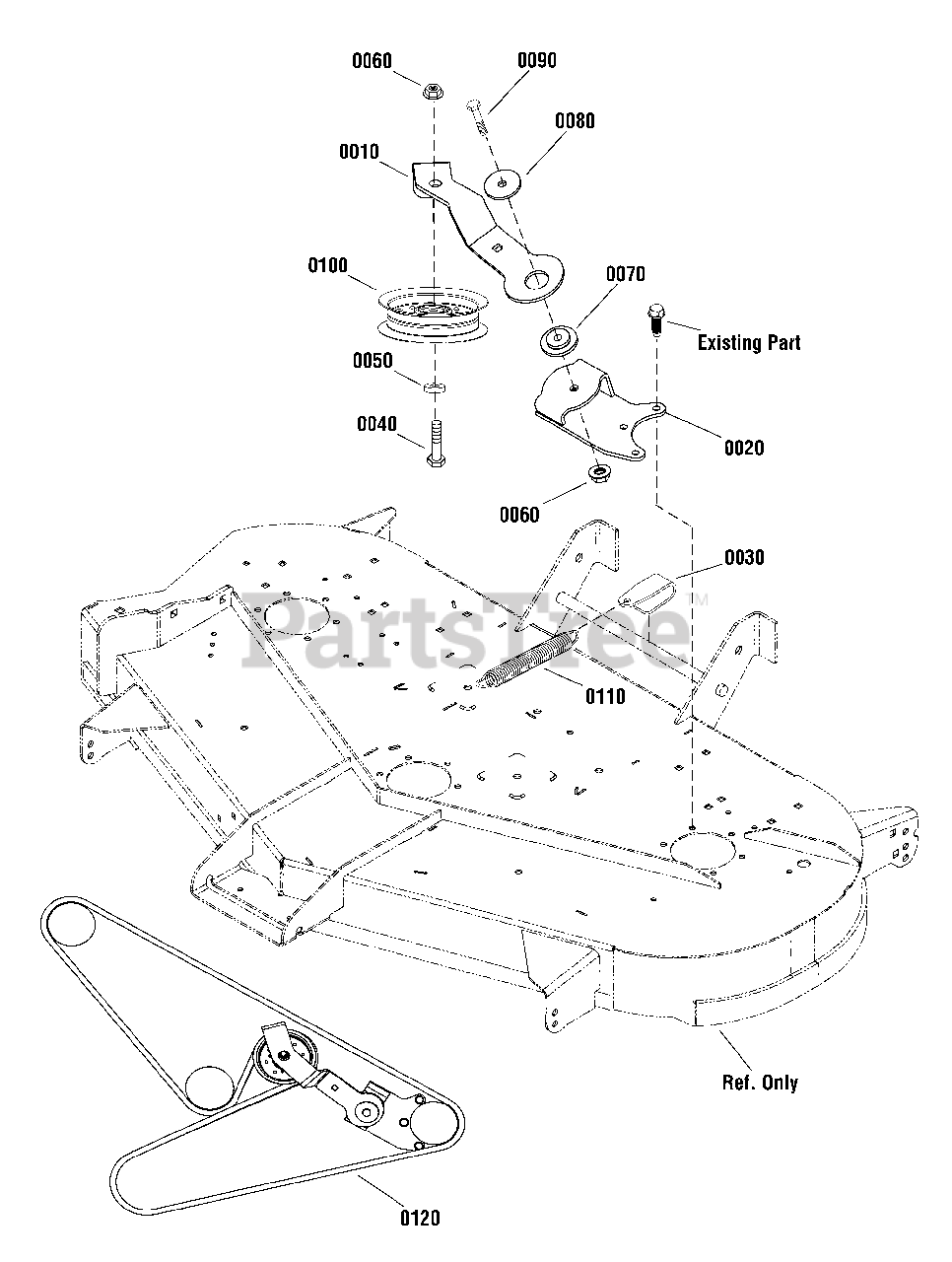

48" Mower Deck - Clutch & Support Group Parts Diagram
Snapper 1760441CJYP
ARM, Idler
$49.99
$
Usually ships in 2-12 days
Snapper 1760209CJYP
BASE, Idler Arm
$46.99
$
Usually ships in 2-12 days
Snapper 1760464CJYP
CLIP, Spring
$16.99
$
Usually ships in 2-12 days
Snapper 703589
CAPSCREW, HexHead, 3/8-16 X 2, GR5
$4.49
$
In Stock, only 1 left!
Snapper 703346
SPACER
$9.99
$
Usually ships in 2-12 days
Snapper 703158
NUT, Hex Flange, 3/8-16
$3.49
$
Usually ships in 2-12 days
Snapper 706128
SPACER, Idler
$6.99
$
In Stock, only 4 left!
Snapper 5025305SM
WASHER
$3.99
$
In Stock, only 2 left!
Snapper 703871
CAPSCREW, Hex Head, 3/8-16 X 1 1/4
$4.99
$
Usually ships in 2-12 days
Snapper 1757823YP
PULLEY, Idler, Backside
$22.99
$
In Stock, Qty 14
Snapper 1715435SM
SPRING, Extension
$9.49
$
In Stock, Qty 20+
Snapper 1760516YP
V-BELT
$92.99
$
In Stock, only 1 left!
